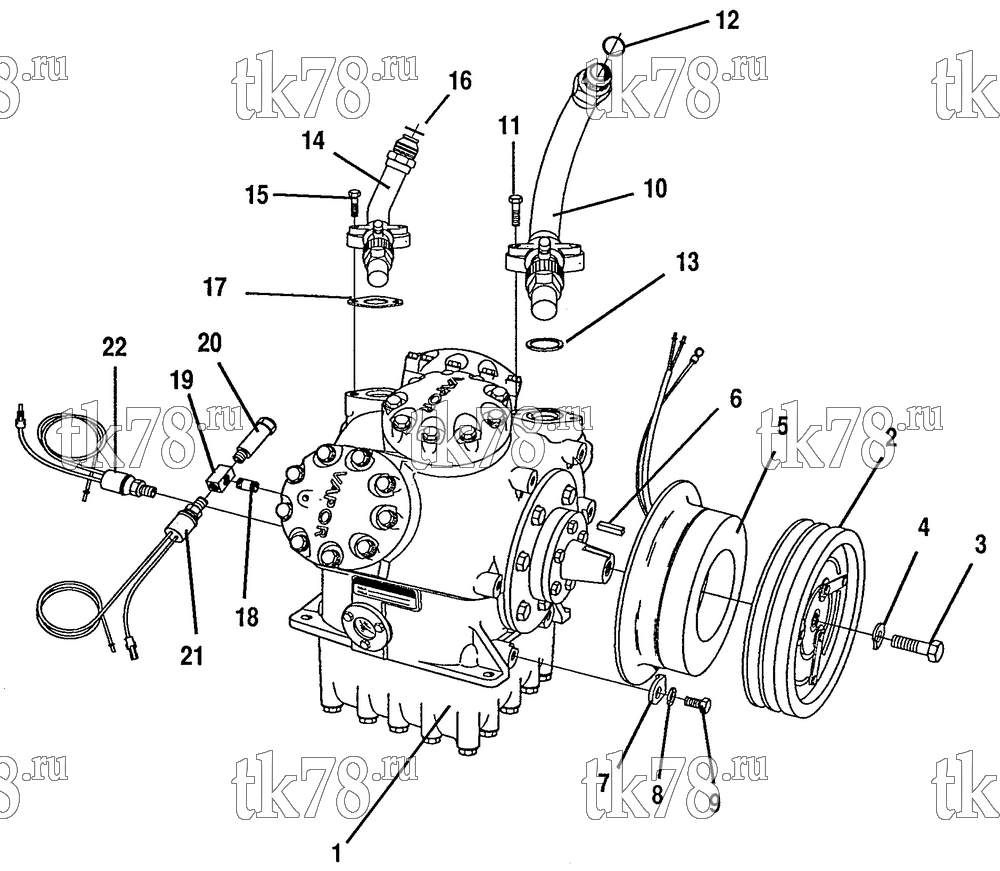

Установкa Thermo King VRT-2 System схема COMPRESSOR – 99B1
Обновление от: 3/6/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 302-140 | COMPRESSOR | 1 | ||
| 1 | 302-140 | COMPRESSOR | 1 | |
| 2 | 307-173 | CLUTCH - 2 groove | 1 | |
| 3 | 305-492 | SCREW (cap, hh) | 1 | |
| 4 | 305-1367 | FLATWASHER - notched | 1 | |
| 5 | 304-1025 | COIL - clutch (24VDC) | 1 | |
| 6 | 305-333 | KEY | 1 | |
| 7 | 309-671 | RETAINER - clutch coil | 6 | |
| 8 | 55-375 | LOCKWASHER | 6 | |
| 9 | 55-329 | SCREW (cap, hh) | 6 | |
| 10 | 66-7007 | VALVE & TUBE - suction | 1 | |
| 11 | 55-4794 | SCREW (cap, hh) | 2 | |
| 12 | 303-289 | O-RING - suction fitting | 1 | |
| 13 | 303-700 | GASKET - suction service valve | 1 | |
| 14 | 66-7009 | VALVE & TUBE - discharge | 1 | |
| 15 | 55-3674 | SCREW (cap, hh) | 2 | |
| 16 | 303-245 | O-RING - discharge fitting | 1 | |
| 17 | 33-2805 | GASKET - discharge service valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 18 | 305-352 | NIPPLE - pipe | 1 | |
| 19 | 55-6048 | TEE (brass) | 1 | |
| 20 | 60-248 | KIT - valve | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 66-9162 | ADAPTER | 1 | ||
| 21 | 304-1838 | SWITCH - high pressure | 1 | |
| 22 | 304-1056 | SWITCH - low pressure | 1 |
