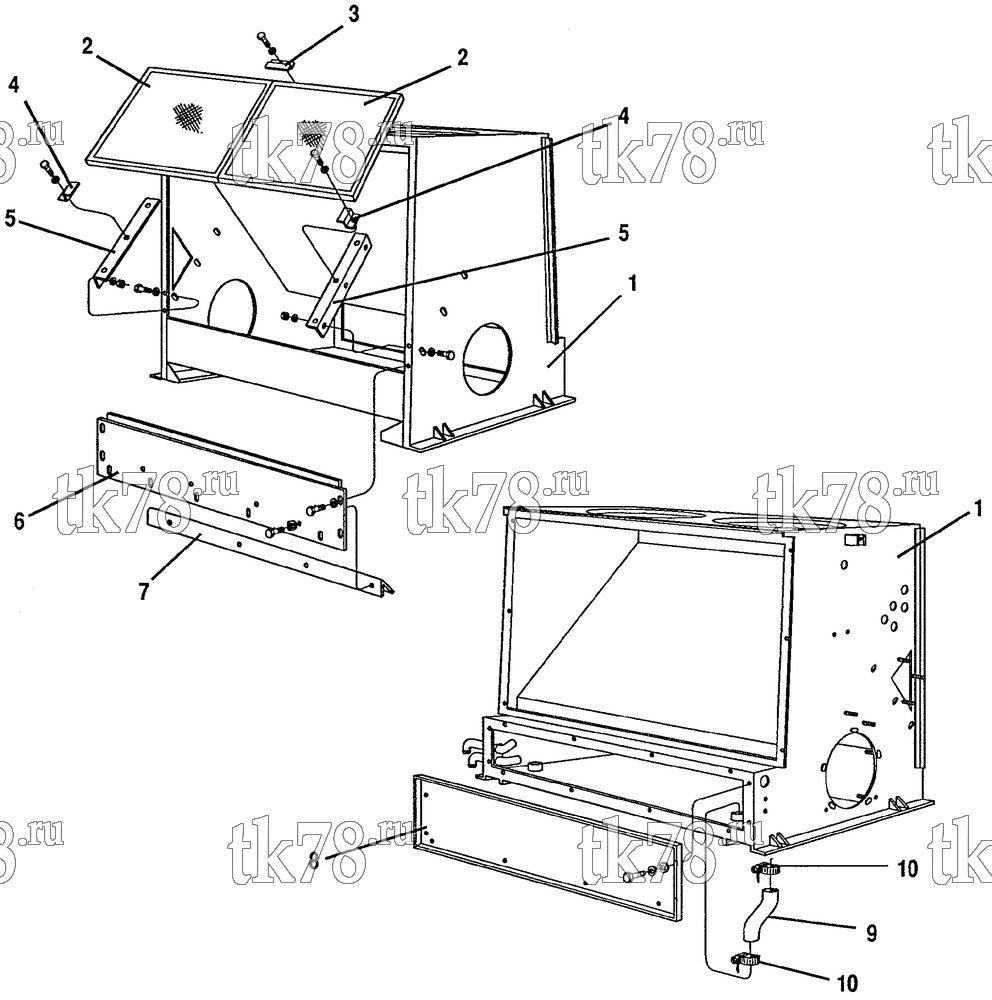

Установкa Thermo King VRT-2 System схема UNIT CASING – 99A6
Обновление от: 12/5/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 309-1695 | HOUSING - condenser/evaporator | 1 | |
| 2 | 91-6666 | FILTER - air (disposable, incl frame & pad) | 2 | |
| 309-860 | FRAME - wire only | A/R | ||
| 91-6667 | PAD - replacement | A/R | ||
| 3 | 309-182 | BRACKET - filter retainer | 1 | |
| 4 | 309-677 | RETAINER - filter | 2 | |
| 5 | 309-1629 | BRACKET - evaporator & heater coil support | 2 | |
| 6 | 309-1630 | PANEL - evaporator/heater coil access | 1 | |
| 7 | 309-1631 | BAFFLE - air (evaporator coil) | 1 | |
| 8 | 309-1696 | PANEL - evaporator motor access | 1 | |
| 9 | 301-626 | HOSE - condenser housing drain | 2 | |
| 10 | 55-3401 | CLAMP - hose | 4 |
