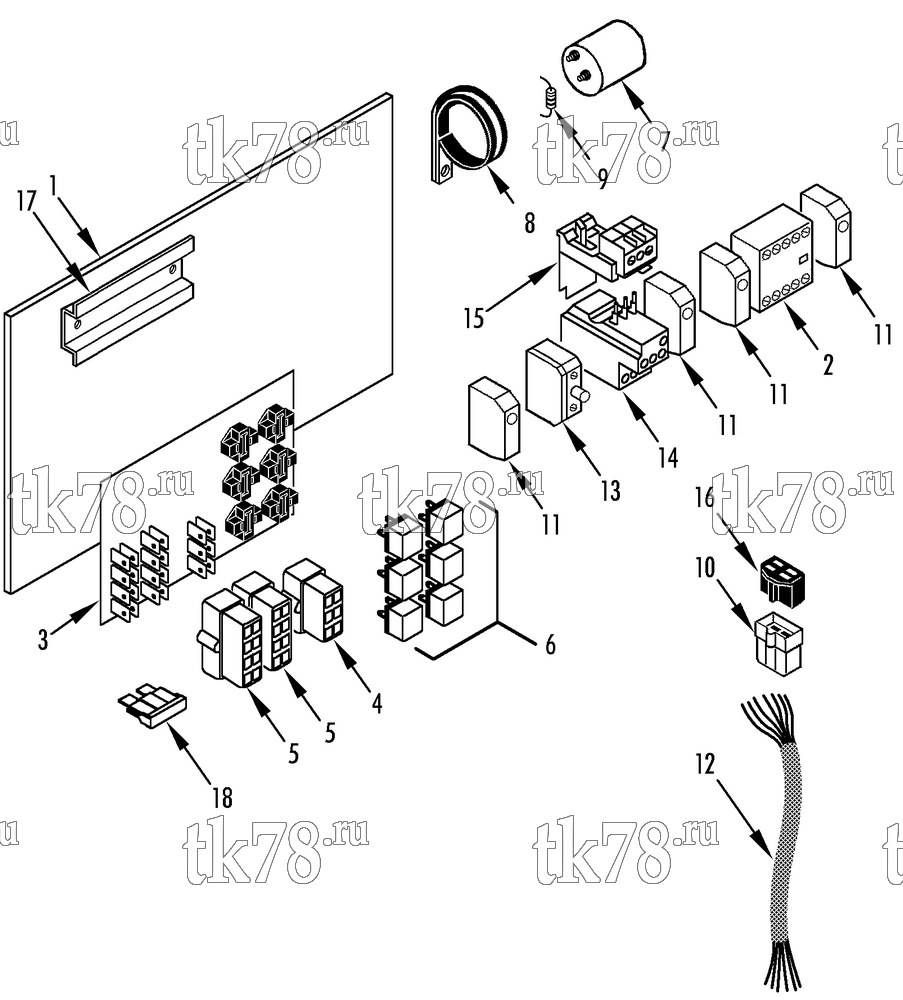

Установкa Thermo King VM-400 10 & 20 схема CONTROL BOX (VM-400 20) – 155F3
Обновление от: 5/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-923 | BRACKET - control box | 1 | |
| 55-8227 | SCREW - bracket (M4 x 20) | 6 | ||
| 55-7340 | SCREW - bracket (M5 x 10) | 1 | ||
| 55-7404 | LOCKWASHER | 10 | ||
| 2 | 42-271 | CONTACTOR (12V) | 1 | |
| 41-1005 | CONTACTOR (24V) | 1 | ||
| 3 | 41-4259 | BOARD - printed circuit (VM-400 12V, 24V) | 1 | |
| 41-4258 | BOARD - printed circuit (N9.2, VM-400 12V) | 1 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-6996 | LOCKWASHER | |||
| 55-7354 | NUT | 8 | ||
| 4 | 41-876 | CONNECTOR (6-pin) | 2 | |
| 5 | 41-946 | CONNECTOR (8-pin) | 2 | |
| 6 | 41-895 | RELAY (12V) | 6 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 6 | ||
| 7 | 41-3787 | KIT - capacitor | 1 | |
| 41-2992 | CAPACITOR (24V) | 1 | ||
| 41-3787 | CAPACITOR (3300 mf) | 2 | ||
| 41-3134 | JUMPER - capacitor | 1 | ||
| 8 | 91-7168 | CLAMP - capacitor | 1 | |
| 55-8550 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 9 | 41-947 | RESISTOR | 1 | |
| 10 | 41-928 | CONNECTOR - plug (4-pin) | 2 | |
| 11 | 41-898 | CONNECTOR - end | 4 | |
| 12 | 41-3131 | HARNESS - control box | 1 | |
| 41-4099 | HARNESS - condenser (w/ pcb N9.2) | 1 | ||
| 13 | 41-942 | CONNECTOR - fuse | 1 | |
| 41-3661 | FUSE (4 amp) | 1 | ||
| 14 | 41-3135 | RELAY - overload | 1 | |
| 41-3097 | RELAY - overload (4 to 6.3 amp, 380/3/50) | 1 | ||
| 15 | 41-3099 | SOCKET - circuit breaker | 1 | |
| 16 | 41-905 | CONNECTOR - socket (4-pin) | 1 | |
| 17 | 92-924 | CHANNEL - din | 1 | |
| 18 | 44-9758 | FUSE (10 amp) | 2 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-2978 | FUSE (20 amp) | 1 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 41-1259 | FUSE (25 amp) | 1 | ||
|
10-41-1259 | Предохранитель 25 ампер 10 шт | 1 860 ₽ |
|
