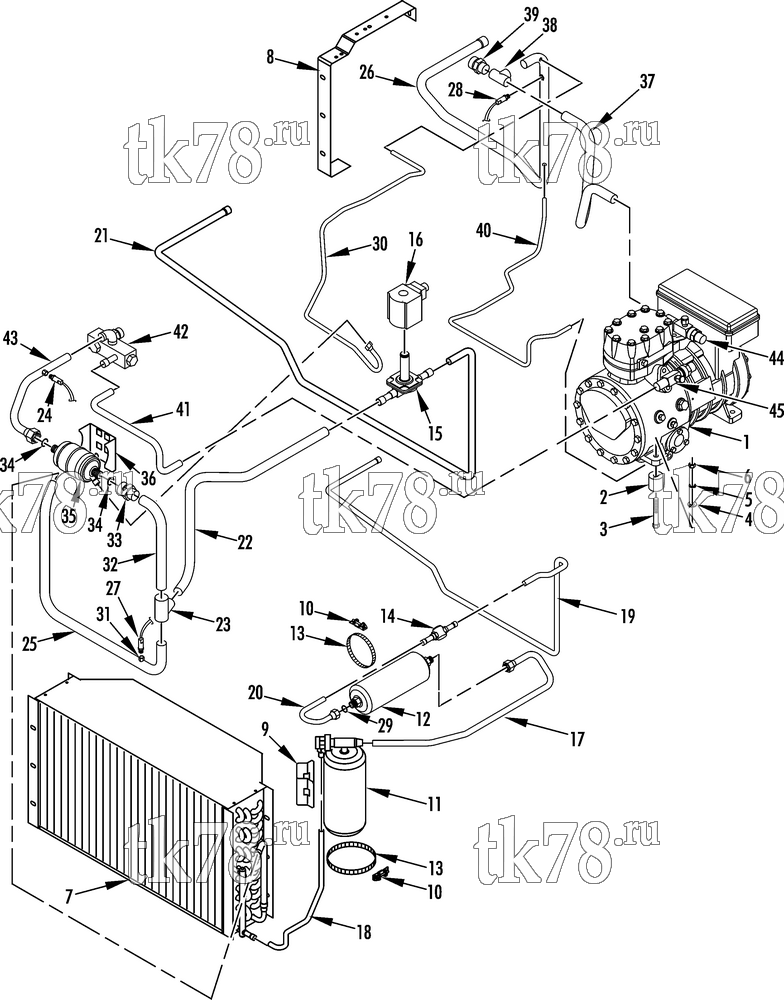

Установкa Thermo King VM-400 10 & 20 схема REFRIGERATION GROUP (VM-400 20) – 155E11
Обновление от: 8/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-722 | COMPRESSOR (D2 11) | 1 | |
| 102-678 | COMPRESSOR (50 hz, R134a B1.5) | 1 | ||
| 102-729 | COMPRESSOR (60 hz, R134a, B1.5) | 1 | ||
| 41-6450 | BOX - junction | 1 | ||
| 41-901 | MODULE - control | 1 | ||
| 203-513 | OIL - compressor | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 2 | 51-173 | SPACER - compressor support | 4 | |
| 3 | 55-7660 | SCREW - compressor | 4 | |
| 4 | 55-7085 | FLATWASHER | 4 | |
| 5 | 55-8577 | WASHER - special | 4 | |
| 6 | 55-7006 | NUT | 4 | |
| 7 | 67-1585 | COIL - condenser | 1 | |
| 55-7172 | SCREW - coil | 6 | ||
| 55-8893 | FLATWASHER | 9 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7354 | NUT | 3 | ||
| 8 | 92-918 | BRACKET - condenser coil | 1 | |
| 55-7035 | SCREW - bracket | 3 | ||
| 55-8893 | WASHER - fender | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 9 | 91-9986 | SUPPORT - receiver tank | 1 | |
| 55-7340 | SCREW - support | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 10 | 91-9987 | CLAMP - tank | 3 | |
| 11 | 67-1798 | TANK - receiver | 1 | |
| 12 | 66-8471 | DEHYDRATOR | 1 | |
|
14-00326-03 OEM | Дегидратор, Supra/Xarios | 5 870 ₽ |
|
|
P-14-00326-03 | Дегидратор, Supra/Xarios | 2 820 ₽ |
|
|
PP-14-00326-03 | Дегидратор, Supra/Xarios | 1 300 ₽ |
|
| 13 | 55-9486 | BAND - clamp | 1 | |
| 14 | 61-4565 | INDICATOR - liquid | 1 | |
| 15 | 66-7878 | BODY - solenoid | 1 | |
| 16 | 41-5047 | COIL - solenoid (12V) | 1 | |
| 41-5051 | COIL - valve (24V) | 1 | ||
| 55-8720 | SCREW - coil | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 17 | 61-713 | TUBE - receiver tank to dehydrator | 1 | |
| 55-9009 | NUT - o-ring | 1 | ||
| 55-9286 | SHOULDER - o-ring | 1 | ||
| 18 | 61-712 | TUBE - condenser coil to receiver | 1 | |
| 19 | 66-9968 | TUBE - sight glass to evaporator | 1 | |
| 20 | 66-9969 | TUBE - dehydrator to sight glass | 1 | |
| 55-9009 | NUT - o-ring | 1 | ||
| 55-9286 | SHOULDER - o-ring | 1 | ||
| 21 | 66-9970 | TUBE - solenoid to evaporator | 1 | |
| 22 | 61-709 | TUBE - tee to solenoid | 1 | |
| 23 | 55-2181 | TEE | 1 | |
| 24 | 44-7991 | SWITCH - hpco (condenser fan) | 1 | |
| 25 | 61-711 | TUBE - tee to condenser coil | 1 | |
| 26 | 61-716 | TUBE - evaporator to compressor | 1 | |
| 27 | 44-7992 | SWITCH - hpco | 1 | |
| 28 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 29 | 33-1015 | O-RING (3/8 id) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 30 | 61-717 | TUBE - oil separator to suction tube | 1 | |
| 55-9618 | NUT - o-ring | 1 | ||
| 61-415 | SHOULDER - o-ring seal | 1 | ||
| 31 | 61-439 | ADAPTER - hpco | 1 | |
| 32 | 61-710 | TUBE - oil separator to tee | 1 | |
| 33 | 61-469 | NUT - adapter (o-ring seal) | 1 | |
| 61-470 | SHOULDER - o-ring seal | 1 | ||
| 34 | 33-566 | O-RING | 2 | |
| 35 | 66-8549 | SEPARATOR - oil (see 152D11) | 1 | |
| 61-415 | SHOULDER - o-ring | 1 | ||
| 36 | 92-919 | BRACKET - oil separator | 1 | |
| 55-7340 | SCREW - bracket | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 37 | 61-715 | TUBE - tee to compressor | 1 | |
| 38 | 55-904 | TEE | 1 | |
| 39 | 55-9619 | ADAPTER - o-ring seal | 1 | |
| 40 | 61-714 | TUBE - compressor oil equalizer | 1 | |
| 55-9618 | NUT - o-ring seal | 1 | ||
| 41 | 61-718 | TUBE - compressor to check valve | 1 | |
| 42 | 61-3023 | VALVE - discharge check valve (see 130B4) | 1 | |
| 43 | 61-719 | TUBE - check valve to oil separator | 1 | |
| 44 | 61-342 | VALVE - suction | 1 | |
| 45 | 61-343 | VALVE - discharge | 1 |
