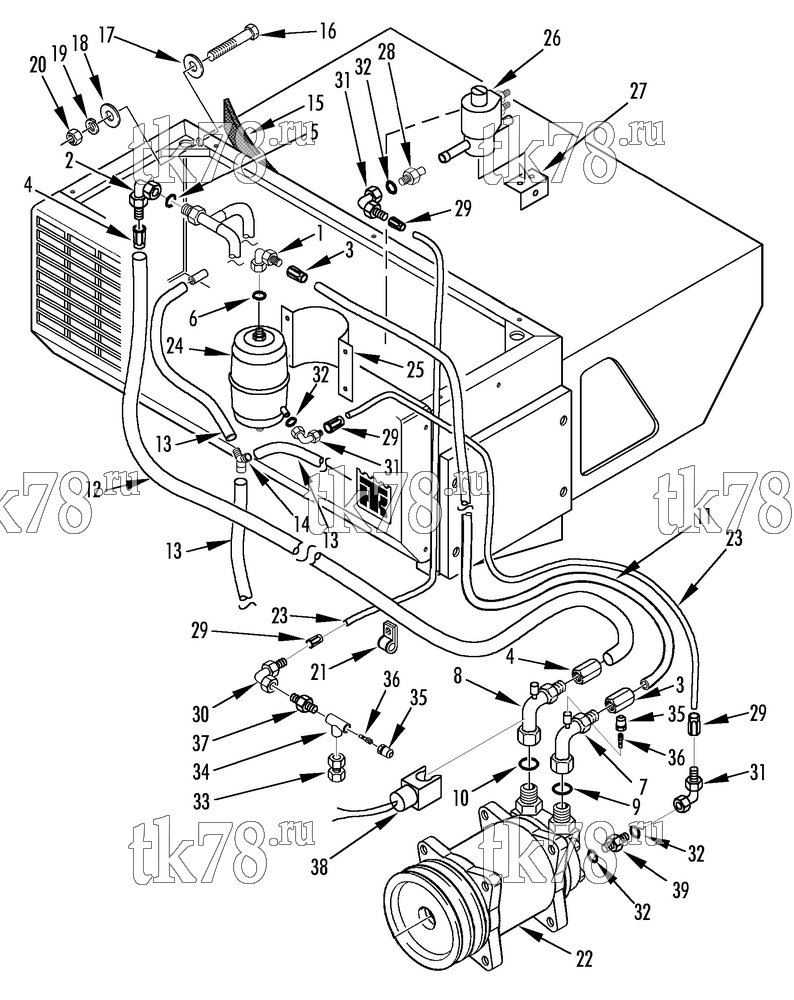

Установкa Thermo King VM-305 MAX BIT 270mm & VM-305 MAX BIT SLE схема INSTALLATION GROUP (w/ JET COOL & JET TUBE) – 154E6
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-8336 | FITTING - elbow (discharge, #8) | 1 | |
| 2 | 55-8337 | FITTING - elbow (suction, #12) | 1 | |
| 3 | 55-8160 | FITTING - sleeve (#8) | 2 | |
| 4 | 55-8167 | FITTING - sleeve (#12) | 2 | |
| 5 | 33-2115 | O-RING (#10) | 1 | |
| 6 | 33-566 | O-RING (#8) | 1 | |
| 7 | 55-8816 | FITTING - elbow (#8, discharge) | 1 | |
| 8 | 55-8338 | FITTING - elbow (suction, #12) | 1 | |
| 9 | 33-2694 | O-RING (#8) | 1 | |
| 10 | 33-2695 | O-RING (#10) | 1 | |
| 11 | 67-944 | HOSE (#8) | 1 | |
| 12 | 12-685 | HOSE (#12) | 1 | |
| 13 | 11-9222 | HOSE - drain | 1 | |
| 14 | 55-9258 | CONNECTOR - hose | 1 | |
| 15 | 33-2660 | STRIP - seal | 3 | |
| 16 | 55-8534 | SCREW - unit | 4 | |
| 17 | 55-8584 | WASHER - special | 4 | |
| 18 | 55-8585 | FLATWASHER | 4 | |
| 19 | 55-8537 | LOCKWASHER | 4 | |
| 20 | 55-7348 | NUT | 2 | |
| 21 | 92-1690 | CLAMP (50/15) | 2 | |
| 91-6692 | CLAMP (45/15) | 2 | ||
| 91-6690 | CLAMP (22/15) | 2 | ||
| 55-8434 | SCREW - clamp | 12 | ||
| 22 | 102-1012 | COMPRESSOR - 16XD (12V, 5.3 in, incl 2A clutch) | 1 | |
| 102-585 | COMPRESSOR (24V) | 1 | ||
| 22-992 | MANIFOLD - compressor | 1 | ||
|
10-22-992 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 23 | 11-9066 | HOSE - jet lube (#4) | 1 | |
| 24 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 25 | 91-6404 | BRACKET - oil separator | 1 | |
| 55-7340 | SCREW - bracket | 4 | ||
| 55-9826 | FLATWASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 26 | 66-5908 | VALVE - pilot solenoid (12V) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 66-7071 | VALVE - pilot solenoid (24V) | 1 | ||
| 44-6158 | COIL | 1 | ||
| 55-9276 | SCREW - valve | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 27 | 91-9614 | BRACKET - liquid injection valve | 1 | |
| 28 | 55-9923 | FITTING - liquid | 1 | |
| 29 | 55-8176 | FITTING - sleeve (1/4) | 4 | |
| 30 | 55-9513 | FITTING - elbow (1/4) | 1 | |
| 31 | 55-8158 | FITTING - elbow (#4) | 3 | |
| 32 | 33-1461 | O-RING | 4 | |
| 33 | 55-9116 | ADAPTER - double nut | 1 | |
| 34 | 55-9115 | TEE | 1 | |
| 35 | 66-8183 | CAP - Schrader valve | 2 | |
| 36 | 66-8312 | VALVE (Schrader) | 2 | |
| 37 | 66-5029 | ORIFICE | 1 | |
| 38 | 44-9020 | THERMOSTAT | 1 | |
| 39 | 55-8778 | ADAPTER - compressor oil (#4) | 1 |
