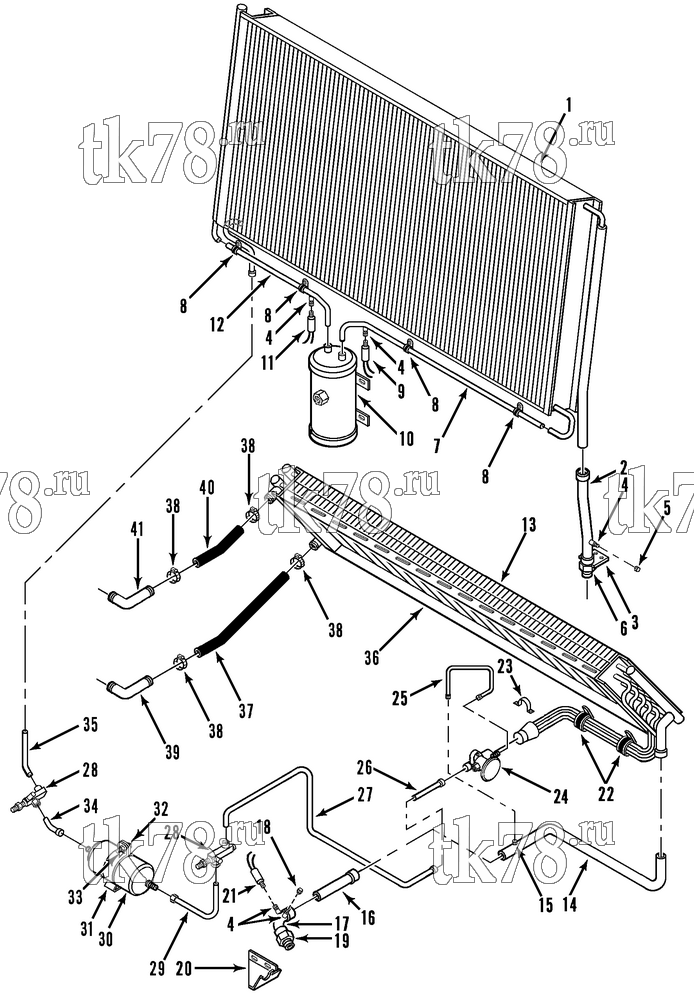

Установкa Thermo King V7-M1, M2, M3, M4, M5, M6 & DH7 M1, M2 схема REFRIGERATION COMPONENTS (M1, M2, M4, M5, M6) – 95D4
Обновление от: 8/1/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-990 | COIL - condenser | 1 | |
| 55-1587 | SCREW | 16 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-4953 | NUT | 4 | ||
| 2 | 66-6103 | TUBE - discharge | 1 | |
| 3 | 91-3323 | PLATE - support (discharge tube) | 1 | |
| 4 | 66-6221 | VALVE - core | 5 | |
| 5 | 11-7777 | CORE - valve | 1 | |
| 6 | 305-111 | ADAPTER | 1 | |
| 7 | 66-6104 | TUBE - condenser to receiver | 4 | |
| 8 | 55-570 | CLAMP | 4 | |
| 55-2991 | SCREW | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 9 | 304-756 | SWITCH - hpco | 1 | |
| 10 | 306-343 | RECEIVER - liquid | 1 | |
| 306-854 | SIGHT GLASS (1.875 in dia) | 1 | ||
| 303-354 | O-RING (for 306-854) | 1 | ||
| 66-6612 | SIGHT GLASS (1.250 in dia) | 1 | ||
| NSS | GASKET (teflon, for 66-6612) | 1 | ||
| 55-1587 | SCREW | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 11 | 304-749 | SWITCH - condenser fan | 1 | |
| 12 | 66-6105 | TUBE - liquid line to receiver | 1 | |
| 13 | 67-993 | COIL - evaporator | 1 | |
| 14 | 66-6106 | TUBE - suction | 1 | |
| 15 | 66-874 | ADAPTER | 1 | |
| 16 | 66-6107 | TUBE - suction | 1 | |
| 17 | 66-6108 | ELBOW | 1 | |
| 18 | 306-877 | CAP | 1 | |
| 19 | 305-120 | ADAPTER | 1 | |
| 20 | 91-3324 | BRACKET - suction | 1 | |
| 303-209 | GROMMET | 1 | ||
| 55-2977 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 21 | 44-9005 | SWITCH - lpco | 1 | |
| 22 | 55-4552 | CLAMP | 2 | |
| 55-1587 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-3059 | NUT | 2 | ||
| 23 | 305-230 | CLAMP | 1 | |
| 24 | 306-628 | VALVE - expansion | 1 | |
| 66-6178 | ELEMENT - power (valve) | 1 | ||
| 66-6193 | CAGE - valve | 1 | ||
| 25 | 66-6109 | TUBE - equalizer | 1 | |
| 26 | 66-6110 | TUBE | 1 | |
| 27 | 66-6111 | TUBE - expansion valve to shutoff valve | 1 | |
| 303-207 | GROMMET | 1 | ||
| 28 | 66-6112 | VALVE - shutoff | 2 | |
| 306-115 | CAP - shutoff valve | 1 | ||
| 55-1983 | CAP - port | 1 | ||
| 309-591 | NAMEPLATE - Caution, High Pressure | 1 | ||
| 29 | 66-6113 | TUBE - dehydrator to shutoff valve | 1 | |
| 30 | 66-1723 | DRIER | 1 | |
| 31 | 305-196 | CLAMP - dehydrator | 1 | |
| 55-1587 | SCREW | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 32 | 55-2979 | SCREW | 1 | |
| 55-2086 | FLATWASHER | 1 | ||
| 33 | 55-4953 | NUT | 1 | |
| 34 | 66-6114 | TUBE | 1 | |
| 35 | 66-6115 | TUBE | 1 | |
| 36 | 67-987 | COIL - heater | 1 | |
| 37 | 301-223 | HOSE - inlet (17.25 in) | A/R | |
| 38 | 55-3401 | CLAMP - hose | 4 | |
| 39 | 66-6116 | TUBE - inlet | 1 | |
| 303-219 | GROMMET | 1 | ||
| 40 | 301-223 | HOSE - outlet (6.00 in) | A/R | |
| 41 | 66-6117 | TUBE - outlet | 1 | |
| 303-219 | GROMMET | 1 |
