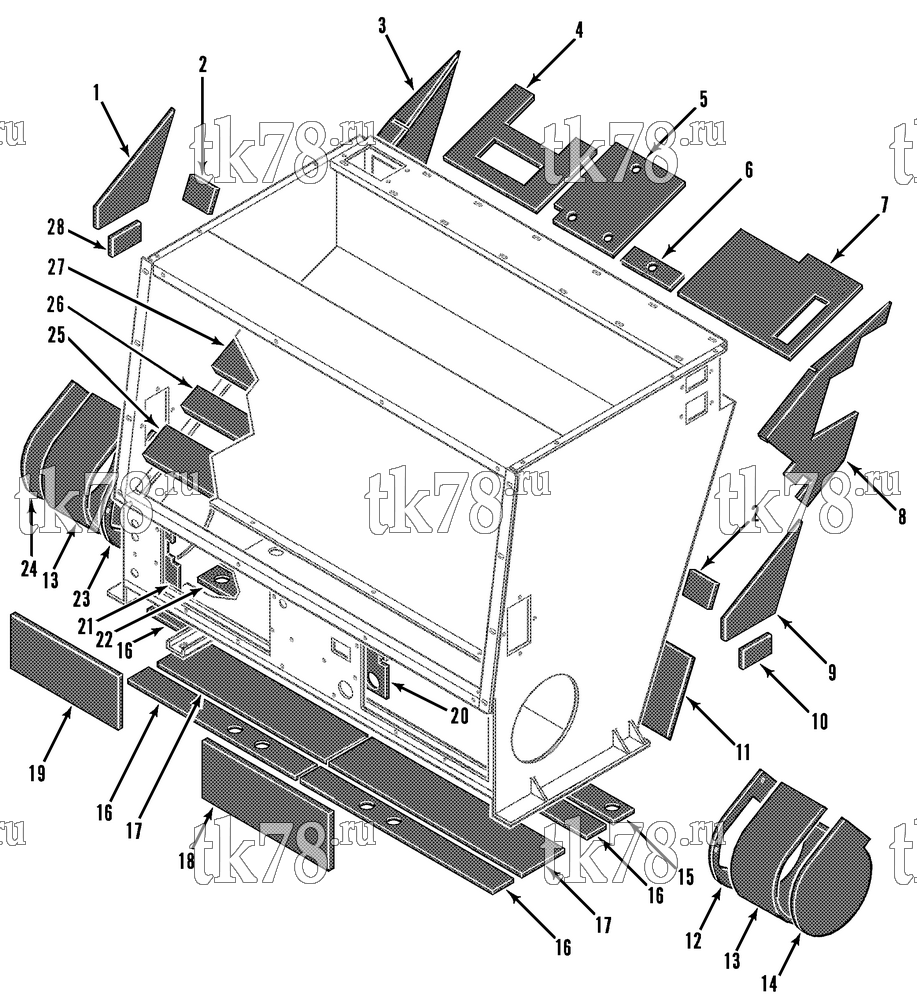

Установкa Thermo King V7-M1, M2, M3, M4, M5, M6 & DH7 M1, M2 схема INSULATION GROUP – 95D13
Обновление от: 10/31/91
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3295 | INSULATION | 1 | |
| 2 | 91-3296 | INSULATION | 2 | |
| 3 | 91-3297 | INSULATION (M1, M2, M3, M4) | 1 | |
| 91-3419 | INSULATION (M5, M6) | 1 | ||
| 4 | 91-3298 | INSULATION | 1 | |
| 5 | 91-3299 | INSULATION - exhaust (vertical) | 1 | |
| 6 | 91-3300 | INSULATION | 1 | |
| 7 | 91-3301 | INSULATION - exhaust (vertical, M1, M2, M3, M4) | 1 | |
| 91-3420 | INSULATION (M5, M6) | 1 | ||
| 8 | 91-3302 | INSULATION - exhaust (vertical) | 1 | |
| 9 | 91-3303 | INSULATION | 1 | |
| 10 | 91-3304 | INSULATION | 1 | |
| 11 | 91-3305 | INSULATION | 1 | |
| 12 | 91-3317 | INSULATION - blower housing (curbside) | 1 | |
| 33-2213 | GASKET | 1 | ||
| 13 | 91-3307 | INSULATION - blower housing | 2 | |
| 14 | 91-3308 | INSULATION - blower housing (curbside) | 1 | |
| 15 | 91-3309 | INSULATION | 1 | |
| 16 | 91-3310 | INSULATION | 4 | |
| 17 | 91-3311 | INSULATION | 2 | |
| 18 | 91-3312 | INSULATION - access panel (curbside) | 1 | |
| 19 | 91-3313 | INSULATION - access panel (roadside) | 1 | |
| 20 | 91-3314 | INSULATION | 1 | |
| 21 | 91-3315 | INSULATION | 1 | |
| 22 | 91-3316 | INSULATION | 1 | |
| 23 | 91-3306 | INSULATION - access panel (roadside) | 1 | |
| 33-2213 | GASKET | 1 | ||
| 24 | 91-3318 | INSULATION - blower housing (roadside) | 1 | |
| 25 | 91-3319 | INSULATION - center panel (bottom) | 1 | |
| 26 | 91-3320 | INSULATION - center panel (middle) | 1 | |
| 27 | 91-3321 | INSULATION - center panel (top) | 1 | |
| 28 | 91-3322 | INSULATION | 1 |
