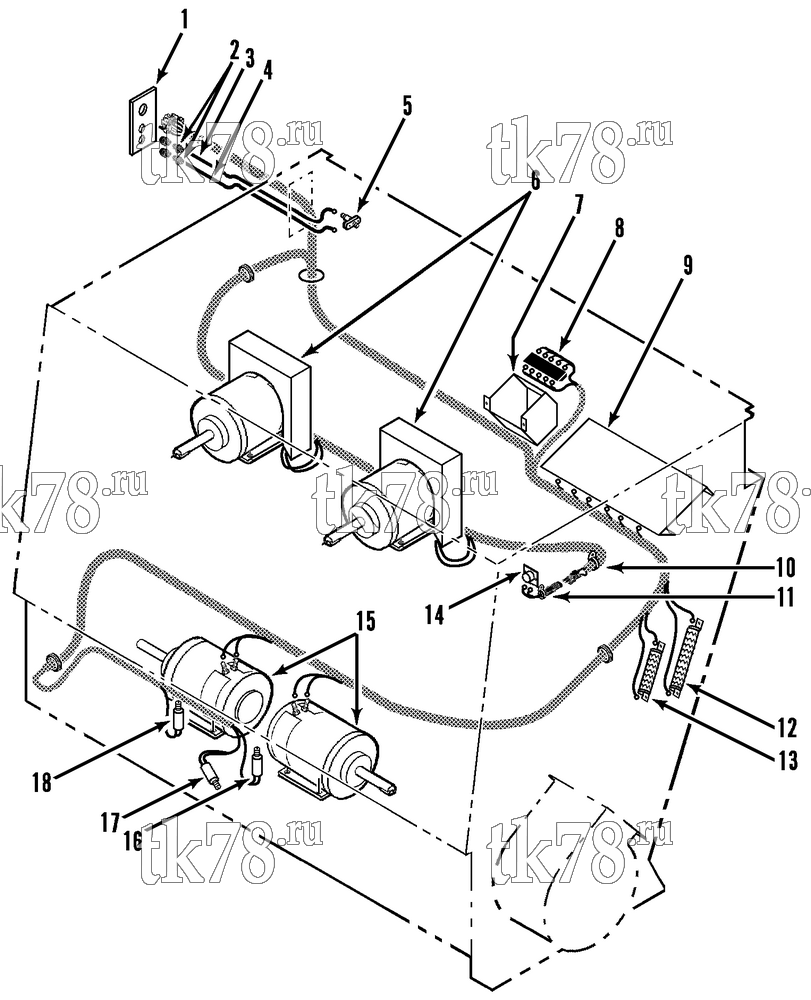

Установкa Thermo King V7-M1, M2, M3, M4, M5, M6 & DH7 M1, M2 схема ELECTRICAL COMPONENTS (M3) – 101F14
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-3341 | PANEL - access (connector) | 1 | |
| 55-1587 | SCREW | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 2 | 55-6288 | CONNECTOR - liquid tite | 2 | |
| 3 | 44-9212 | CABLE - battery (red) | 1 | |
| 4 | 44-9213 | CABLE - battery (black) | 1 | |
| 5 | 304-128 | BLOCK - junction | 1 | |
| 6 | 104-532 | MOTOR - condenser (M3) | 2 | |
| 55-8477 | STUD | 4 | ||
| 44-9329 | INSULATOR | 4 | ||
| 44-9330 | INSULATOR | 4 | ||
| 77-2064 | CLAMP - bearing | 1 | ||
| 77-2011 | BEARING (commutator end) | 1 | ||
| 77-2010 | BEARING (opposite commutator end) | 1 | ||
| 91-3521 | COVER - brush | 2 | ||
| 33-2236 | GASKET - brush cover | 2 | ||
| 91-3524 | FRAME | 1 | ||
| 91-3522 | COVER (field end) | 1 | ||
| 91-3523 | COVER (brush end) | 1 | ||
| 44-8968 | BRUSH RING | 1 | ||
| 41-328 | BRUSHES | 2 | ||
| 41-330 | HOLDER - brush | 2 | ||
| 44-9331 | ARMATURE | 1 | ||
| 77-2065 | FAN | 1 | ||
| 33-2237 | SLINGER | 1 | ||
| 55-7195 | KEY | 1 | ||
| 7 | 304-862 | THERMOSTAT (M3) | 1 | |
| 8 | 44-9228 | HARNESS (M3) | 1 | |
| 9 | 98-4018 | PANEL - control (see 95D11) | 1 | |
| 10 | 305-234 | CLAMP | 2 | |
| 55-3561 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 11 | 305-178 | CLAMP | 1 | |
| 55-3561 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 12 | 304-649 | RESISTOR - condenser motor | 1 | |
| 13 | 304-648 | RESISTOR - evaporator motor | 1 | |
| 14 | 304-817 | SWITCH - ambient temperature | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 91-3340 | BRACKET - switch (ambient) | 1 | ||
| 55-3022 | SCREW - switch to bracket | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-4223 | NUT | 2 | ||
| 15 | 104-531 | MOTOR - evaporator (M3) | 2 | |
| 44-9329 | INSULATOR | 4 | ||
| 44-9330 | INSULATOR | 4 | ||
| 77-2064 | CLAMP - bearing | 1 | ||
| 77-2011 | BEARING (commutator end) | 1 | ||
| 77-2010 | BEARING (opposite commutator end) | 1 | ||
| 91-3521 | COVER - brush | 2 | ||
| 33-2236 | GASKET - brush cover | 2 | ||
| 91-3525 | FRAME | 1 | ||
| 91-3522 | COVER (field end) | 1 | ||
| 91-3523 | COVER (brush end) | 1 | ||
| 44-8969 | BRUSH RING | 1 | ||
| 41-353 | BRUSHES | 2 | ||
| 44-9332 | ARMATURE | 1 | ||
| 77-2065 | FAN | 1 | ||
| 33-2237 | SLINGER | 1 | ||
| 16 | 304-756 | SWITCH - hpco | 1 | |
| 17 | 44-9005 | SWITCH - lpco | 1 | |
| 18 | 304-749 | SWITCH - condenser fan | 1 |
