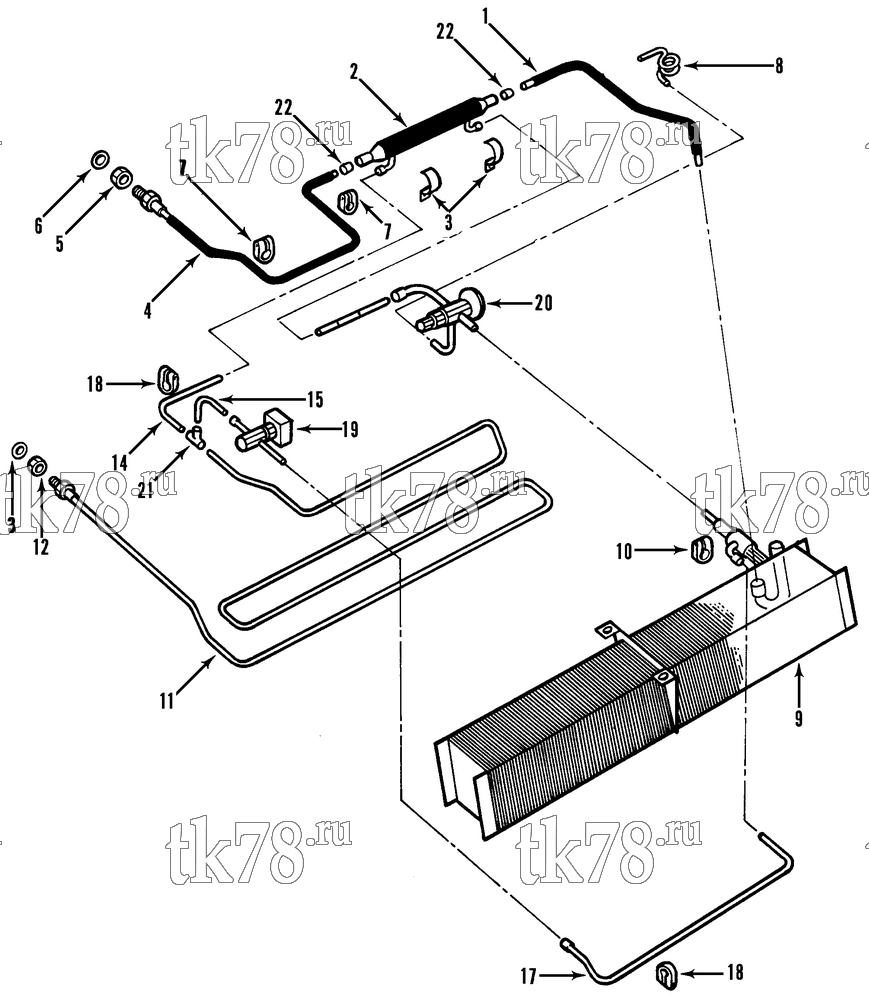

Установкa Thermo King V Series схема E1400 EVAPORATOR REFRIGERATION COMPONENTS – 138C6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-8630 | TUBE - suction | 1 | |
| 2 | 67-351 | HEAT EXCHANGER | 1 | |
| 3 | 91-6949 | CLAMP - heat exchanger | 2 | |
| 55-6994 | SCREW - clamp | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 4 | 66-8631 | TUBE - suction (o-ring seal) | 1 | |
| 5 | 55-6812 | NUT | 1 | |
| 6 | 33-1222 | O-RING (3/4) | 1 | |
| 7 | 91-372 | CLAMP - tube (3/4) | 2 | |
| 55-7739 | SCREW | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 8 | 66-8023 | TUBE - equalizer | 1 | |
| 9 | 67-1407 | COIL - evaporator | 1 | |
| 10 | 91-758 | CLAMP - tube (5/8) | 1 | |
| 55-8316 | SCREW | 1 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 11 | 66-8632 | TUBE - bulkhead/drainpan/tee | 1 | |
| 12 | 55-6780 | NUT | 1 | |
| 13 | 33-1015 | O-RING (3/8) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 14 | 66-8633 | TUBE - tee to heat exchanger | 1 | |
| 15 | 66-8533 | TUBE - liquid (tee to solenoid valve) | 1 | |
| 16 | 66-8634 | TUBE - liquid (heat exchanger to expansion valve) | 1 | |
| 17 | 66-8635 | TUBE - solenoid valve to distributor | 1 | |
| 18 | 91-2686 | CLAMP - tube | 2 | |
| 55-7372 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 1 | ||
| 19 | 66-8021 | VALVE - defrost solenoid (see 138B12) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 20 | 66-7868 | VALVE - expansion | 1 | |
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-5336 | ELEMENT - power | 1 | ||
| 21 | 55-3251 | TEE | 1 | |
| 22 | 55-6387 | BUSHING | 2 |
