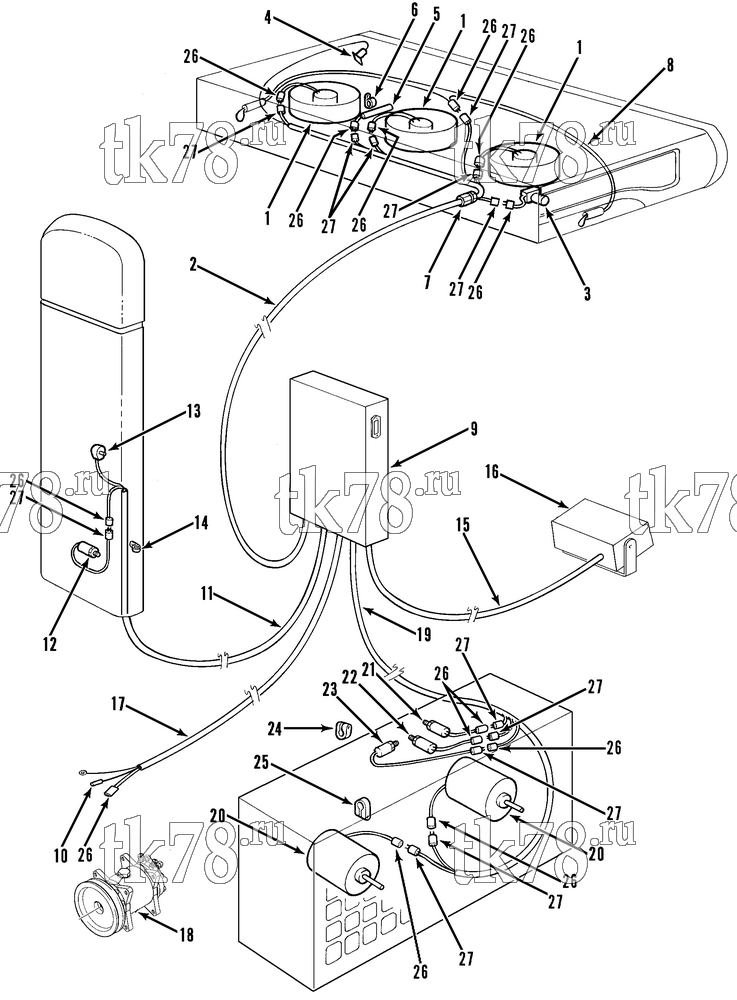

Установкa Thermo King V Series схема ELECTRICAL COMPONENTS – 128E9
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-724 | BLOWER - evaporator (24VDC) | 3 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 44-5835 | CONNECTOR (2-pin, male) | 1 | ||
| 2 | 41-1335 | HARNESS - E1400 (units w/ internal sensor location) | 1 | |
| 41-1759 | HARNESS - E1400 (units w/ external sensor location) | 1 | ||
| 41-1336 | HARNESS - E1000 (units w/ internal sensor location) | 1 | ||
| 41-1758 | HARNESS - E1000 (units w/ external sensor location) | 1 | ||
| 3 | 66-8021 | VALVE - defrost solenoid (see 138B12) | 1 | |
| 4 | 44-3292 | THERMOSTAT - defrost termination | 1 | |
| 41-1337 | HARNESS - thermostat | 1 | ||
| 33-257 | GROMMET - thermostat harness | 1 | ||
| 5 | 41-1338 | SENSOR | 1 | |
| 6 | 55-5294 | CLAMP - sensor | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 7 | 33-2750 | GASKET - cable | 1 | |
| 55-7870 | NUT | 1 | ||
| 33-2556 | WASHER - sealing | 1 | ||
| 8 | 41-1339 | HARNESS - heater defrost drain | 1 | |
| 9 | NSS | BOX - control (see 128E7) | 1 | |
| 10 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 11 | 41-1334 | HARNESS - pak | 1 | |
| 12 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 13 | 66-7071 | VALVE - pilot solenoid | 1 | |
| 44-6158 | COIL | 1 | ||
| 55-8786 | NUT - valve | 1 | ||
| 14 | 55-546 | CLAMP (1/4 dia) | 3 | |
| 55-7089 | FLATWASHER | 3 | ||
| 55-7370 | LOCKWASHER | 3 | ||
| 55-7367 | NUT | 3 | ||
| 15 | 41-2592 | HARNESS - in-cab box | 1 | |
| 16 | 45-1614 | BOX - control (in cab) | 1 | |
| 17 | 41-1340 | HARNESS - compressor to relays | 1 | |
| 18 | 102-1013 | COMPRESSOR - 16XD (see 133F14) | 1 | |
|
10-TM-16-24 | Компрессор, TM-16, 24V 2A, R134A/R404A | 22 740 ₽ |
|
| 22-993 | MANIFOLD - compressor | 1 | ||
| 19 | 41-1341 | HARNESS - condenser assembly | 1 | |
| 20 | 41-436 | MOTOR (1/6hp, 28V, see 87D1) | 2 | |
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 44-5835 | CONNECTOR (2-pin, male) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 21 | 41-307 | SWITCH - condenser fan high pressure | 1 | |
| 22 | 44-7991 | SWITCH - condenser fan low pressure | 1 | |
| 23 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 24 | 99-3281 | MOUNT - cable tie | 3 | |
| 55-2264 | RIVET - blind | 3 | ||
| 55-2330 | BANDWRAP | 3 | ||
| 25 | 55-6388 | CLAMP - tube | 1 | |
| 55-7615 | SCREW - clamp | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7034 | NUT | 1 | ||
| 26 | 44-5835 | CONNECTOR (2-pin, male) | A/R | |
| 27 | 44-5838 | CONNECTOR - tower (2-pin) | A/R |
