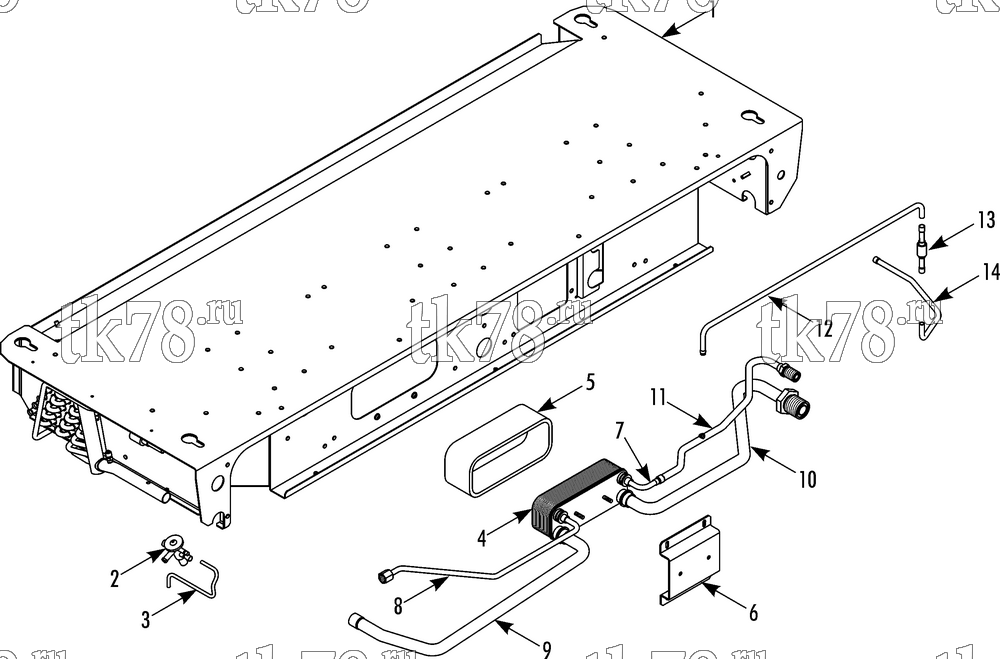

Установкa Thermo King V-800 Series DSR схема EVAPORATOR REFRIGERATION (ES800, 30 & 50 units) – 270E2
Обновление от: 5/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2480 | COIL - evaporator | 1 | |
| 55-8375 | NUT - captive | 12 | ||
| 2 | 61-975 | VALVE - expansion (R404A) | 1 | |
| 203-534 | TAPE - insulating | A/R | ||
| 3 | 61-6141 | TUBE - equalizer | 1 | |
| 4 | 61-2527 | HEAT EXCHANGER | 1 | |
| 5 | 33-3444 | INSULATION - heat exchanger | 1 | |
| 6 | 92-9948 | BRACKET - heat exchanger | 1 | |
| 51-2508 | NUT | 2 | ||
| 7 | 61-6512 | TUBE - liquid (joint to exchanger) | 1 | |
| 55-1804 | BUSHING | 1 | ||
| 8 | 61-6514 | TUBE - liquid (exchanger to expansion valve) | 1 | |
| 51-344 | NUT - expansion valve | 1 | ||
| 9 | 61-6515 | TUBE - suction (evaporator to exchanger) | 1 | |
| 10 | 61-6517 | TUBE - suction (exchanger to bulkhead) | 1 | |
| 51-338 | FITTING - suction (#16) | 1 | ||
| 11 | 61-5079 | TUBE - bulkhead to exchanger | 1 | |
| 12 | 61-5080 | TUBE - joint to check valve | 1 | |
| 13 | 61-412 | VALVE - check | 1 | |
| 14 | 61-6518 | TUBE - serpentine tube to valve | 1 |
