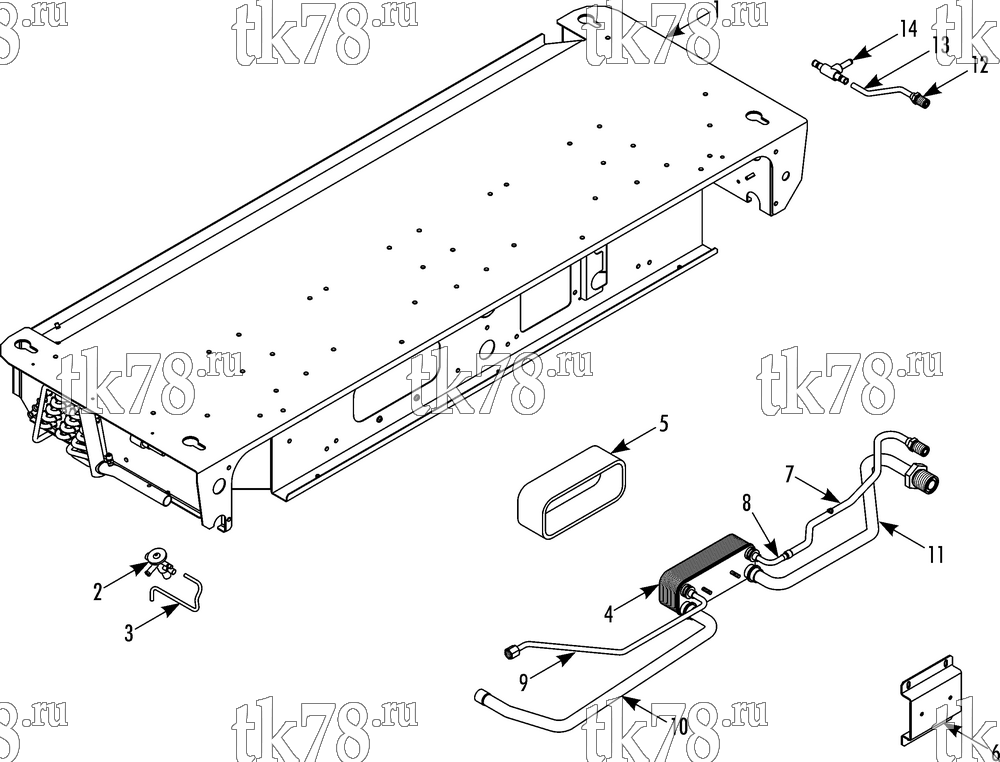

Установкa Thermo King V-800 Series DSR схема EVAPORATOR REFRIGERATION (ES800, 10 & 20 units) – 270D3
Обновление от: 5/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2480 | COIL - evaporator | 1 | |
| 55-8375 | NUT - captive | 12 | ||
| 2 | 61-975 | VALVE - expansion (R404A) | 1 | |
| 66-9311 | BODY - expansion valve (R134a) | 1 | ||
| 61-2091 | FILTER - valve (R134a) | 1 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 3 | 61-6141 | TUBE - equalizer (R404A) | 1 | |
| 61-6511 | TUBE - equalizer (R134a) | 1 | ||
| 4 | 61-2527 | HEAT EXCHANGER | 1 | |
| 5 | 33-3444 | INSULATION - heat exchanger | 1 | |
| 6 | 92-9948 | BRACKET - heat exchanger | 1 | |
| 51-2508 | NUT | 2 | ||
| 7 | 61-5085 | TUBE - liquid (10 & 20 units only, bulkhead to joint) | 1 | |
| 8 | 61-6512 | TUBE - liquid (joint to exchanger) | 1 | |
| 55-1804 | BUSHING | 1 | ||
| 9 | 61-6513 | TUBE - liquid (exchanger to expansion valve, R404A) | 1 | |
| 61-6514 | TUBE - liquid (exchanger to expansion valve, R134a) | 1 | ||
| 51-344 | NUT - expansion valve (R134a) | 1 | ||
| 10 | 61-6515 | TUBE - suction (evaporator to exchanger) | 1 | |
| 11 | 61-6517 | TUBE - suction (exchanger to bulkhead) | 1 | |
| 51-338 | FITTING - suction (#16) | 1 | ||
| 12 | 61-434 | FITTING - hot gas (#6) | 1 | |
| 13 | 61-5473 | TUBE - hot gas (fitting to valve) | 1 | |
| 14 | 61-6110 | VALVE - solenoid (hot gas, see 269A7) | 1 |
