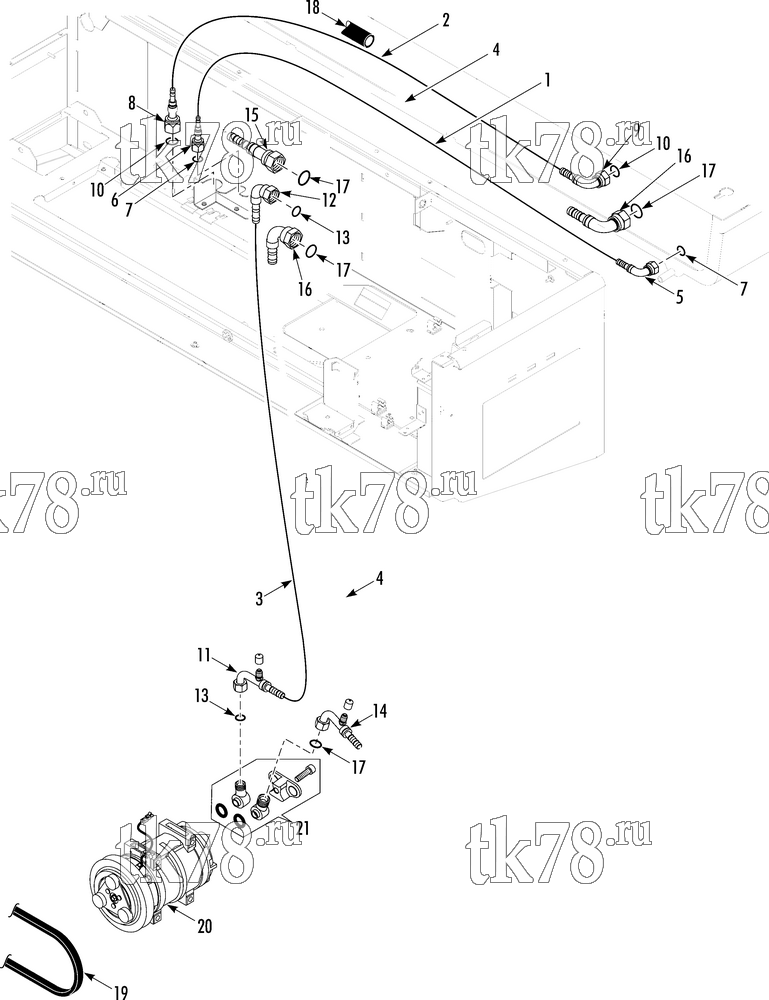

Установкa Thermo King V-800 Series DSR схема COMPRESSOR HOSE CONNECTIONS – 270D2
Обновление от: 9/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1708 | HOSE - hot gas (#6, 300 ft 10 & 20 units) | A/R | |
| 2 | 67-1709 | HOSE - liquid (#8, 300 ft) | A/R | |
| 3 | 61-637 | HOSE - discharge (#10 x 50 ft) | A/R | |
| 67-1710 | HOSE - discharge (#10, 300 ft) | A/R | ||
| 4 | 61-3048 | HOSE - suction (#16, 30 ft) | A/R | |
| 5 | 51-2436 | FITTING - 90 deg (10 & 20 units, o-ring seal, #6 hose) | 1 | |
| 6 | 51-2482 | FITTING - straight (10 & 20 units, o-ring seal, #6 hose) | 1 | |
| 7 | 33-1015 | O-RING (10 & 20 units, #6 3/8 id) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 51-2441 | FITTING - straight (o-ring seal, #8 hose) | 1 | |
| 9 | 51-2423 | FITTING - hose (90 deg, #8) | 1 | |
| 10 | 33-566 | O-RING (o-ring seal, #8 hose) | 2 | |
| 11 | 51-2469 | FITTING - 90 deg (w/ 7/16-20 charging port, #10) | 1 | |
| 12 | 51-2448 | FITTING - hose (90 deg, #10) | 1 | |
| 13 | 33-2115 | O-RING (#10, 5/8 id) | 2 | |
| 14 | 51-2499 | FITTING - 90 deg (w/ charging port, #16 hose & #12 fitting) | 1 | |
| 15 | 51-1782 | FITTING - hose (straight, #16) | 1 | |
| 16 | 51-1783 | FITTING - hose (90 deg, #16) | 2 | |
| 17 | 33-1785 | O-RING (#12, 15/16 id) | 4 | |
| 18 | 92-4439 | INSULATION - tube | 1 | |
| 19 | N/A | BELT (not supplied by Thermo King) | 1 | |
| 20 | NSS | COMPRESSOR QP21 (see 270D5) | 1 | |
| 203-513 | OIL - compressor (ester solest 35, 1 liter) | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 21 | 22-1335 | MANIFOLD - swivel (90 degree swivel, incl o-rings and screw) | 1 | |
| 33-672 | O-RING - fittings | 2 | ||
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 51-1652 | SCREW - manifold | 1 |
