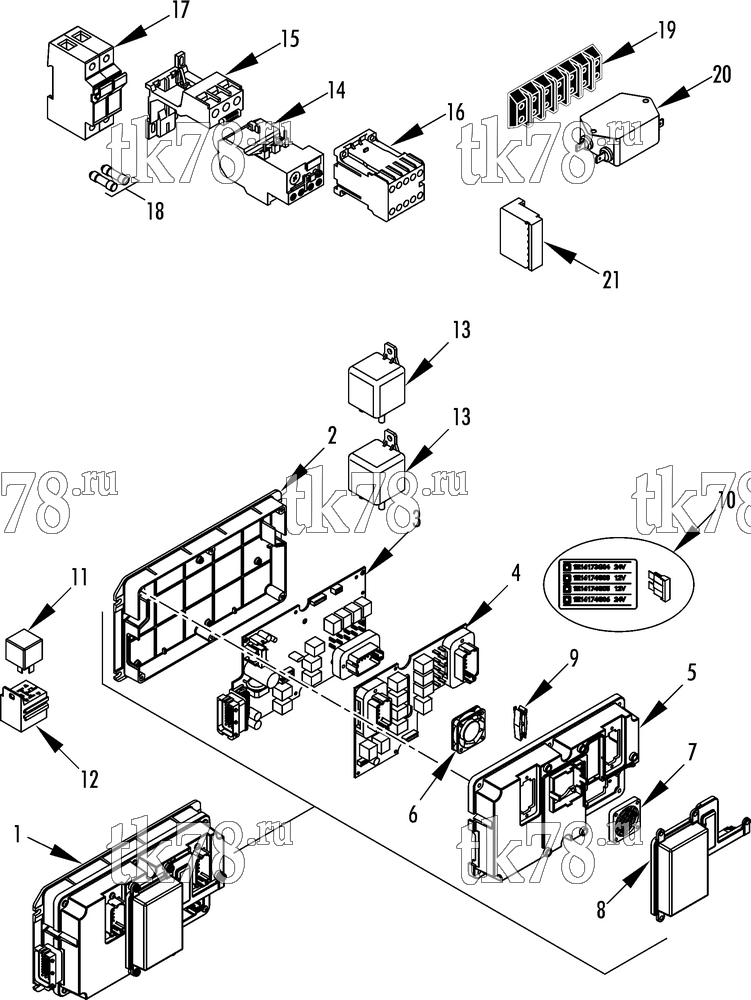

Установкa Thermo King V-800 Series DSR схема CONTROL BOX DSR II (20/50) – 249G6
Обновление от: 9/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2193 | MODULE - control box (requires kit 40-1182 for 24V units) | 1 | |
| 2 | 92-3470 | COVER - base | 1 | |
| 3 | NSS | BOARD - pc (platform #1) | 1 | |
| 4 | NSS | BOARD - pc (platform #2) | 1 | |
| 5 | 92-3579 | COVER - front | 1 | |
| 6 | 41-5480 | FAN - pc board | 1 | |
| 7 | 92-3472 | FILTER - fan | 1 | |
| 8 | 92-3473 | COVER - fuse access | 1 | |
| 9 | 204-1101 | PULLER - fuse | 1 | |
| 51-2012 | NUT - panel | 3 | ||
| 10 | 40-1182 | KIT - fuse & decal | 1 | |
| 41-3080 | FUSE (2 amp, gray) | A/R | ||
| 41-4551 | FUSE (5 amp, tan, 24V) | A/R | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4552 | FUSE (7.5 amp, brown, 24V) | A/R | ||
| 30-41-4552 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4553 | FUSE (10 amp, red, 24V) | A/R | ||
| 41-4554 | FUSE (15 amp, blue) | A/R | ||
| 41-4555 | FUSE (20 amp, yellow) | A/R | ||
| 11 | 42-1148 | RELAY (12V) | 1 | |
| 42-1149 | RELAY (24V) | 1 | ||
| 12 | 44-5537 | SOCKET - relay (part of main harness) | 1 | |
| 13 | 41-4668 | RELAY - battery & standby power (24V) | 2 | |
| 51-2012 | NUT | 2 | ||
| 14 | 41-9245 | RELAY - overload (9-13 amp) | 1 | |
| 15 | 41-8485 | SOCKET - overload relay | 1 | |
| 16 | 42-271 | CONTACTOR (12A 12V) | 1 | |
| 41-9244 | CONTACTOR (12A 24V) | 1 | ||
| 17 | 41-9247 | HOLDER - fuse (2 pole) | 1 | |
| 18 | 41-9453 | FUSE (2 amp) | 2 | |
| 19 | 44-4543 | BOARD - terminal | 1 | |
| 44-2915 | STRIP - jumper | 4 | ||
| 41-6035 | COVER - board | 1 | ||
| 20 | 41-9243 | FILTER | 1 | |
| 21 | 41-901 | MODULE - control | 1 | |
| 41-4667 | RELAY - battery & standby power (24V) | 2 | ||
| 51-2012 | NUT - relay | 2 |
