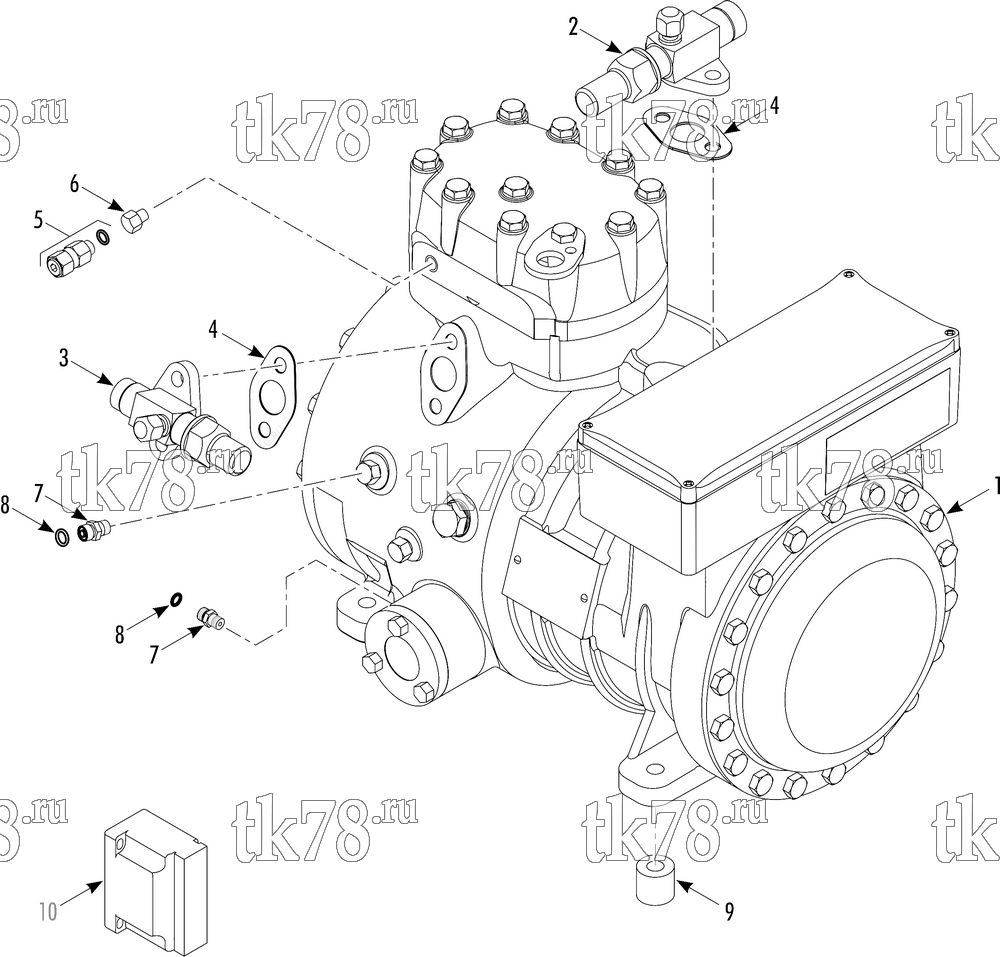

Установкa Thermo King V-800 Series DSR схема COMPRESSOR GROUP 20 & 50 – 242C4
Обновление от: 9/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-966 | COMPRESSOR (3 hp, 230/400/3/50, see 201C2) | 1 | |
| 102-967 | COMPRESSOR (3 hp, 230/400/3/60, see 201C2) | 1 | ||
| 203-513 | OIL - compressor (ester solest 35, 1 liter) | A/R | ||
| EN-203-513 | Масло компрессора, R134a / R404a | 2 200 ₽ |
|
|
| 2 | 61-4992 | VALVE - suction | 1 | |
| 3 | 61-2312 | VALVE - discharge | 1 | |
| 4 | 33-3625 | GASKET - valve | 2 | |
| 5 | 61-5464 | VALVE - relief | 1 | |
| 6 | 61-2060 | ADAPTER - valve | 1 | |
| 7 | 55-9617 | FITTING - oil tube | 2 | |
| 8 | 33-1461 | O-RING | 2 | |
| 9 | 51-903 | SPACER - compressor | 4 | |
| 51-1119 | SCREW - compressor | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-8548 | LOCKWASHER | 4 | ||
| 55-7339 | NUT | 4 | ||
| 10 | 41-901 | MODULE - control | 1 |
