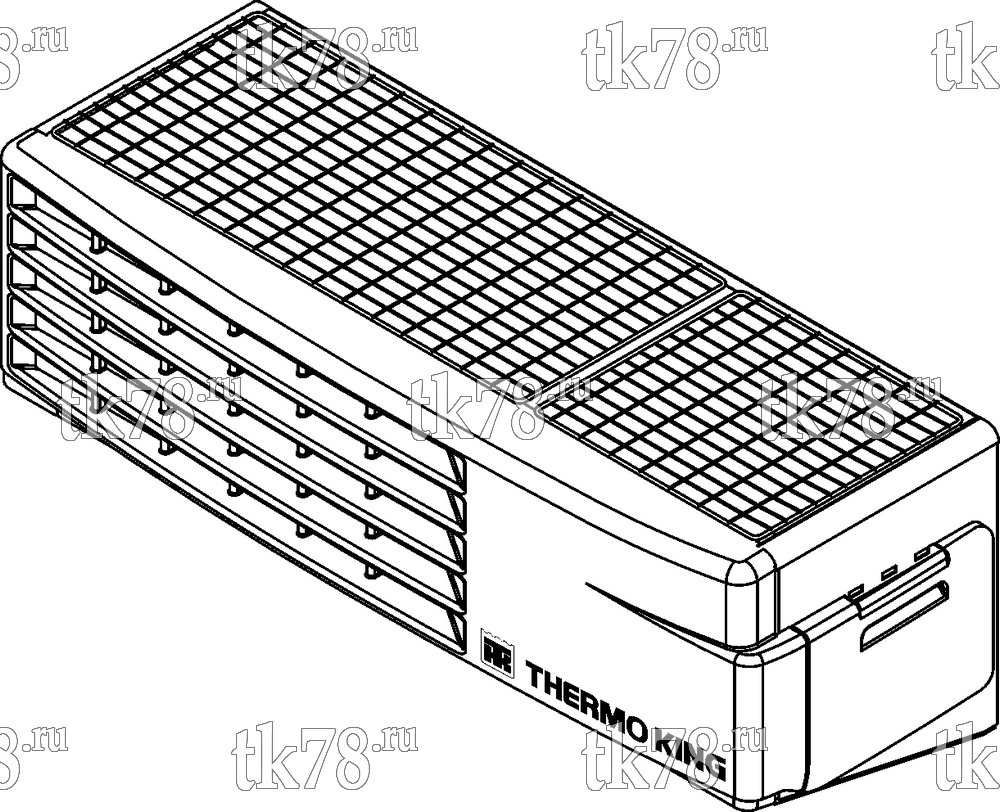

Установкa Thermo King V-800 Series DSR схема V-800 Series DSR REFERENCE SHEET – 19U3
Обновление от: 9/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 902618 | V-800 10 DSR | 9/13 | ||
| 902619 | V-800 20 DSR | 9/13 | ||
| 902620 | V-800 MAX 10 DSR | 9/13 | ||
| 902621 | V-800 MAX 20 DSR | 9/13 | ||
| 902622 | V-800 MAX 30 DSR | 9/13 | ||
| 902623 | V-800 MAX 50 DSR | 9/13 | ||
| 702723 | Condenser - V-800 10 - 12V | 9/13 | ||
| 702724 | Condenser - V-800 10 - 24V | 9/13 | ||
| 702729 | Condenser - V-800 20 R134a 230/400/3/50 - 12V | 9/13 | ||
| 702288 | Condenser - V-800 20 R134a 230/400/3/50 - 24V | 9/13 | ||
| 702730 | Condenser - V-800 20 R134a 230/400/3/50 - 24V | 9/13 | ||
| 702740 | Condenser - V-800 MAX 10 DSR 12V | 9/13 | ||
| 702114 | Condenser - V-800 MAX 10 DSR 24V | 9/13 | ||
| 702115 | Condenser - V-800 MAX 20 DSR | 9/13 | ||
| 702744 | Condenser - V-800 MAX 20 230/400 12V | 9/13 | ||
| 702743 | Condenser - V-800 MAX 30 DSR - 12V | 9/13 | ||
| 702116 | Condenser - V-800 MAX 30 DSR - 24V | 6/10 | ||
| 702117 | Condenser - V-800 MAX 50 230/400/3/50 | 9/13 | ||
| 702118 | Condenser - V-800 MAX 50 230/400/3/60 | 9/13 | ||
| 702287 | Evaporator ES800 R134a - 24V | 9/13 | ||
| 702722 | Evaporator ES800 R134a - 12V | 9/13 | ||
| 702135 | Evaporator R404A - 12V | 9/13 | ||
| 702136 | Evaporator R404A - 24V RVC | 9/13 | ||
| 702137 | Evaporator R404A - 12V RVC | 9/13 | ||
| 702140 | Evaporator R404A - 24V | 9/13 | ||
| 702741 | Evaporator R404A - 12V | 9/13 | ||
| 700031 | Undermount Kit | 9/13 | ||
| 702143 | Undermount Kit Air Cater | 9/13 | ||
| 702142 | Hose Kit | 9/13 | ||
| 702153 | Hose Kit | 9/13 | ||
| 702156 | Receptacle & Plug 4-pole 400V 3PH 16A | 9/13 | ||
| 702157 | Receptacle & Plug 5-pole 400V 3PH 16A | 9/13 | ||
| 702289 | Compressor QP21 24V | 9/13 | ||
| 702311 | Receptacle & Plug 230/3/60 - 30A | 9/13 | ||
| 702314 | Compressor QP21 24V | 9/13 | ||
| 702550 | Compressor fittings | 9/13 | ||
| 702719 | Compressor QP21 12V | 9/13 | ||
| 702720 | Compressor QP21 12V | 9/13 | ||
| 720818 | DIN Adapter | 9/13 | ||
| 720782 | Hose Cover Kit | 9/13 | ||
| 720837 | Door Switch Kit | 9/13 |
