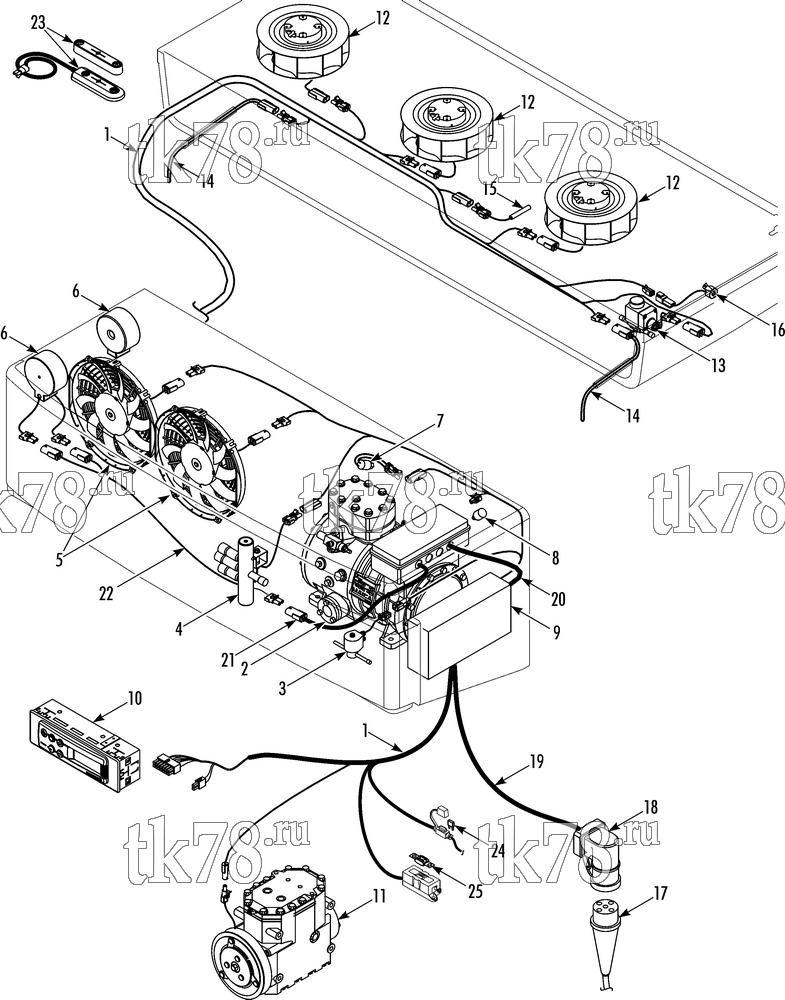

Установкa Thermo King V-700 Series DSR схема ELECTRICAL COMPONENTS – 246C5
Обновление от: 9/3/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9282 | HARNESS - condenser (see 241G0) | 1 | |
| 2 | 102-966 | COMPRESSOR (3 hp, 230/400/3/50, see 201C2) | 1 | |
| 102-967 | COMPRESSOR (3 hp, 230/400/3/60, see 201C2) | 1 | ||
| 3 | 66-7636 | SOLENOID - liquid injection (12V) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL (12V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 61-2520 | SOLENOID - liquid injection (24V) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 4 | 61-3963 | VALVE - reverse cycle | 1 | |
| 41-9324 | COIL - reverse cycle valve (12V) | 1 | ||
| 41-8558 | COIL - reverse cycle valve (24V) | 1 | ||
| 5 | 78-1710 | FAN - condenser (12V) | 2 | |
| 78-1711 | FAN - condenser (24V) | 2 | ||
| 6 | 41-7942 | TRANSFORMER (see 242D7) | 2 | |
| 7 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 8 | 41-5781 | TRANSDUCER - discharge | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 9 | NSS | BOX - control (10 & 30 see 242D5, 20 & 50 see 242D6) | 1 | |
| 10 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 11 | NSS | COMPRESSOR - TK 315R (see 200A6) | 1 | |
| NSS | COMPRESSOR - TM21 see 184E4) | 1 | ||
| 12 | 78-1713 | BLOWER - evaporator (12V) | 3 | |
| 78-1712 | BLOWER - evaporator (24V) | 3 | ||
| 10-78-1712 | Турбина испарителя, 24V, V-700/800 | 13 220 ₽ |
|
|
| 13 | 41-5789 | COIL - hot gas valve (12V) | 1 | |
| 41-5791 | COIL - hot gas valve (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 14 | 41-3156 | HARNESS - drain tube heater (24V, see 185A9) | 2 | |
| 41-9627 | HARNESS - drain tube heater (12V, see 185A9) | 2 | ||
| 15 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 16 | 41-9242 | SWITCH - defrost termination | 1 | |
| 51-2071 | SCREW - switch | 2 | ||
| 17 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 41-8942 | PLUG - power (400/3/50 - 5 pole, mates w/ 41-8941) | 1 | ||
| 18 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 41-8941 | RECEPTACLE - power (400/3/50 - 5 pole, mates w/ 41-8942) | 1 | ||
| 55-9502 | SCREW - receptacle | 4 | ||
| 19 | 41-6032 | CABLE - mains (power, socket to unit) | 1 | |
| 20 | 41-7865 | CABLE - power (overload relay to compressor) | 1 | |
| 21 | 41-7635 | CABLE - power | 1 | |
| 22 | 41-9283 | HARNESS - transformer to motor (see 242D7) | 1 | |
| 23 | 40-907 | SWITCH - door | 1 | |
| 24 | 41-4551 | FUSE (5 amp) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-3074 | HOLDER - fuse | 1 | ||
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 25 | 41-8016 | FUSE (60 amp) | 1 | |
| 41-8018 | HOLDER - fuse | 1 |
