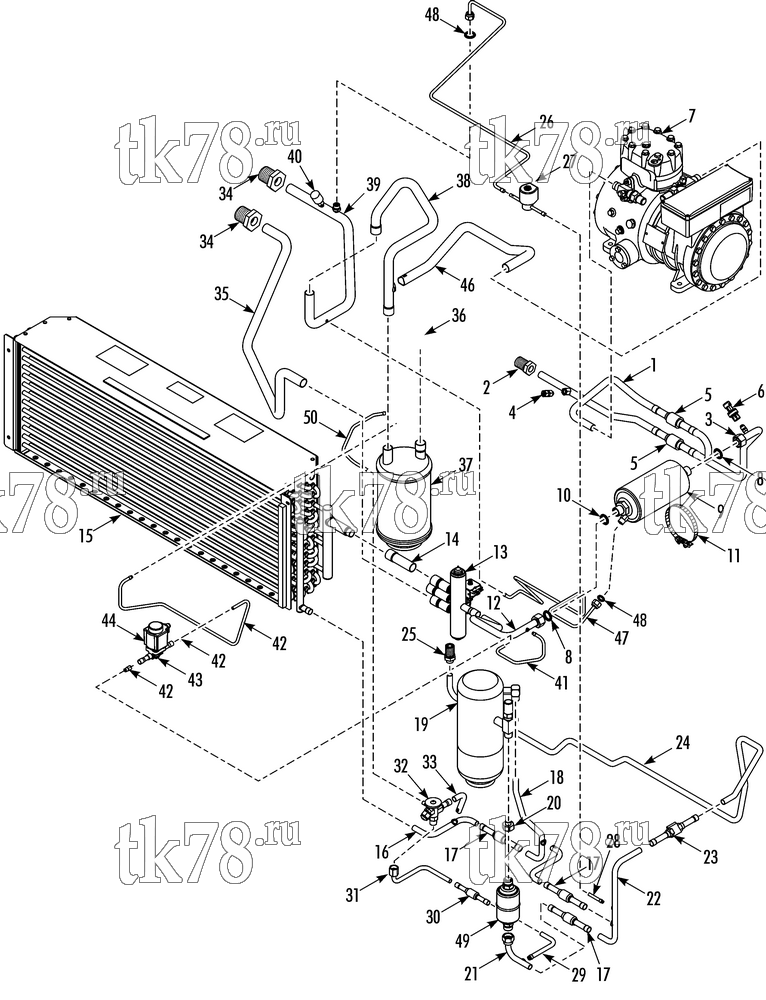

Установкa Thermo King V-700 Series DSR схема CONDENSER REFRIGERATION V-700 50 DSR – 242C3
Обновление от: 5/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-4993 | TUBE - discharge | 1 | |
| 2 | 61-3984 | FITTING - o-ring seal | 1 | |
| 3 | 51-340 | NUT | 1 | |
| 51-339 | SHOULDER - dehydrator | 1 | ||
| 4 | 11-7777 | VALVE (Schrader) | 1 | |
| 11-7777 | INSERT (Schrader) | 1 | ||
| 5 | 61-413 | VALVE - check | 2 | |
| 6 | 41-5781 | TRANSDUCER - discharge | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 7 | 102-966 | COMPRESSOR (3 hp, 230/400/3/50, see 201C2) | 1 | |
| 102-967 | COMPRESSOR (3 hp, 230/400/3/60, see 201C2) | 1 | ||
| 8 | 33-2115 | O-RING (5/8 id) | 1 | |
| 9 | 61-1620 | SEPARATOR - oil | 1 | |
|
61-9847 OEM | Масляный сепаратор, V-700/800 | 9 820 ₽ |
|
| 10 | 33-672 | O-RING (9/16 ID) | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 11 | 55-7799 | CLAMP - separator | 1 | |
| 12 | 61-5001 | TUBE - separator to coil | 1 | |
| 51-340 | NUT | 1 | ||
| 13 | 61-3963 | VALVE - reverse cycle | 1 | |
| 41-9324 | COIL - reverse cycle valve (12V) | 1 | ||
| 41-8558 | COIL - reverse cycle valve (24V) | 1 | ||
| 14 | 61-4994 | TUBE - valve to coil | 1 | |
| 15 | 67-2479 | COIL - condenser (see 241G9) | 1 | |
| 16 | 61-5006 | TUBE - coil to tank | 1 | |
| 17 | 61-1235 | VALVE - check | 3 | |
| 18 | 61-5075 | TUBE - check valve to receiver | 1 | |
| 19 | 67-1927 | TANK - receiver | 1 | |
| 20 | 61-5151 | ADAPTER | 1 | |
| 55-7825 | NUT - tank | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 21 | 61-5011 | TUBE - dehydrator to check valve | 1 | |
| 22 | 61-5010 | TUBE - check valve to sight glass | 1 | |
| 23 | 61-4972 | SIGHTGLASS | 1 | |
| 24 | 61-5014 | TUBE - sight glass to fitting | 1 | |
| 25 | 61-2726 | FITTING - liquid | 1 | |
| 26 | 61-5016 | TUBE - liquid injection | 1 | |
| 27 | 66-7636 | SOLENOID - liquid injection (12V) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 61-2520 | SOLENOID - liquid injection (24V) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 61-2694 | FILTER - solenoid | 1 | ||
| 55-1339 | SCREW - solenoid | 2 | ||
| 55-7119 | CLAMP - tube | 1 | ||
| 28 | 61-5015 | TUBE - t-drill to valve | 1 | |
| 29 | 61-5012 | TUBE - t-drill to valve | 1 | |
| 30 | 61-412 | VALVE - check | 1 | |
| 31 | 61-5013 | TUBE - check valve to expansion valve | 1 | |
| 51-344 | NUT - expansion valve | 1 | ||
| 32 | 66-9314 | VALVE - expansion | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 61-1416 | FILTER - valve | 1 | ||
| 33 | 61-5007 | TUBE - expansion valve to t-drill | 1 | |
| 34 | 51-338 | ADAPTER - o-ring seal (suction) | 2 | |
| 51-341 | NUT | 2 | ||
| 35 | 61-4996 | TUBE - adapter to valve | 1 | |
| 36 | 61-4995 | TUBE - valve to tank | 1 | |
| 37 | 67-1926 | TANK - accumulator | 1 | |
| 55-7825 | NUT - tank | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 38 | 61-4997 | TUBE - tank to joint | 1 | |
| 39 | 61-4998 | TUBE - bushing to adapter | 1 | |
| 40 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 41 | 61-5002 | TUBE - t-drill to valve | 1 | |
| 42 | 55-7661 | BUSHING | 2 | |
| 43 | 66-7878 | SOLENOID | 1 | |
| 44 | 41-5789 | COIL - valve (12V) | 1 | |
| 41-5791 | COIL - valve (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 45 | 61-5003 | TUBE - valve to t-drill | 1 | |
| 46 | 61-4999 | TUBE - t-drill to compressor | 1 | |
| 47 | 61-5017 | TUBE - oil separator | 1 | |
| 48 | 33-1461 | O-RING | 2 | |
| 49 | 61-3854 | DEHYDRATOR | 1 | |
|
10-61-3854 | Дегидратор, V-700/800 | 2 480 ₽ |
|
| 33-566 | O-RING (1/2 ID) | 2 | ||
| 50 | 61-5004 | TUBE - t-drill to expansion valve | 1 |
