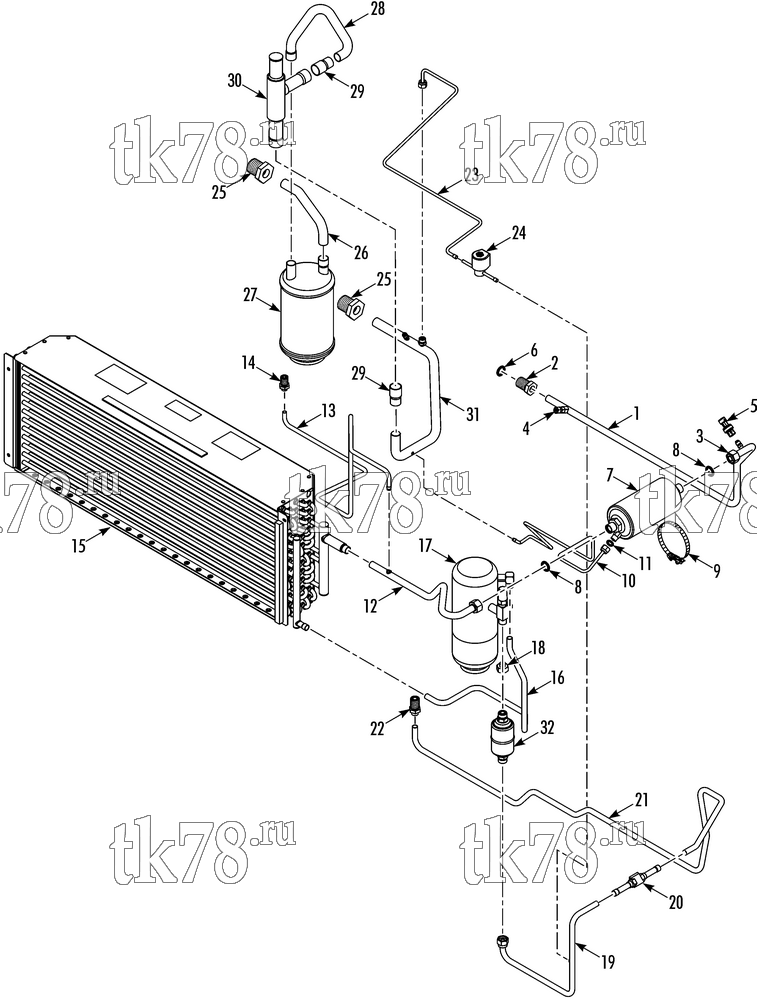

Установкa Thermo King V-700 Series DSR схема CONDENSER REFRIGERATION V-700 10 DSR – 241G8
Обновление от: 5/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5018 | TUBE - discharge | 1 | |
| 2 | 61-3984 | FITTING - o-ring seal | 1 | |
| 3 | 51-340 | NUT | 1 | |
| 51-339 | SHOULDER - dehydrator | 1 | ||
| 4 | 11-7777 | VALVE (Schrader) | 1 | |
| 5 | 41-5781 | TRANSDUCER - discharge | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 6 | 33-2115 | O-RING (5/8 id) | 1 | |
| 7 | 61-1620 | SEPARATOR - oil | 1 | |
|
61-9847 OEM | Масляный сепаратор, V-700/800 | 9 820 ₽ |
|
| 8 | 33-672 | O-RING (9/16 ID) | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 9 | 55-7799 | CLAMP - separator | 1 | |
| 10 | 61-5019 | TUBE - oil separator | 1 | |
| 11 | 33-1461 | O-RING (5/16 id) | 1 | |
| 12 | 61-5020 | TUBE - separator to coil | 1 | |
| 55-9836 | NUT | 1 | ||
| 13 | 61-5021 | TUBE - hot gas | 1 | |
| 14 | 61-2700 | FITTING - hot gas | 1 | |
| 15 | 67-2479 | COIL - condenser (see 241G9) | 1 | |
| 16 | 61-5022 | TUBE - coil to tank | 1 | |
| 17 | 67-1927 | TANK - receiver | 1 | |
| 18 | 61-5151 | ADAPTER (ORS, 13/16 - 16 threads) | 1 | |
| 33-3752 | INSULATION - tank | 1 | ||
| 55-7825 | NUT - tank | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 19 | 61-5023 | TUBE - dehydrator to sight glass | 1 | |
| 61-5219 | TUBE - dehydrator to sight glass (units wo/ liquid inj solenoid) | 1 | ||
| 20 | 61-4972 | SIGHTGLASS | 1 | |
| 21 | 61-5014 | TUBE - sight glass to fitting | 1 | |
| 22 | 61-2726 | FITTING - liquid | 1 | |
| 23 | 61-5016 | TUBE - liquid injection | 1 | |
| 24 | 66-7636 | SOLENOID - liquid injection (12V) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 61-2520 | SOLENOID - liquid injection (24V) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 61-2694 | FILTER - solenoid | 1 | ||
| 55-1339 | SCREW - solenoid | 2 | ||
| 55-7119 | CLAMP - tube | 1 | ||
| 25 | 51-338 | ADAPTER - o-ring seal (suction) | 2 | |
| 51-341 | NUT | 2 | ||
| 26 | 61-5024 | TUBE - adapter to tank | 1 | |
| 27 | 67-1926 | TANK - accumulator | 1 | |
| 55-7825 | NUT - tank | 1 | ||
| 55-7066 | LOCKWASHER | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 28 | 61-5025 | TUBE - tank to valve | 1 | |
| 29 | 55-1292 | BUSHING | 2 | |
| 30 | 22-953 | REGULATOR - suction pressure | 1 | |
| 31 | 61-4998 | TUBE - bushing to adapter | 1 | |
| 32 | 61-3854 | DEHYDRATOR | 1 | |
|
10-61-3854 | Дегидратор, V-700/800 | 2 480 ₽ |
|
| 33-566 | O-RING (1/2 ID) | 2 |
