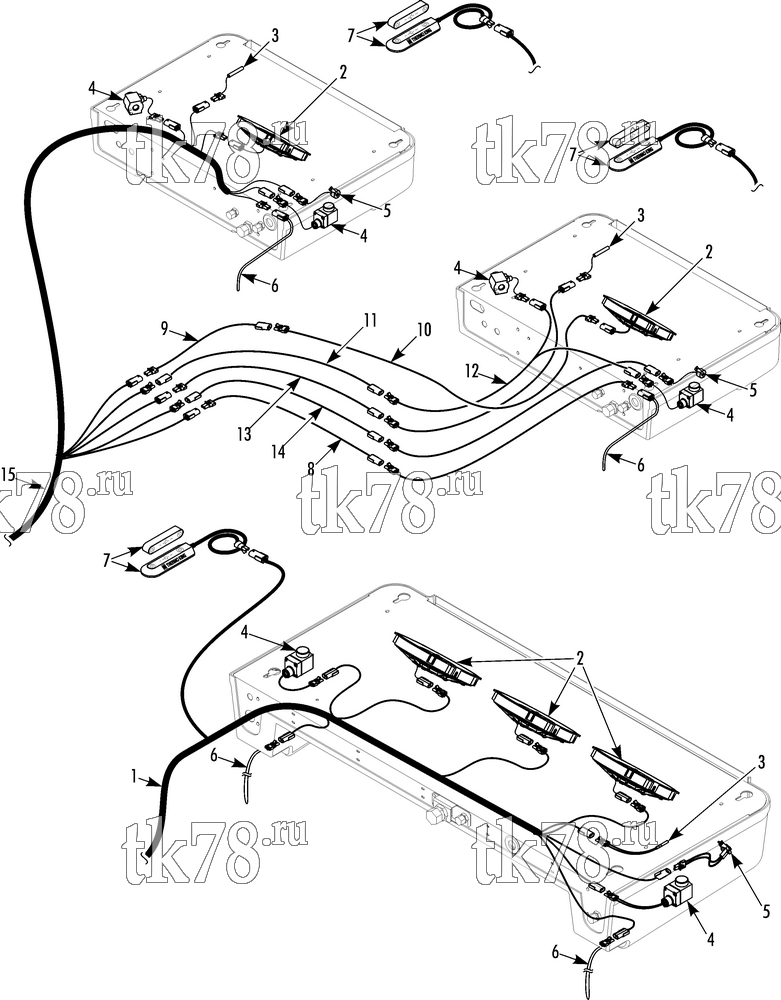

Установкa Thermo King V-700 MAX SPECTRUM схема EVAPORATOR ELECTRICAL COMPONENTS (ES500 & 2-ES150) – 249G8
Обновление от: 3/11/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9282 | HARNESS - main (see 241G0) | 1 | |
| 2 | 78-1374 | FAN - evaporator (ES150 & ES500, 24V) | 5 | |
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 670 ₽ |
|
| 3 | 41-5784 | SENSOR - temperature | 3 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 4 | 41-5791 | COIL - solenoid (24V) | 3 | |
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 5 | 41-3136 | SWITCH - defrost termination | 3 | |
| 51-2071 | SCREW - switch | 6 | ||
| 6 | 41-3156 | HARNESS - drain tube heater (24V, see 185A9) | 6 | |
| 7 | 40-907 | SWITCH - door (see 212G7) | 3 | |
| 8 | 41-9753 | HARNESS - extension (drain tube heater) | 1 | |
| 9 | 41-9749 | HARNESS - extension (evaporator fan) | 1 | |
| 10 | 41-9754 | HARNESS - extension & split (evaporator fan) | 1 | |
| 11 | 41-9751 | HARNESS - extension (solenoid) | 1 | |
| 12 | 41-7860 | HARNESS - extension & split (solenoid) | 1 | |
| 13 | 41-9752 | HARNESS - extension (sensor) | 1 | |
| 14 | 41-9750 | HARNESS - extension (defrost termination) | 1 | |
| 41-9741 | HARNESS - main (addition, see 249H1) | 1 |
