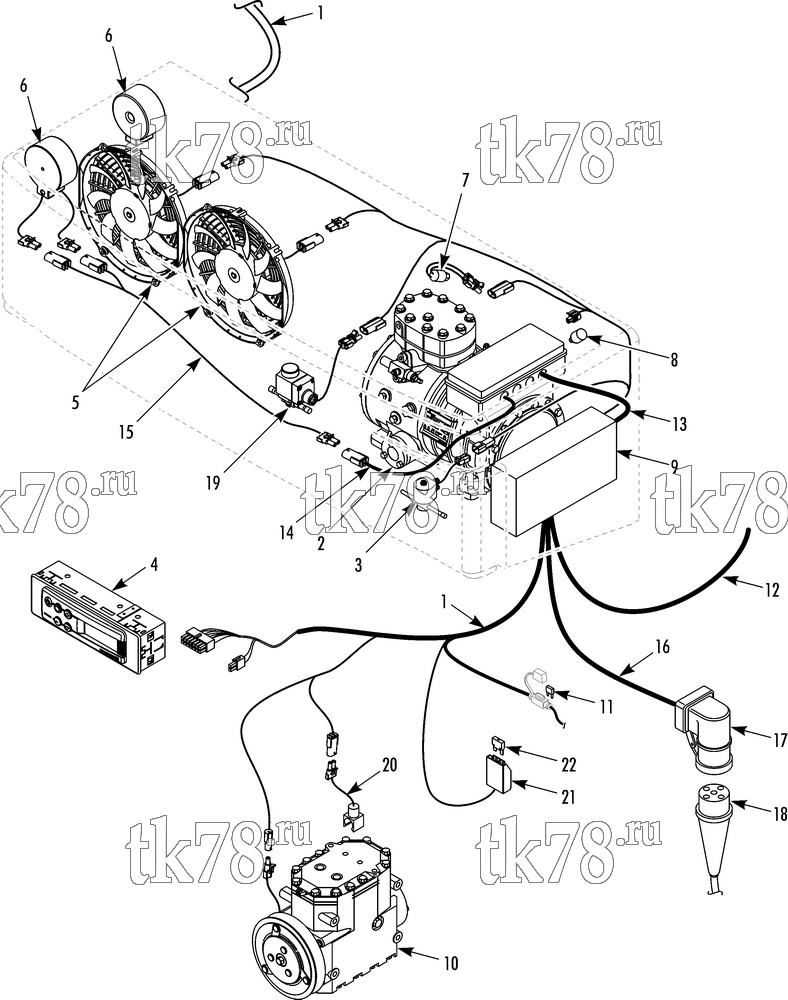

Установкa Thermo King V-700 MAX SPECTRUM схема CONDENSER ELECTRICAL COMPONENTS – 249G7
Обновление от: 3/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9282 | HARNESS - main (see 241G0) | 1 | |
| 2 | 102-966 | COMPRESSOR (3 hp, 230/400/3/50, see 201C2) | 1 | |
| 102-967 | COMPRESSOR (3 hp, 230/400/3/60, see 201C2) | 1 | ||
| 3 | 61-2520 | SOLENOID - liquid injection (24V) | 1 | |
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 4 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 5 | 78-1711 | FAN - condenser (24V) | 2 | |
| 6 | 41-7942 | TRANSFORMER (see 242D7) | 2 | |
| 7 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 8 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 9 | NSS | BOX - control (see 249G6) | 1 | |
| 10 | NSS | COMPRESSOR - TK 315 (see 200A6) | 1 | |
| 11 | 41-4551 | FUSE (5 amp) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-3074 | HOLDER - fuse | 1 | ||
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 12 | 41-9741 | HARNESS - main (addition, see 249H1) | 1 | |
| 13 | 41-7865 | CABLE - power (overload relay to compressor) | 1 | |
| 14 | 41-7635 | CABLE - power | 1 | |
| 15 | 41-9283 | HARNESS - transformer to motor (see 242D7) | 1 | |
| 16 | 41-6032 | CABLE - mains (power, socket to unit) | 1 | |
| 17 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 41-8942 | PLUG - power (400/3/50 - 5 pole, mates w/ 41-8941) | 1 | ||
| 55-9502 | SCREW - receptacle | 4 | ||
| 18 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 41-8941 | RECEPTACLE - power (400/3/50 - 5 pole, mates w/ 41-8942) | 1 | ||
| 19 | 41-5791 | COIL - solenoid (24V) | 1 | |
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 20 | 44-9020 | SWITCH - thermo | 1 | |
| 21 | 41-5785 | HOLDER - fuse | 2 | |
| 22 | 41-7275 | FUSE (30 amp) | 2 |
