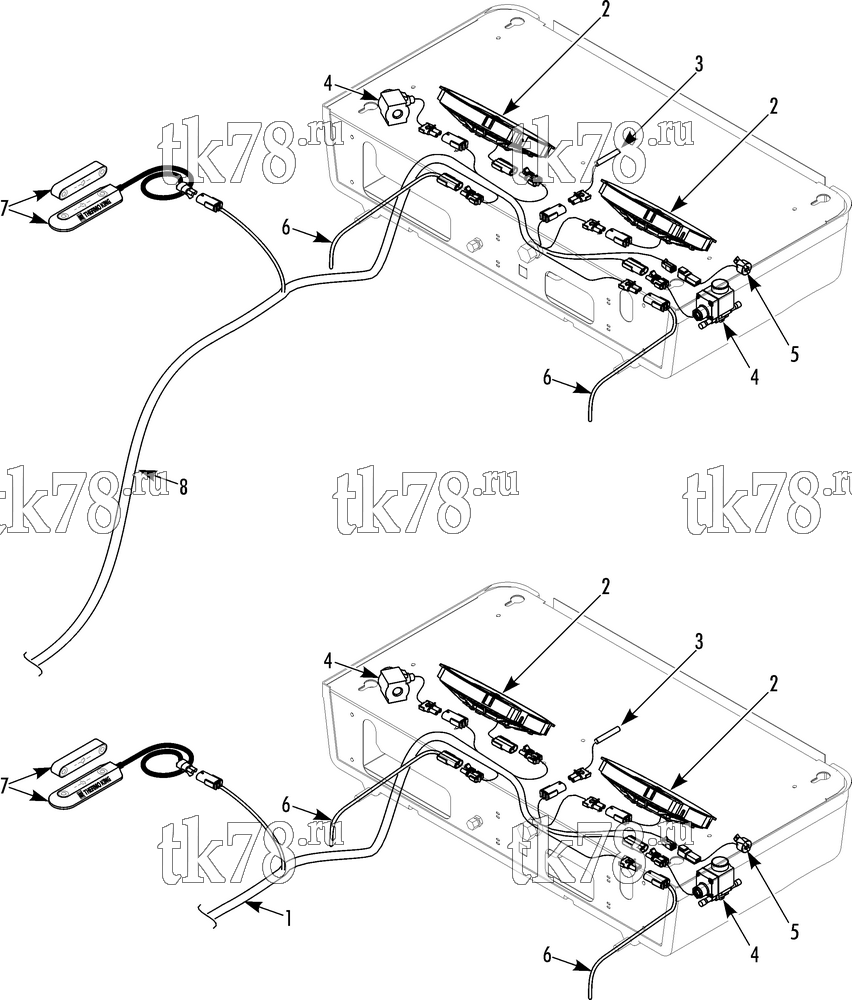

Установкa Thermo King V-700 MAX SPECTRUM схема EVAPORATOR ELECTRICAL COMPONENTS (2-ES400) – 249G0
Обновление от: 3/8/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9282 | HARNESS - main (see 241G0) | 1 | |
| 2 | 78-1355 | FAN - evaporator (ES400, 24V) | 4 | |
| 3 | 41-5784 | SENSOR - temperature | 2 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 4 | 41-5791 | COIL - solenoid (24V) | 4 | |
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
| 5 | 41-3136 | SWITCH - defrost termination | 2 | |
| 51-2071 | SCREW - switch | 4 | ||
| 6 | 41-3156 | HARNESS - drain tube heater (24V, see 185A9) | 2 | |
| 7 | 40-907 | SWITCH - door (see 212G7) | 2 | |
| 8 | 41-9741 | HARNESS - main (addition, see 249H1) | 1 |
