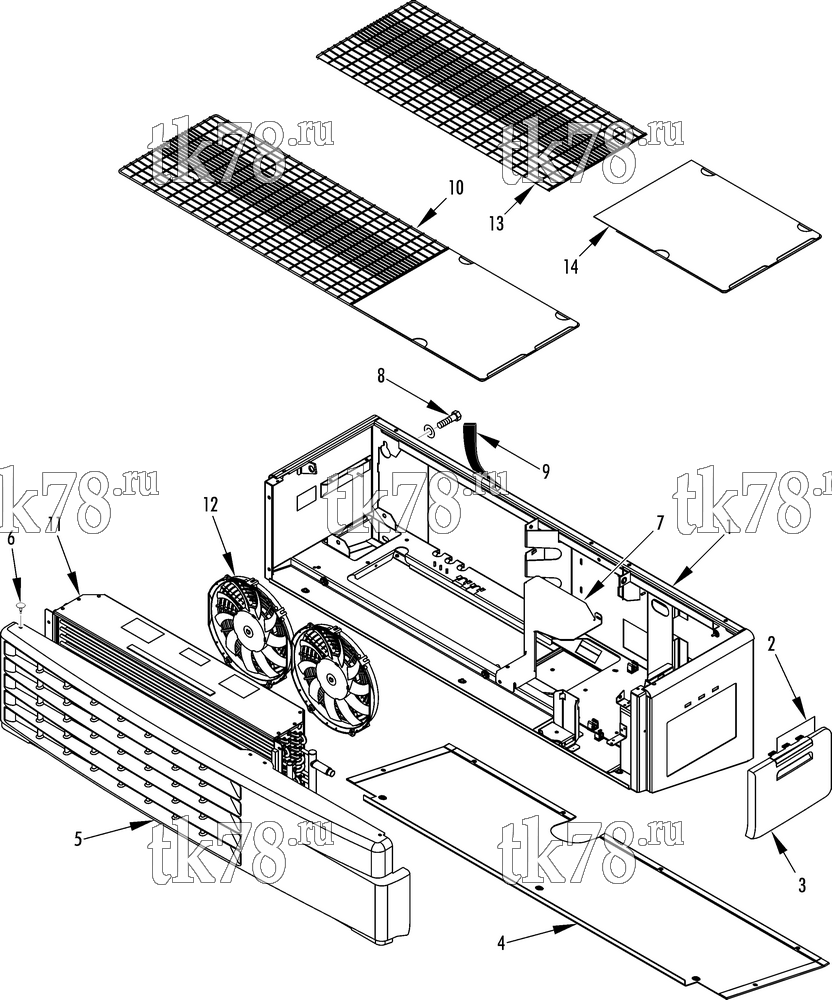

Установкa Thermo King V-700 MAX SPECTRUM схема FRAME AND FAN GROUP – 241G9
Обновление от: 4/27/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8452 | FRAME - condenser | 1 | |
| 55-8375 | NUT - captive | 3 | ||
| 2 | 92-2353 | NAMEPLATE - instruction | 1 | |
| 3 | 92-2352 | COVER - control box | 1 | |
| 41-7774 | LANYARD - cover | 1 | ||
| 4 | 98-8454 | COVER - bottom | 1 | |
| 51-2010 | SCREW - cover | 9 | ||
| 5 | 98-6577 | COVER - condenser | 1 | |
| 55-9964 | RIVET - cover (drive) | 2 | ||
| 6 | 55-9898 | RIVET - support | 2 | |
| 7 | 92-8198 | BRACKET - coil | 1 | |
| 51-2010 | SCREW - bracket | 2 | ||
| 8 | 55-9919 | SCREW - unit to truck wall | 4 | |
| 55-8536 | FLATWASHER | 4 | ||
| 55-7000 | LOCKWASHER | 4 | ||
| 55-7348 | NUT | 4 | ||
| 9 | 33-2660 | STRIP - seal | 3 | |
| 10 | 98-8475 | GRILLE - condenser coil (one piece) | 1 | |
| 55-9825 | CLAMP - grille | 8 | ||
| 51-2010 | SCREW - grille | 8 | ||
| 11 | 67-2479 | COIL - condenser | 1 | |
| 51-2010 | SCREW - coil | 14 | ||
| 55-8375 | NUT - captive | 12 | ||
| 12 | 78-1710 | FAN - condenser (12V) | 2 | |
| 78-1711 | FAN - condenser (24V) | 2 | ||
| 13 | 98-6575 | GRILLE - condenser | 1 | |
| 14 | 98-8453 | GRILLE - compressor | 1 |
