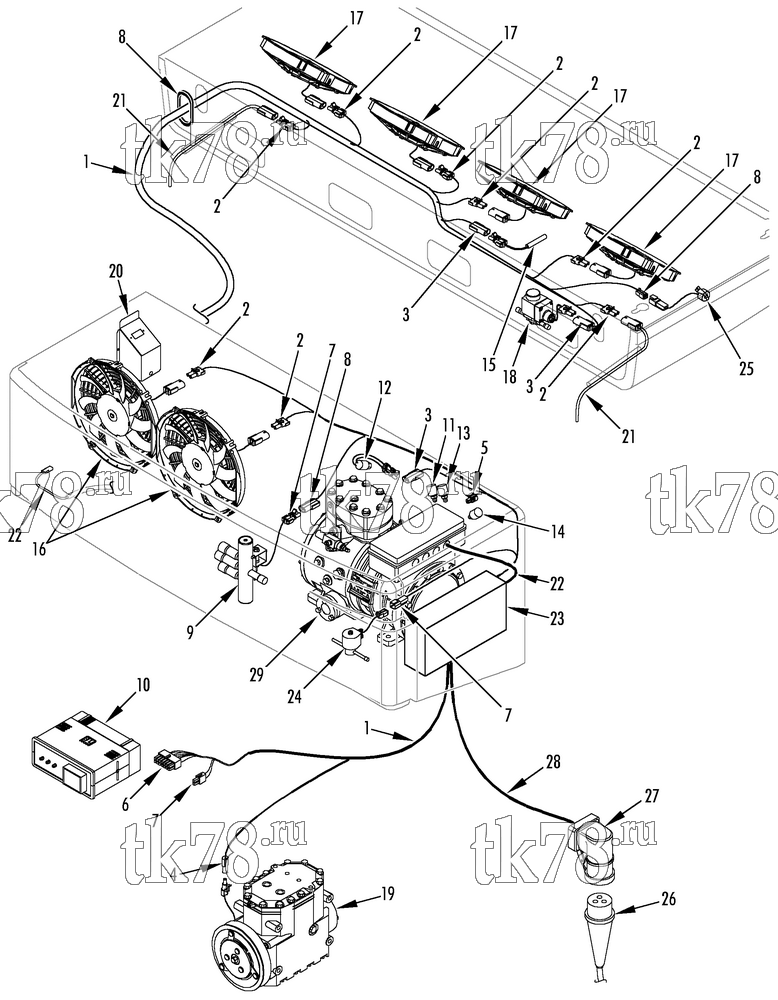

Установкa Thermo King V-700 MAX 50 схема ELECTRICAL COMPONENTS (V-700 MAX) – 197D0
Обновление от: 9/3/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5253 | HARNESS - condenser | 1 | |
| 2 | 44-5838 | CONNECTOR - tower (2-pin) | 5 | |
| 3 | 44-5835 | CONNECTOR - shroud | 7 | |
| 4 | 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 1 | |
| 5 | 41-4621 | CONNECTOR - speed control switch | 1 | |
| 41-4625 | SEAL | 2 | ||
| 6 | 41-3423 | CONNECTOR - cab controller (10-pin) | 1 | |
| 7 | 41-1507 | CONNECTOR - cab controller (2-pin) | 1 | |
| 8 | 33-3539 | GROMMET - evaporator | 1 | |
| 9 | 61-3963 | VALVE - reverse cycle (see 185A1) | 1 | |
| 10 | 45-1780 | CONTROLLER - in-cab | 1 | |
| 11 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 12 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 13 | 41-6225 | SWITCH - hpco (condenser fan) | 1 | |
| 14 | 44-5834 | SWITCH - hpco (fan speed control) | 1 | |
| 15 | 41-3134 | SENSOR - temperature | 1 | |
| 16 | 78-1354 | FAN - condenser (24V) | 2 | |
| 17 | 78-1355 | FAN - evaporator (24V) | 4 | |
| 18 | 61-1277 | VALVE - base (hot gas, see 185A2) | 1 | |
| 41-5051 | COIL - hot gas valve (24V) | 1 | ||
| 19 | 102-810 | COMPRESSOR - TK 315R (tube-O, see 200A6) | 1 | |
| 20 | 41-5255 | TRANSFORMER (see 172H4) | 1 | |
| 21 | 41-3156 | HARNESS - drain tube heater (see 185A9) | 4 | |
| 22 | 41-5256 | CABLE - power (overload relay to compressor) | 1 | |
| 23 | NSS | BOX - control (see 185A7) | 1 | |
| 24 | 61-2520 | SOLENOID - liquid injection (24V) | 1 | |
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 25 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 26 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 41-8942 | PLUG - power (400/3/50 - 5 pole, mates w/ 41-8941) | 1 | ||
| 27 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 41-8941 | RECEPTACLE - power (400/3/50 - 5 pole, mates w/ 41-8942) | 1 | ||
| 55-9502 | SCREW - receptacle | 4 | ||
| 28 | 41-5335 | CABLE - mains (power, socket to unit) | 1 | |
| 29 | 102-966 | COMPRESSOR (230/3/50, see 201C2) | 1 | |
| 102-966 | COMPRESSOR (380/3/50, 18M3/H) | 1 |
