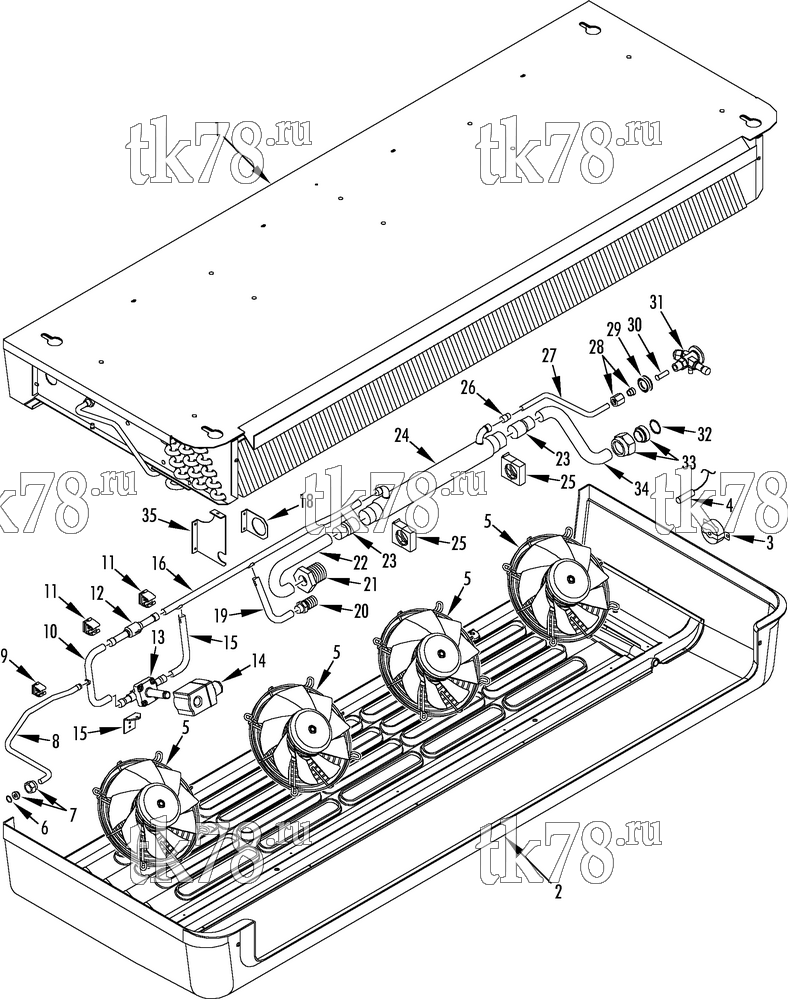

Установкa Thermo King V-700 MAX 50 схема EVAPORATOR ASSEMBLY (ES700 MAX) – 185A2
Обновление от: 2/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1928 | COIL - evaporator | 1 | |
| 55-8375 | NUT - captive | 26 | ||
| 2 | 98-6578 | COVER - evaporator | 1 | |
| 55-7407 | SCREW - cover (pan head) | 10 | ||
| 55-7340 | SCREW - cover (hexagon) | 16 | ||
| 55-7404 | LOCKWASHER | 26 | ||
| 55-9826 | FLATWASHER | 26 | ||
| 3 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 4 | 41-3143 | SENSOR - temperature | 1 | |
| 55-9825 | CLAMP - sensor | 1 | ||
| 55-7340 | SCREW - clamp | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 5 | 78-1355 | FAN - evaporator (24V) | 4 | |
| 6 | 33-1015 | O-RING (3/8) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 55-9286 | SHOULDER (3/8) | 1 | |
| 55-9008 | NUT - o-ring seal (3/8) | 1 | ||
| 8 | 61-2095 | TUBE - joint to fitting | 1 | |
| 9 | 92-1894 | SADDLE - tube (3/8) | 2 | |
| 10 | 61-2093 | TUBE - valve to check valve | 1 | |
| 11 | 92-1580 | SADDLE - tube (1/2) | 2 | |
| 12 | 61-1235 | VALVE - check | 1 | |
| 13 | 61-1277 | VALVE - defrost | 1 | |
| 14 | 41-5051 | COIL - valve (24V) | 1 | |
| 15 | 61-2094 | TUBE - joint to valve | 1 | |
| 16 | 61-2092 | TUBE - check valve to exchanger | 1 | |
| 17 | 92-2808 | BRACKET - liquid | 1 | |
| 18 | 92-2807 | BRACKET - suction | 1 | |
| 19 | 61-2099 | TUBE - fitting to joint | 1 | |
| 20 | 61-1228 | FITTING - o-ring seal | 1 | |
| 55-9895 | NUT - bulkhead | 1 | ||
| 22 | 61-2098 | TUBE - exchanger to fitting | 1 | |
| 23 | 55-1292 | BUSHING | 2 | |
| 24 | 67-1929 | HEAT EXCHANGER | 1 | |
| 25 | 92-2805 | SADDLE - tube (1-1/8) | 2 | |
| 26 | 55-1804 | BUSHING | 1 | |
| 27 | 61-2096 | TUBE - exchanger to expansion valve | 1 | |
| 28 | 61-470 | SHOULDER - expansion valve | 1 | |
| 51-344 | NUT - expansion valve | 1 | ||
| 29 | 33-3135 | GROMMET (35 mm) | 1 | |
| 33-3539 | GROMMET (26 mm) | 1 | ||
| 30 | 61-2091 | FILTER - valve | 1 | |
| 31 | 66-9314 | VALVE - expansion | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 203-534 | TAPE - insulating | A/R | ||
| 32 | 33-1785 | O-RING (15/16) | 1 | |
| 33 | 51-345 | SHOULDER - suction (#16) | 1 | |
| 51-343 | NUT - adapter (o-ring seal, #16) | 1 | ||
| 34 | 61-2097 | TUBE - fitting to exchanger | 1 | |
| 35 | 92-2806 | BRACKET - valve | 1 | |
| 55-9898 | RIVET - bracket | 2 |
