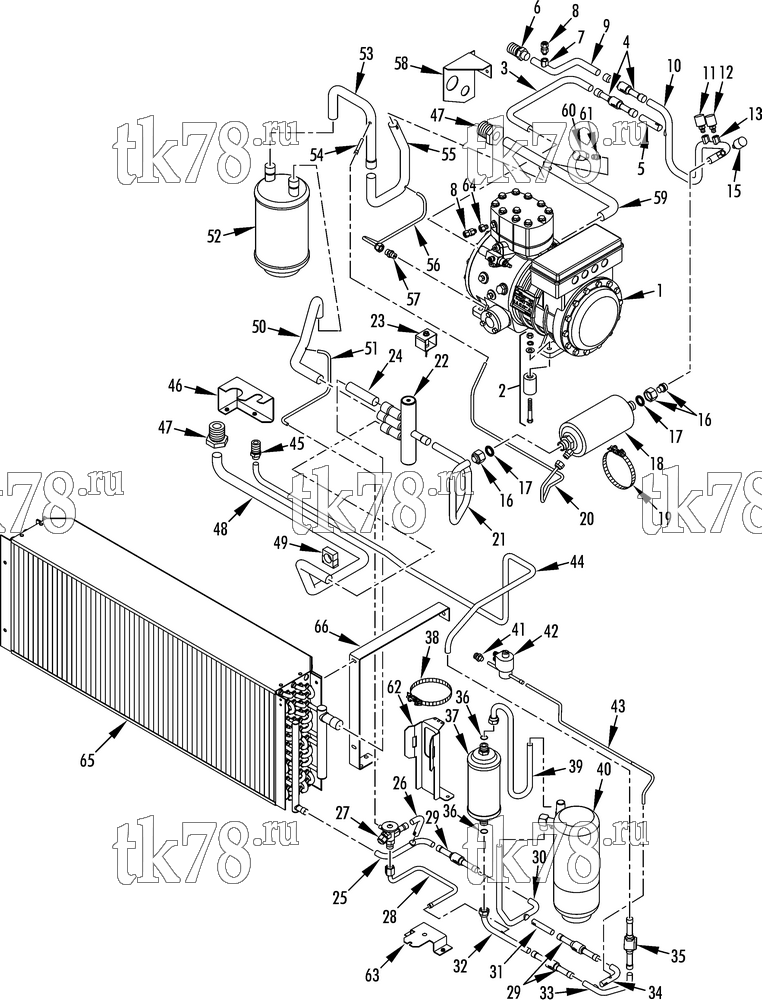

Установкa Thermo King V-700 MAX 50 схема CONDENSER REFRIGERATION GROUP – 185A1
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-966 | COMPRESSOR (230/3/50, see 201C2) | 1 | |
| 102-966 | COMPRESSOR (380/3/50, 18M3/H) | 1 | ||
| 203-515 | OIL - compressor | A/R | ||
| 2 | 55-9158 | SCREW - compressor | 4 | |
| 51-173 | SPACER - compressor motor | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-9485 | WASHER - special | 4 | ||
| 55-7339 | NUT | 4 | ||
| 3 | 61-2076 | TUBE - compressor to check valve | 1 | |
| 4 | 61-2073 | VALVE - check | 2 | |
| 5 | 61-2075 | TUBE - joint to check valve | 1 | |
| 6 | 61-432 | FITTING - discharge (#10) | 1 | |
| 7 | 61-2078 | FITTING - relief valve | 1 | |
| 8 | 61-1193 | VALVE - relief | 2 | |
| 9 | 61-2077 | TUBE - fitting to check valve | 1 | |
| 10 | 61-2074 | TUBE - check valve to oil separator | 1 | |
| 11 | 44-8064 | SWITCH - hpco | 1 | |
|
44-8064 OEM | Датчик HP, V-Series | 9 100 ₽ |
|
|
10-44-8064 | Датчик HP, V-Series | 4 630 ₽ |
|
| 12 | 41-6225 | SWITCH - hpco (condenser fan) | 1 | |
| 13 | 61-439 | ADAPTER - pressure switch | 1 | |
| 15 | 44-5834 | SWITCH - hpco (fan speed control) | 1 | |
| 16 | 51-339 | SHOULDER - o-ring seal | 2 | |
| 51-340 | NUT - fitting | 2 | ||
| 17 | 33-672 | O-RING (9/16) | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 55-9009 | NUT - o-ring | 1 | ||
| 55-9286 | SHOULDER - o-ring | 1 | ||
| 18 | 61-1620 | SEPARATOR - oil | 1 | |
|
61-9847 OEM | Масляный сепаратор, V-700/800 | 9 820 ₽ |
|
| 19 | 55-2688 | CLAMP - tank | 2 | |
| 20 | 61-2989 | TUBE - oil separator to suction tube | 1 | |
| 55-9618 | NUT - o-ring | 1 | ||
| 21 | 61-2062 | TUBE - oil separator to valve | 1 | |
| 22 | 61-3963 | VALVE - reverse cycle (replaces valve 61-2061) | 1 | |
| 23 | 41-5254 | COIL - valve (for valve 61-2061, before 5/06) | 1 | |
| 41-8558 | COIL - valve (for valve 61-3963, 5/06 & after) | 1 | ||
| 24 | 61-2063 | TUBE - valve to coil | 1 | |
| 25 | 61-2088 | TUBE - condenser coil to check valve | 1 | |
| 26 | 61-2089 | TUBE - expansion valve to joint | 1 | |
| 27 | 66-9314 | BODY - expansion valve | 1 | |
|
66-9314 OEM | ТРВ, V/VM-Series MAX (R404A) | 31 890 ₽ |
|
| 61-1416 | FILTER - expansion valve | 1 | ||
| 28 | 61-2087 | TUBE - expansion valve to joint | 1 | |
| 51-344 | NUT - expansion valve | 1 | ||
| 29 | 61-1235 | VALVE - check | 3 | |
| 30 | 61-2086 | TUBE - check valve to receiver tank | 1 | |
| 31 | 61-2085 | TUBE - fitting to check valve | 1 | |
| 32 | 61-2084 | TUBE - dehydrator to check valve | 1 | |
| 33 | 61-2080 | TUBE - valve to sight glass | 1 | |
| 34 | 61-2082 | TUBE - check valve to joint | 1 | |
| 35 | 66-7676 | INDICATOR - liquid | 1 | |
| 36 | 33-566 | O-RING (1/2 id) | 2 | |
| 37 | 66-8472 | DEHYDRATOR | 1 | |
| 38 | 55-6225 | CLAMP - dehydrator | 1 | |
| 39 | 61-4918 | TUBE - receiver to dehydrator | 1 | |
| 55-9009 | NUT - o-ring seal (#8) | 2 | ||
| 61-470 | SHOULDER - o-ring seal (#8) | 2 | ||
| 40 | 67-1927 | TANK - receiver | 1 | |
| 55-7339 | NUT - tank | 2 | ||
| 55-9485 | FLATWASHER | 2 | ||
| 41 | 55-9923 | ADAPTER - liquid (#4) | 1 | |
| 42 | 61-2520 | VALVE - liquid injection (24V) | 1 | |
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 43 | 61-2083 | TUBE - liquid injection (valve to joint) | 1 | |
| 44 | 61-2081 | TUBE - sight glass to evaporator | 1 | |
| 55-9836 | NUT - adapter | 1 | ||
| 46 | 92-2793 | BRACKET - fitting | 1 | |
| 55-7826 | SCREW - bracket | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 47 | 51-338 | ADAPTER - o-ring seal (suction) | 2 | |
| 48 | 61-2065 | TUBE - evaporator to compressor | 1 | |
| 49 | 92-1580 | CLAMP - tube (1/2) | 4 | |
| 92-1894 | CLAMP - tube (3/8) | 1 | ||
| 51-337 | CLAMP - tube (7/8) | 1 | ||
| 55-9898 | RIVET - clamp | 7 | ||
| 50 | 61-2064 | TUBE - valve to suction tank | 1 | |
| 51 | 61-2070 | TUBE - to expansion valve | 1 | |
| 33-3752 | INSULATION - suction tank | 1 | ||
| 52 | 67-1926 | TANK - suction | 1 | |
| 55-7339 | NUT - tank | 1 | ||
| 55-9485 | FLATWASHER | 1 | ||
| 53 | 61-2066 | TUBE - suction tank to joint | 1 | |
| 54 | 61-2069 | TUBE - straight | 1 | |
| 55 | 61-2067 | TUBE - joint to suction tank | 1 | |
| 56 | 61-2071 | TUBE - compressor to tube | 1 | |
| 61-415 | SHOULDER - o-ring seal | 1 | ||
| 55-9618 | NUT - o-ring seal | 1 | ||
| 33-1461 | O-RING (o-ring seal, #4 hose) | 1 | ||
| 57 | 55-9617 | ADAPTER - o-ring seal (#4 x 1/8 mpt) | 1 | |
| 58 | 92-2799 | BRACKET - compressor fitting | 1 | |
| 59 | 61-2068 | TUBE - tee to compressor | 1 | |
| 60 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 61 | 61-403 | VALVE - service port | 1 | |
| 11-7777 | VALVE (Schrader) | 1 | ||
| 62 | 92-8115 | BRACKET - oil separator | 1 | |
| 55-7340 | SCREW - bracket | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-9826 | FLATWASHER | 2 | ||
| 63 | 92-2800 | BRACKET - receiver tank | 1 | |
| 64 | 61-2060 | ADAPTER - relief valve | 1 | |
| 65 | 67-1925 | COIL - condenser | 1 | |
| 92-2795 | BRACKET - condenser coil | 1 | ||
| 55-7340 | SCREW - coil & bracket | 6 | ||
| 55-9826 | FLATWASHER | 9 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 55-7367 | NUT | 2 |
