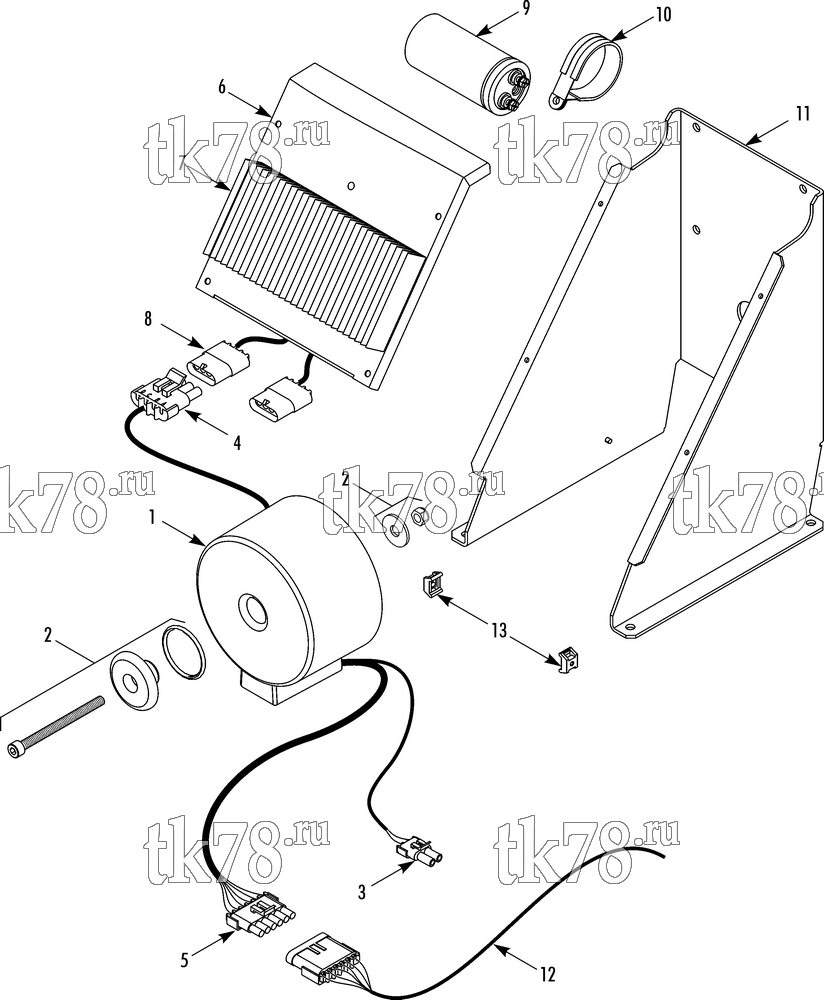

Установкa Thermo King V-600 MAX Series схема TRANSFORMER GROUP – 259B9
Обновление от: 4/26/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7943 | TRANSFORMER | 1 | |
| 2 | 51-875 | SCREW - transformer | 1 | |
| 55-7085 | FLATWASHER | 1 | ||
| 51-799 | WASHER | 1 | ||
| 33-4393 | O-RING | 1 | ||
| 51-1164 | WASHER | 1 | ||
| 55-7339 | NUT | 1 | ||
| 3 | 44-5838 | CONNECTOR - shroud (2-pin, see 115D14 for terminals) | 1 | |
| 4 | 41-6149 | CONNECTOR - female (4-pin) | 2 | |
| 5 | 44-8294 | CONNECTOR - tower (6-pin, see 11514) | 2 | |
| 6 | 92-9336 | COVER - transformer | 1 | |
| 51-2010 | SCREW - cover | 4 | ||
| 7 | 42-369 | HEATSINK - 12V units (inc rectifiers, harness and temp switch) | 1 | |
| 42-370 | HEATSINK - 24V units (inc rectifiers, harness and temp switch) | 1 | ||
| 8 | 41-6091 | CONNECTOR - male (4-pin) | 2 | |
| 44-2792 | TERMINAL - ring | 4 | ||
| 55-9348 | SCREW - heatsink | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 9 | 41-4941 | CAPACITOR (68000 mF) | 1 | |
| 10 | 92-1690 | CLAMP - capacitor | 1 | |
| 51-2012 | NUT | 1 | ||
| 11 | 92-9337 | SUPPORT - transformer | 1 | |
| 55-6994 | SCREW - support | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 12 | 42-235 | HARNESS - transformer to motor | 1 | |
| 44-8294 | CONNECTOR - shroud (6-pin) | 2 | ||
| 41-438 | TERMINAL - fork (16-14 #6 BLU) | 2 | ||
| 41-4973 | TERMINAL - fork (12-10 #6 YEL) | 2 | ||
| 13 | 55-8212 | HOLDER - bandwrap | 2 | |
| 55-9915 | RIVET - holder | 2 |
