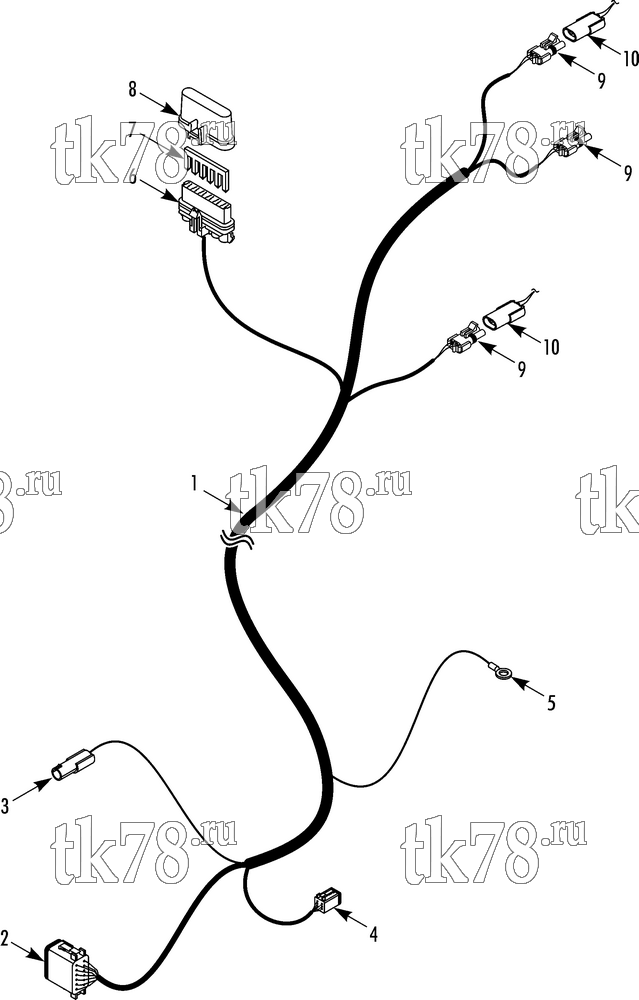

Установкa Thermo King V-520 схема EVAPORATOR HARNESS (SINGLE TEMP) – 241G6
Обновление от: 12/7/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8544 | HARNESS - evaporator (single temp) | 1 | |
| 2 | 41-5858 | CONNECTOR - 12-pin | 1 | |
| 44-9601 | WEDGE - 12-pin | 1 | ||
| 44-9593 | SOCKET - 14-16 ga | 5 | ||
| 3 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 44-5839 | TERMINAL - 16-14 ga | 1 | ||
| 4 | 44-8914 | CONNECTOR (6-pin, see 112D9 for terminals) | 1 | |
| 5 | 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | |
| 6 | 41-1789 | CONNECTOR - 6-pin (see 115D14 for terminals) | 1 | |
| 41-1790 | LOCK - secondary | 1 | ||
| 7 | 41-1788 | BUSBAR | 1 | |
| 8 | 41-1787 | COVER | 1 | |
| 9 | 44-5838 | CONNECTOR - 2-pin (male, see 115D14 for terminals) | 3 | |
| 10 | 44-5835 | CONNECTOR - 2-pin (female) | 2 |
