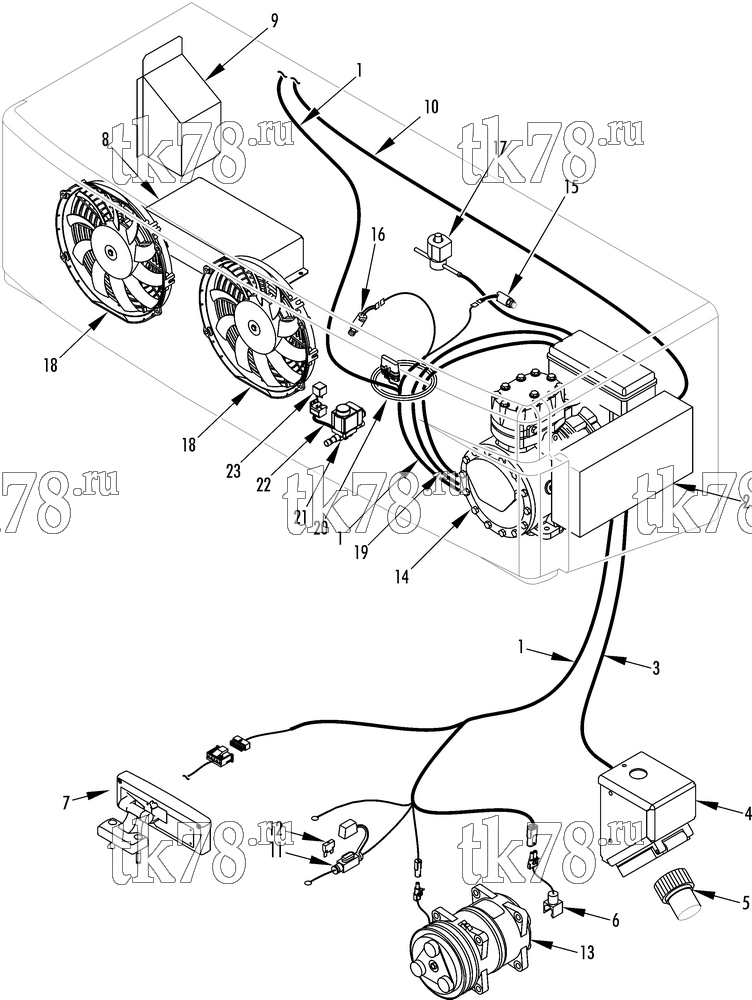

Установкa Thermo King V-520 схема ELECTRICAL COMPONENTS – 233E13
Обновление от: 1/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9108 | HARNESS - main (V-520 10 & 30, see 240C0) | 1 | |
| 41-9109 | HARNESS - main (V-520 20 & 50, see 241D6) | 1 | ||
| 2 | NSS | BOX - control (for 10 see 228F5, for 20 see 233C8) | 1 | |
| 3 | 41-6484 | CABLE - power (230/1/60) | 1 | |
| 41-6489 | CABLE - power (230/3/60) | 1 | ||
| 44-2792 | TERMINAL - ring (yellow, #10) | A/R | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | A/R | ||
| 4 | NSS | BOX - receptacle (see 200F4) | 1 | |
| 5 | 44-4697 | PLUG - power (230/1/60, before 4/12) | 1 | |
| 42-355 | PLUG - power (230/1/60, 4/12 & after) | 1 | ||
| 44-4695 | PLUG - power (230/3/60, before 4/12) | 1 | ||
| 42-356 | PLUG - power (230/3/60, 4/12 & after) | 1 | ||
| 44-9866 | TERMINAL - pin (14 ga) | 3 | ||
| 6 | 44-9020 | SWITCH - thermo (see 228F1) | 1 | |
| 7 | 45-2072 | CONTROLLER - in cab (see 191A6) | 1 | |
| 8 | NSS | BOX - capacitor (see 200F5) | 1 | |
| 9 | NSS | TRANSFORMER (see 233C6) | 1 | |
| 10 | 41-8544 | HARNESS - evaporator (see 241G6) | 1 | |
| 11 | 41-3665 | HOLDER - fuse | 1 | |
| 12 | 41-5786 | FUSE (40 amp) | 1 | |
| 13 | NSS | COMPRESSOR (see 259A8) | 1 | |
| NSS | COMPRESSOR - TK-312R (see 259A8) | 1 | ||
| 14 | 102-860 | COMPRESSOR (230/1/60, see 201C1) | 1 | |
| 102-858 | COMPRESSOR (230/3/60, see 201C1) | 1 | ||
| 15 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 16 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 17 | 66-5908 | VALVE - pilot (12V) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-5047 | COIL - valve (12V) | 1 | ||
| 66-7071 | VALVE - pilot (24V) | 1 | ||
| 41-1525 | COIL - valve (24V) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 18 | 78-1185 | FAN - condenser (12V) | 2 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 690 ₽ |
|
|
| 78-1376 | FAN - condenser (24V) | 2 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 19 | 41-8542 | CABLE - compressor (1 phase) | 1 | |
| 41-8543 | CABLE - compressor (3 phase) | 1 | ||
| 20 | 99-2280 | EXTRUSION - harness hole | 1 | |
| 21 | 66-9032 | SOLENOID - hot gas (see 193A5) | 1 | |
| 22 | 42-357 | HARNESS - hot gas solenoid | 1 | |
| 23 | 41-895 | RELAY - hot gas solenoid | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
