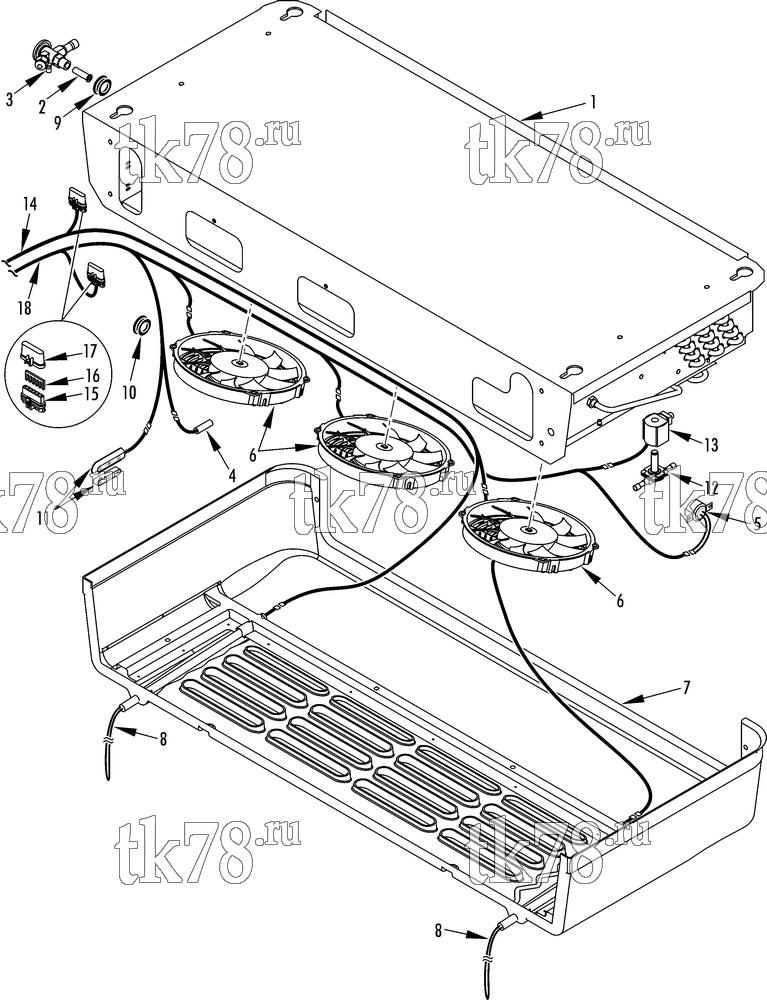

Установкa Thermo King V-520 схема EVAPORATOR GROUP (V-520) – 228F4
Обновление от: 8/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2383 | COIL - evaporator | 1 | |
| 2 | 61-1416 | FILTER - expansion valve | 1 | |
| 3 | 61-3849 | VALVE - expansion | 1 | |
| 61-3850 | VALVE - expansion (MAX units) | 1 | ||
| 4 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V/C-Series | 13 780 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V/C-Series | 9 420 ₽ |
|
|
| 55-9825 | CLAMP - sensor | 1 | ||
| 55-7366 | SCREW - sensor | 1 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 5 | 41-3136 | SWITCH - defrost termination | 1 | |
| 55-9900 | SCREW - switch | 2 | ||
| 6 | 78-1183 | FAN - evaporator (12V) | 3 | |
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| 78-1374 | FAN - evaporator (24V) | 3 | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 470 ₽ |
|
| 7 | 92-1901 | COVER - evaporator (before 7/11) | 1 | |
| 98-8761 | COVER - evaporator (7/11 & after) | 1 | ||
| 55-7366 | SCREW - cover | 20 | ||
| 55-7404 | LOCKWASHER | 20 | ||
| 55-9826 | FLATWASHER | 20 | ||
| 8 | 42-230 | HARNESS - drain tube heater (12V, for MAX units) | 2 | |
| 42-395 | HARNESS - drain tube heater (24V, for MAX units) | 2 | ||
| 9 | 33-572 | GROMMET (3/4 in) | 1 | |
| 10 | 33-3135 | GROMMET (35 mm) | 1 | |
| 11 | 40-907 | SWITCH - door | 1 | |
| 51-1321 | SCREW - switch (.75 in) | 2 | ||
| 55-8421 | SCREW - switch (1.0 in) | 2 | ||
| 12 | 66-7878 | SOLENOID - defrost | 1 | |
| 13 | 41-5789 | COIL - 12VDC | 1 | |
| 41-5791 | COIL - 24VDC | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 760 ₽ |
|
| PP-41-5791 | Катушка соленоида 24V, V-Series | 1 830 ₽ |
|
|
| 14 | 41-8544 | HARNESS - evaporator (see 241G6) | 1 | |
| 15 | 41-1790 | CONNECTOR - busbar | 1 | |
| 16 | 41-1788 | BUSBAR | 1 | |
| 17 | 41-1787 | COVER - connector | 1 | |
| 18 | 41-9108 | HARNESS - main (V-520 10 & 30, see 240C0) | 1 | |
| 41-9109 | HARNESS - main (V-520 20 & 50, see 241D6) | 1 |
