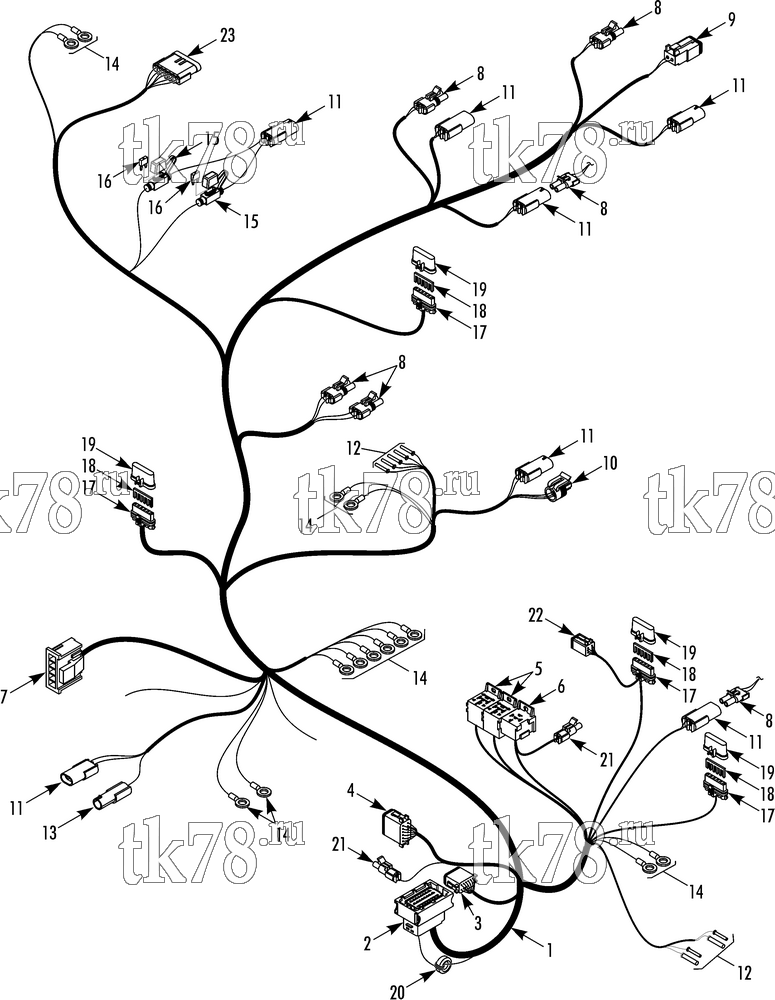

Установкa Thermo King V-520 SPECTRUM схема MAIN HARNESS V-500/ V-520 20 & 50 – 241D6
Обновление от: 5/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9109 | HARNESS - main (20 & 50 units) | 1 | |
| 2 | 41-5794 | CONNECTOR - 24-pin (female) | 1 | |
| 41-5792 | WEDGE - 24-pin | 1 | ||
| 41-6506 | TERMINAL - 1.5 MM | 15 | ||
| 41-6541 | TERMINAL - 2.8 MM | 4 | ||
| 41-6540 | TERMINAL - 1.5 MM | 1 | ||
| 3 | 44-9600 | PLUG - 12-pin (male) | 1 | |
| 4 | 41-5858 | PLUG - 12-pin (male, dark gray) | 1 | |
| 44-9601 | WEDGE - 12-pin | 3 | ||
| 44-9587 | SOCKET - 18 ga | 22 | ||
| 44-9593 | SOCKET - 14-16 ga | 15 | ||
| 5 | 41-5800 | HOLDER - relay (standby & battery) | 2 | |
| 6 | 44-5537 | HOLDER - relay (cir, control) | 1 | |
| 41-1760 | TERMINAL - fingrip (10-14 ga) | 1 | ||
| 41-6558 | TERMINAL - fingrip (6-10 ga) | 1 | ||
| 41-8931 | TERMINAL - fingrip (0.5-1 6.3) | 2 | ||
| 7 | 41-5804 | CONNECTOR - 5-pin (cab controller) | 1 | |
| 41-5805 | RETAINER - 5-pin | 1 | ||
| 41-6451 | TERMINAL - 2.5 MM | 5 | ||
| 8 | 44-5838 | CONNECTOR - 2-pin (male) | 6 | |
| 44-5884 | TERMINAL - 20-18 ga | 6 | ||
| 44-5839 | TERMINAL - 16-14 ga | 6 | ||
| 9 | 44-9585 | PLUG - 2-pin | 1 | |
| 44-9586 | WEDGE - 2-pin | 1 | ||
| 44-9593 | SOCKET - 14-16 ga | 2 | ||
| 10 | 41-5799 | CONNECTOR - transducer (3-pin female) | 1 | |
| 41-7747 | TERMINAL | 3 | ||
| 41-5799 | SEAL - terminal | 3 | ||
| 11 | 44-5835 | CONNECTOR - 2-pin (female) | 7 | |
| 44-5883 | TERMINAL - 20-18 ga | 14 | ||
| 13 | 44-7330 | CONNECTOR - 1-pin | 1 | |
| 41-8931 | TERMINAL - fingrip (0.5-1 6.3) | 1 | ||
| 14 | 44-2793 | TERMINAL - ring (1/4, yellow) | 6 | |
| 41-8964 | TERMINAL - ring (1/4, red) | 1 | ||
| 15 | 41-3074 | HOLDER - fuse | 2 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 16 | 41-4551 | FUSE (5 amp) | 2 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 17 | 41-1789 | CONNECTOR - 6-pin (see 115D14 for terminals) | 4 | |
| 41-1790 | LOCK - secondary | 4 | ||
| 18 | 41-1788 | BUSBAR | 4 | |
| 19 | 41-1787 | COVER | 4 | |
| 20 | 41-8545 | FERRITE - torrid | 1 | |
| 21 | 44-7327 | CONNECTOR - 1-pin | 1 | |
| 22 | 44-8920 | PLUG - 6-pin (for terminals see 112D9) | 1 | |
| 23 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 |
