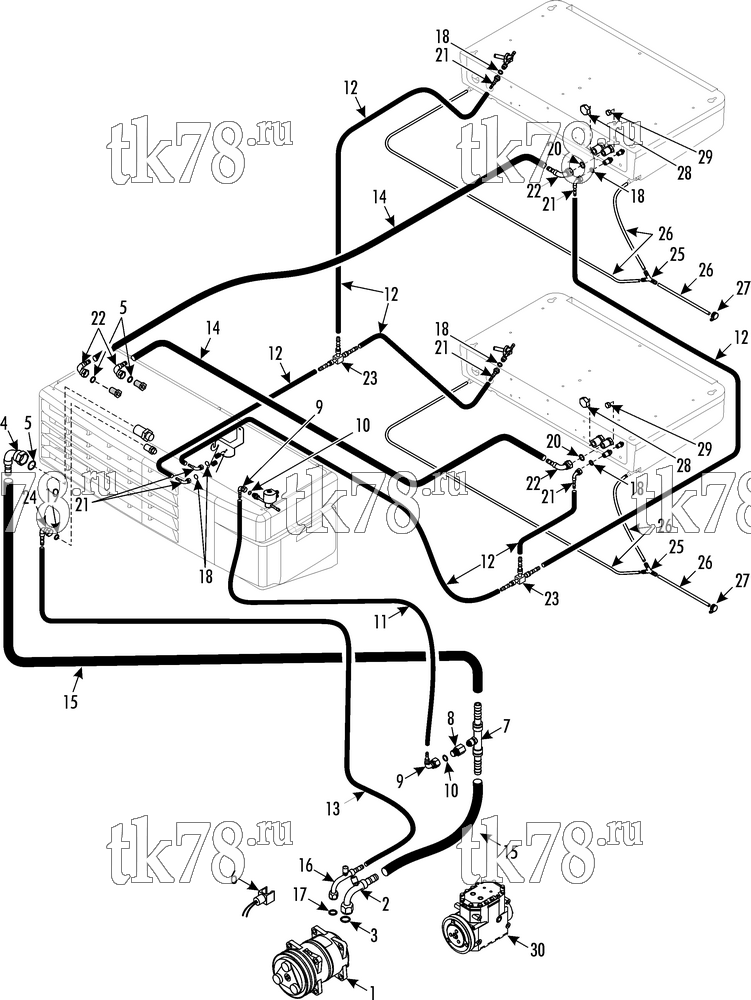

Установкa Thermo King V-520 SPECTRUM схема HOSE GROUP – 241B2
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see compressor grids) | 1 | |
| 2 | 51-2499 | FITTING - 90 deg (w/ charging port, #16 hose & #12 fitting) | 1 | |
| 3 | 33-672 | O-RING (9/16 id, #12) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 4 | 51-2498 | FITTING - suction (90 deg, #16 hose, #12 fitting) | 1 | |
| 5 | 33-1222 | O-RING (3/4 id, #12) | 3 | |
| 6 | 44-9020 | SWITCH - thermo (jet cool) | 1 | |
| 7 | 51-2425 | SPLICE (#16 hose w/ 7/16-20 charging port) | 1 | |
| 8 | 66-5029 | ADAPTER | 1 | |
| 66-5028 | FILTER - adapter | 1 | ||
| 9 | 51-2437 | FITTING - jet cool (90 deg, #4) | 2 | |
| 10 | 33-1461 | O-RING (5/16 id, #4) | 2 | |
| 11 | 67-1782 | HOSE - refrigeration (#4, see 165D6) | A/R | |
| 12 | 67-1708 | HOSE - refrigeration (#6) | A/R | |
| 13 | 67-1709 | HOSE - refrigeration (#8) | A/R | |
| 14 | 67-1711 | HOSE - refrigeration (#12) | A/R | |
| 15 | 61-3048 | HOSE - refrigeration (#16) | A/R | |
| 16 | 51-2432 | FITTING - 90 deg (w/ 7/16-20 charging port, #8) | 1 | |
| 17 | 33-2350 | O-RING (7/16 id, #8) | 1 | |
| 18 | 33-1015 | O-RING (3/8 id, #6) | 6 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 19 | 33-566 | O-RING (1/2 id, #8) | 1 | |
| 20 | 33-2115 | O-RING (5/8 id, #10) | 4 | |
| 21 | 51-2436 | FITTING (90 deg, #6) | 4 | |
| 51-2482 | FITTING (straight, #6) | 2 | ||
| 22 | 51-2488 | FITTING - 90 deg (o-ring seal, #12 hose x #10 fitting) | 4 | |
| 23 | 51-753 | SPLICER (#6) | 2 | |
| 24 | 51-2423 | FITTING (90 deg, #8) | 1 | |
| 25 | 55-9258 | CONNECTOR - hose (Y) | 2 | |
| 26 | 11-9223 | HOSE - drain | A/R | |
| 27 | 55-3359 | CLAMP - hose (7/8 in.) | 6 | |
| 55-2570 | CLAMP - hose (1-3/4 in.) | 4 | ||
| 55-6808 | CLAMP - hose (2.0 in.) | 3 | ||
| 51-346 | SCREW - clamp | 13 | ||
| 28 | 51-1175 | CAP (#12) | 2 | |
| 29 | 51-913 | CAP (#4) | 2 | |
| 30 | 102-811 | COMPRESSOR - TK-208R (8V 12VDC) | 1 | |
| 107-339 | CLUTCH (8V 12VDC) | 1 |
