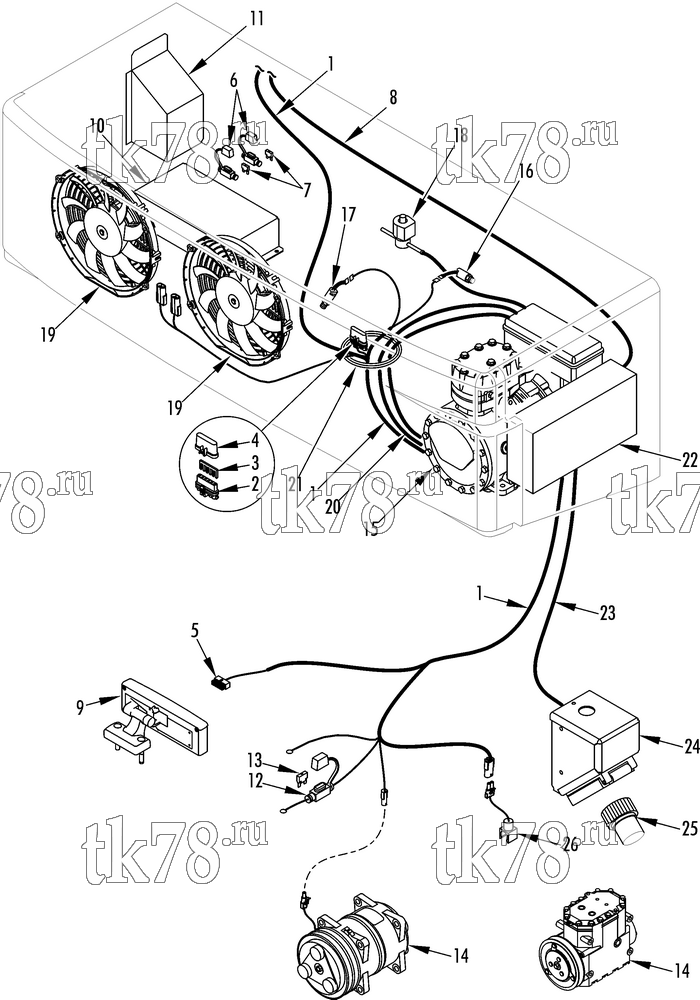

Установкa Thermo King V-520 SPECTRUM схема ELECTRICAL COMPONENTS – 240C7
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9108 | HARNESS - main (V-520 10) | 1 | |
| 41-9825 | HARNESS - main (V-520 10, 4/10 & after) | 1 | ||
| 41-9109 | HARNESS - main (V-520 20) | 1 | ||
| 41-9827 | HARNESS - main (V-520 20, 4/10 & after) | 1 | ||
| 2 | 41-1789 | CONNECTOR - female | 2 | |
| 41-1790 | LOCK - secondary | 2 | ||
| 3 | 41-1788 | BUSBAR | 2 | |
| 4 | 41-1787 | COVER - connector | 2 | |
| 5 | 41-5804 | CONNECTOR - cab box | 1 | |
| 6 | 41-3074 | HOLDER - fuse | 2 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 7 | 41-4551 | FUSE (5 amp) | 2 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 8 | 41-9216 | HARNESS - evaporator (multi temp) | 1 | |
| 41-9826 | HARNESS - evaporator (multi temp, 4/10 & after) | 1 | ||
| 9 | 45-2072 | CONTROLLER - in cab (see 191A6) | 1 | |
| 10 | NSS | BOX - capacitor (see 200F5) | 1 | |
| 11 | NSS | TRANSFORMER (see 233C6) | 1 | |
| 12 | 41-3665 | HOLDER - fuse | 1 | |
| 13 | 41-3666 | FUSE (60 amp) | 1 | |
| 14 | NSS | COMPRESSOR (see 241B2) | 1 | |
| 15 | 102-860 | COMPRESSOR (230/1/60, see 201C1) | 1 | |
| 102-858 | COMPRESSOR (230/3/60, see 201C1) | 1 | ||
| 16 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 17 | 41-5781 | TRANSDUCER | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 18 | 66-5908 | VALVE - pilot (12V) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-5047 | COIL - valve (12V) | 1 | ||
| 66-7071 | VALVE - pilot (24V) | 1 | ||
| 41-1525 | COIL - valve (24V) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 19 | 78-1185 | FAN - condenser (12V) | 2 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 870 ₽ |
|
|
| 78-1376 | FAN - condenser (24V) | 2 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 20 | 41-8542 | CABLE - compressor (1 phase) | 1 | |
| 41-8543 | CABLE - compressor (3 phase) | 1 | ||
| 21 | 99-2280 | EXTRUSION - harness hole | 1 | |
| 22 | NSS | BOX - control (for 10 see 200E7, for 20 see 200F3) | 1 | |
| 23 | 41-6484 | CABLE - power (230/1/60) | 1 | |
| 41-6489 | CABLE - power (230/3/60) | 1 | ||
| 44-2792 | TERMINAL - ring (yellow, #10) | A/R | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | A/R | ||
| 24 | NSS | BOX - receptacle (see 162A3) | 1 | |
| 25 | 44-4697 | PLUG - power (230/1/60) | 1 | |
| 44-4695 | PLUG - power (230/3/60) | 1 | ||
| 44-9866 | TERMINAL - pin (14 ga) | 3 | ||
| 26 | 44-9020 | THERMOSTAT (see 200E3) | 1 |
