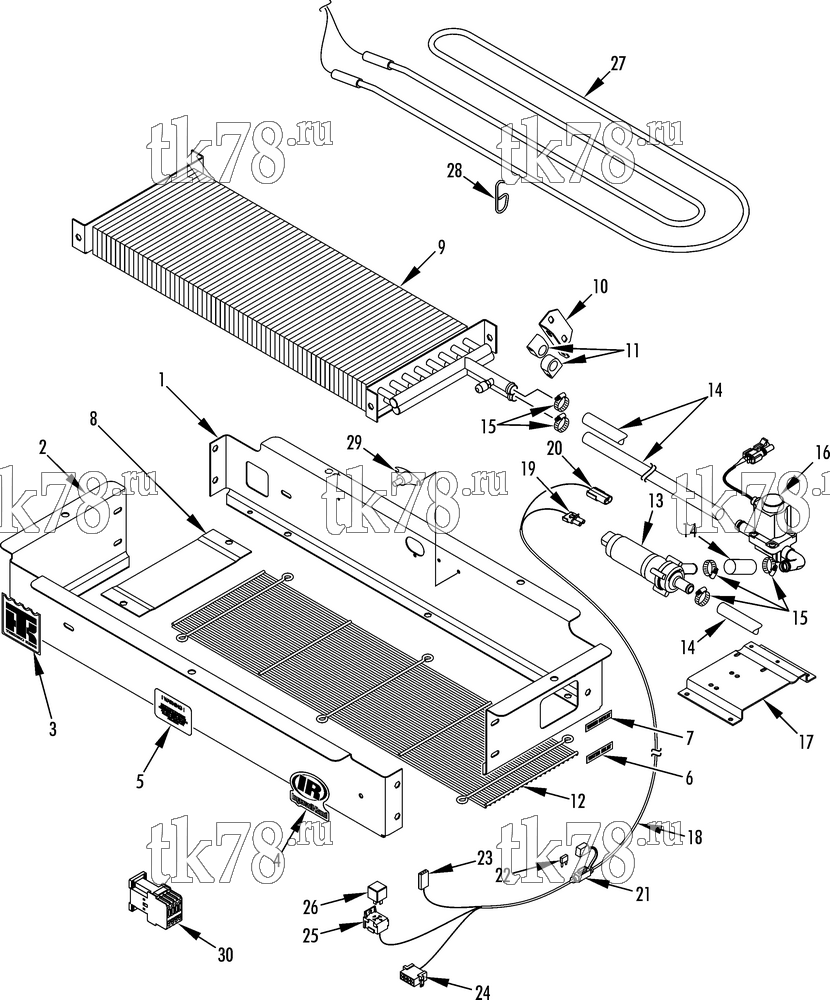

Установкa Thermo King V-520 SPECTRUM схема WATER HEATER – 240C6
Обновление от: 2/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-5142 | PANEL - unit frame (back) | 1 | |
| 55-9698 | INSERT - threaded | 18 | ||
| 2 | 92-5143 | PANEL - unit frame (front) | 1 | |
| 55-6994 | SCREW - panel | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 3 | 99-2789 | NAMEPLATE - TK | 1 | |
| 4 | 92-1307 | NAMEPLATE - IR | 1 | |
| 5 | 91-7817 | NAMEPLATE - Warning, Coolant | 1 | |
| 6 | 99-7876 | NAMEPLATE - Water Inlet | 1 | |
| 7 | 91-5528 | NAMEPLATE - Water Outlet | 1 | |
| 8 | 92-5144 | PANEL - blockoff | 1 | |
| 9 | 67-2165 | COIL - heater | 1 | |
| 10 | 92-5145 | BRACKET - heater tubes | 1 | |
| 11 | 91-758 | CLAMP - tube | 2 | |
| 55-8464 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 2 | ||
| 12 | 98-6772 | GRILLE - heater | 1 | |
| 13 | 41-2233 | PUMP - water (12V) | 1 | |
| 41-9326 | HARNESS - pump | 1 | ||
| 55-7169 | SCREW - pump | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7042 | NUT | 2 | ||
| 14 | 98-796 | HOSE - coolant | A/R | |
| 15 | 55-6726 | CLAMP - hose | A/R | |
| 16 | 61-3507 | VALVE - water (12V) | 1 | |
| 41-3681 | COIL (12V) | 1 | ||
| 41-3681 OEM | Катушка соленоида | 24 630 ₽ |
|
|
|
10-41-3681 | Катушка соленоида 12V | 12 220 ₽ |
|
| 55-7169 | SCREW - valve | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 17 | 92-5823 | BRACKET - pump & valve | 1 | |
| 18 | 41-6491 | HARNESS - water heat | 1 | |
| 19 | 44-5838 | CONNECTOR - pump | 1 | |
| 20 | 44-5835 | CONNECTOR - solenoid | 1 | |
| 21 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 22 | 41-4551 | FUSE (5 amp) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 23 | 41-6911 | CONNECTOR (3-pin) | 1 | |
| 24 | 41-4493 | CONNECTOR (8-pin) | 1 | |
| 25 | 44-5537 | SOCKET - relay | 1 | |
| 26 | 41-895 | RELAY - mini (12VDC) | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 27 | 45-2081 | HEATER - 230V | 1 | |
| 28 | 91-240 | RETAINER - heater | 8 | |
| 29 | 41-6531 | SWITCH - limit | 1 | |
| 51-1305 | SCREW - switch | 2 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7665 | NUT | 2 | ||
| 30 | 41-8334 | CONTACTOR (12V) | 1 |
