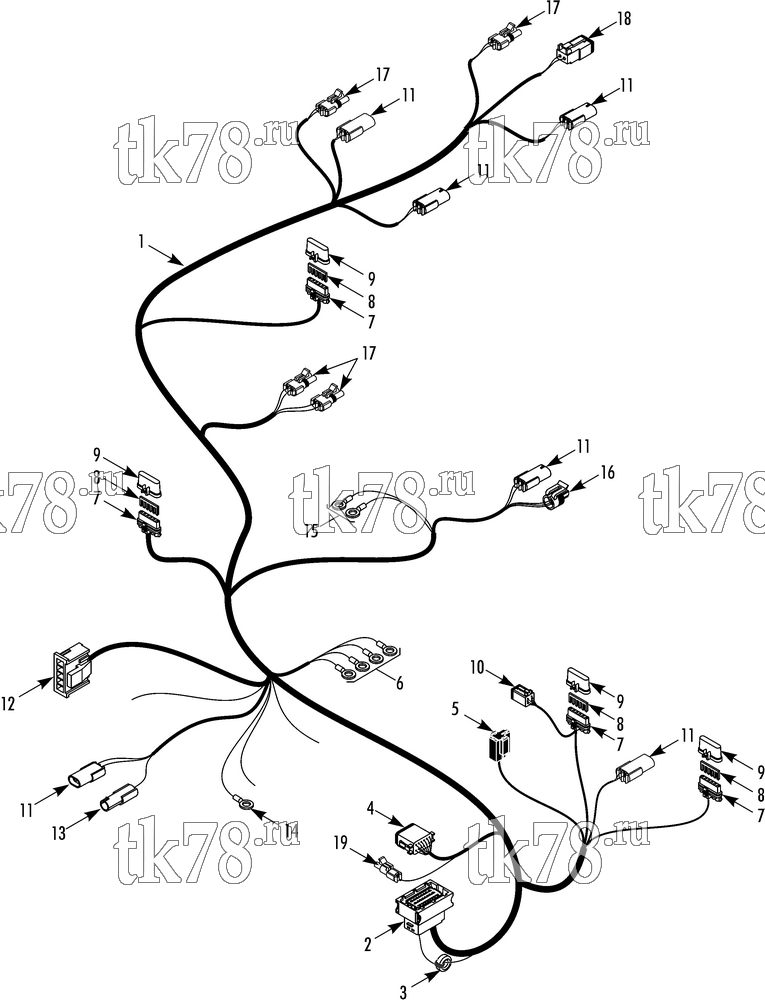

Установкa Thermo King V-520 SPECTRUM схема MAIN HARNESS V-500/ V-520 10 & 30 – 240C0
Обновление от: 5/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9108 | HARNESS - main (10 & 30 units) | 1 | |
| 2 | 41-5794 | CONNECTOR - 24-pin (female, uP1 - connection 1) | 1 | |
| 41-5792 | WEDGE - 24-pin | 1 | ||
| 41-6506 | TERMINAL - 1.5 MM | 12 | ||
| 41-6541 | TERMINAL - 2.8 MM | 3 | ||
| 41-6540 | TERMINAL - 1.5 MM | 1 | ||
| 3 | 41-8545 | FERRITE - torrid | 1 | |
| 4 | 44-9600 | PLUG - 12-pin (male, uP1 - connection 2) | 1 | |
| 44-9601 | WEDGE - 12-pin | 1 | ||
| 44-9587 | SOCKET - 18 ga | 3 | ||
| 44-9593 | SOCKET - 14-16 ga | 9 | ||
| 5 | 41-1325 | SOCKET - relay (battery) | 1 | |
| 41-6558 | TERMINAL - fingrip (6-10 ga) | 2 | ||
| 41-4494 | TERMINAL - fingrip (1-2.5 6.3) | 2 | ||
| 6 | 41-438 | TERMINAL - fork (16-14 ga) | 10 | |
| 41-4973 | TERMINAL - fork (12-10 ga) | 2 | ||
| 7 | 41-1789 | CONNECTOR - 6-pin (see 115D14 for terminals) | 4 | |
| 41-1790 | LOCK - secondary | 4 | ||
| 8 | 41-1788 | BUSBAR | 4 | |
| 44-7812 | PLUG - cavity | 5 | ||
| 9 | 41-1787 | COVER | 4 | |
| 10 | 44-8920 | PLUG - 6-pin (for terminals see 112D9) | 1 | |
| 11 | 44-5835 | CONNECTOR - 2-pin (female) | 6 | |
| 44-5883 | TERMINAL - 20-18 ga | 12 | ||
| 12 | 41-5804 | CONNECTOR - 5-pin (cab controller) | 1 | |
| 41-5805 | RETAINER - 5-pin | 1 | ||
| 41-6451 | TERMINAL - 2.5 MM | 5 | ||
| 13 | 44-7330 | CONNECTOR - 1-pin (clutch) | 1 | |
| 41-8931 | TERMINAL - fingrip (0.5-1 6.3) | 1 | ||
| 14 | 41-6709 | TERMINAL - CH (ground lug, 3/8 8 ga) | 1 | |
| 41-9214 | TERMINAL - battery | 1 | ||
| 15 | 44-7245 | TERMINAL - ring (liquid inj solenoid, 10 22-16 ga) | 2 | |
| 16 | 41-5799 | CONNECTOR - transducer (3-pin female) | 1 | |
| 41-7747 | TERMINAL | 3 | ||
| 41-5799 | SEAL - terminal | 3 | ||
| 17 | 44-5838 | CONNECTOR - 2-pin (male, see 115D14 for terminals) | 4 | |
| 18 | 44-9585 | PLUG - 2-pin (see 112D9 for terminals) | 1 | |
| 19 | 44-7327 | CONNECTOR - tower (1-pin) | 1 |
