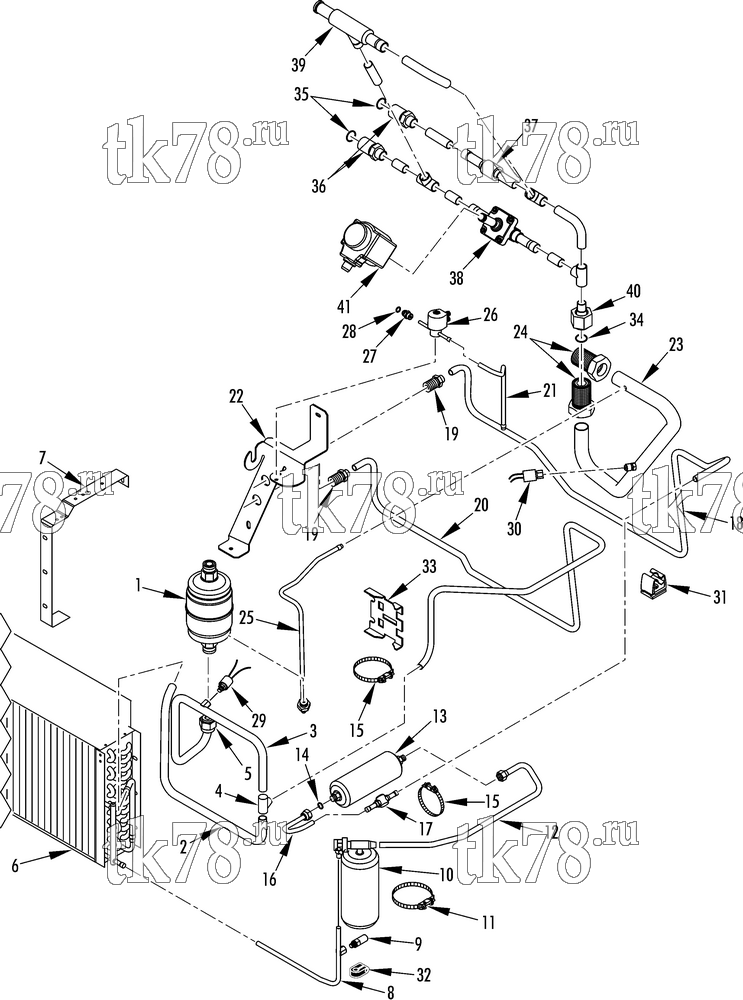

Установкa Thermo King V-520 SPECTRUM схема REFRIGERATION GROUP (V-520 10 SPECTRUM) – 233E2
Обновление от: 4/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 370 ₽ |
|
| 33-566 | O-RING (1/2, #8) | 2 | ||
| 2 | 61-1411 | TUBE - tee to condenser | 1 | |
| 3 | 61-4340 | TUBE - discharge (separator to tee) | 1 | |
| 4 | 55-2181 | TEE | 1 | |
| 5 | 61-469 | NUT - o-ring seal | 1 | |
| 61-470 | SHOULDER - o-ring seal | 1 | ||
| 6 | 67-2382 | COIL - condenser | 1 | |
| 55-8375 | NUT - captive | 8 | ||
| 55-7340 | SCREW - coil | 6 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 55-9826 | FLATWASHER | 9 | ||
| 7 | 92-5822 | BRACKET - condenser coil | 1 | |
| 55-7172 | SCREW - bracket | 5 | ||
| 55-8893 | WASHER - fender | 5 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-9485 | FLATWASHER | 1 | ||
| 8 | 61-3022 | TUBE - condenser coil to receiver | 1 | |
| 61-2599 | FITTING - valve | 1 | ||
| 9 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 10 | 67-2143 | TANK - receiver | 1 | |
| 11 | 55-7800 | CLAMP - receiver tank | 1 | |
| 12 | 61-4337 | TUBE - receiver tank to dehydrator | 1 | |
| 55-9286 | SHOULDER - o-ring | 1 | ||
| 55-9009 | NUT - o-ring | 1 | ||
| 13 | 66-8471 | DEHYDRATOR | 1 | |
|
14-00326-03 OEM | Дегидратор, Supra/Xarios | 5 870 ₽ |
|
|
P-14-00326-03 | Дегидратор, Supra/Xarios | 2 820 ₽ |
|
|
PP-14-00326-03 | Дегидратор, Supra/Xarios | 1 300 ₽ |
|
| 14 | 33-1015 | O-RING (#6) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 15 | 55-6225 | BAND - dehydrator & oil separator | 2 | |
| 16 | 61-4537 | TUBE - dehydrator to sight glass | 1 | |
| 55-9286 | SHOULDER - o-ring | 1 | ||
| 17 | 61-4565 | INDICATOR - liquid | 1 | |
| 18 | 61-4338 | TUBE - sight glass to evaporator | 1 | |
| 55-9009 | NUT - o-ring | 1 | ||
| 19 | 61-434 | ADAPTER - defrost & liquid (#6) | 2 | |
| 55-6780 | NUT - adapter (#6) | 2 | ||
| 20 | 61-4339 | TUBE - defrost (hot gas) | 1 | |
| 21 | 61-4341 | TUBE - liquid injection | 1 | |
| 22 | 92-7075 | BRACKET - fitting | 1 | |
| 23 | 61-4678 | TUBE - evaporator to compressor | 1 | |
| 24 | 55-7622 | ADAPTER - suction (#16) | 2 | |
| 55-6812 | NUT - adapter (#16) | 1 | ||
| 25 | 61-3954 | TUBE - oil separator to suction tube | 1 | |
| 51-951 | SHOULDER | 1 | ||
| 51-952 | NUT - o-ring seal | 1 | ||
| 61-403 | VALVE - service port | 1 | ||
| 11-7777 | VALVE (Schrader) | 1 | ||
| 26 | 66-5908 | SOLENOID - pilot (liquid injection, 12V, see 200E3) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 27 | 55-9923 | ADAPTER (#4) | 1 | |
| 28 | 33-1461 | O-RING (5/16 id, #4) | 1 | |
| 29 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 30 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 31 | 92-1894 | SADDLE - tube | 4 | |
| 55-9898 | RIVET - saddle | 4 | ||
| 32 | 55-6388 | CLAMP - tube (3/8 dia) | 1 | |
| 55-6389 | CLAMP - tube (1/2 dia) | 1 | ||
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 33 | 92-4588 | SUPPORT - oil filter | 1 | |
| 55-6994 | SCREW - support | 2 | ||
| 55-8893 | WASHER - fender | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 34 | 33-1222 | O-RING | 1 | |
| 35 | 33-2115 | O-RING | 2 | |
| 61-4937 | TUBE ASSEMBLY - suction | 1 | ||
| 36 | 61-432 | FITTING - o-ring seal (#10) | 2 | |
| 37 | 61-230 | VALVE - check | 1 | |
| 38 | 61-4938 | VALVE - suction | 1 | |
| 39 | 08-254 | REGULATOR - suction pressure | 1 | |
| 40 | 55-7054 | NUT - shoulder | 1 | |
| 55-7052 | SLEEVE | 1 | ||
| 41 | 41-5789 | COIL - valve (12V) | 1 | |
| 41-5791 | COIL - valve (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 200 ₽ |
|
