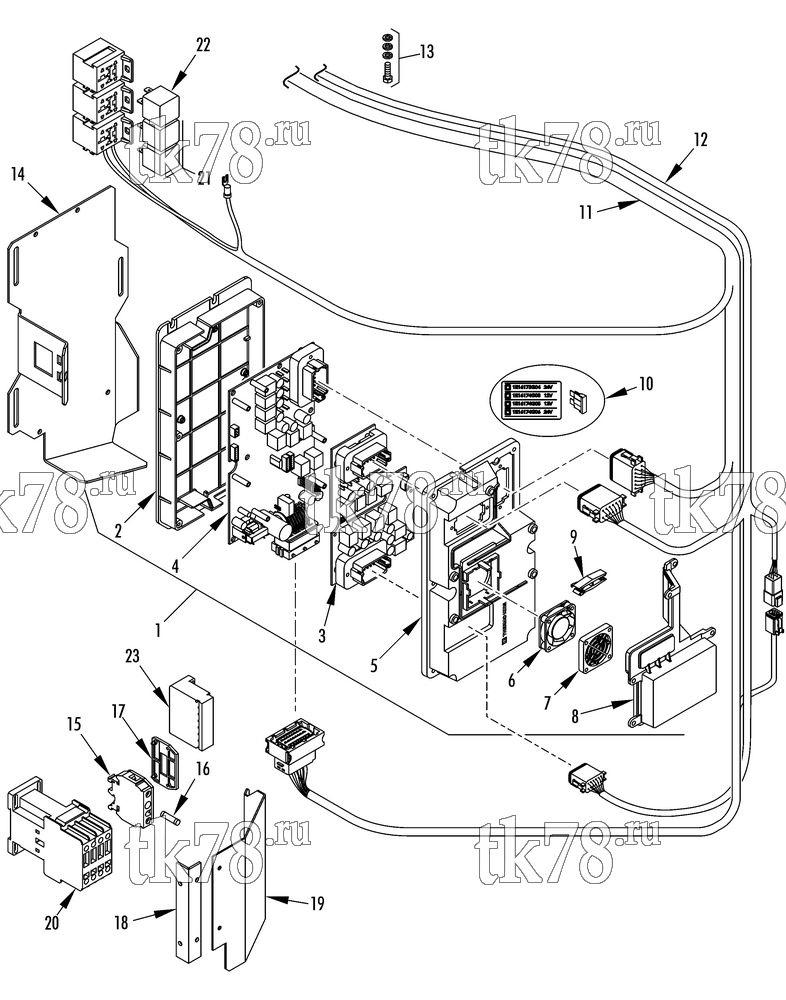

Установкa Thermo King V-520 SPECTRUM схема CONTROL BOX (V-520 20/50) – 233C8
Обновление от: 5/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2193 | MODULE - control box 24V (requires kit 40-1182 for 24V units) | 1 | |
| 2 | 92-3470 | COVER - base | 1 | |
| 3 | NSS | BOARD - pc (platform #1) | 1 | |
| 4 | NSS | BOARD - pc (platform #2) | 1 | |
| 5 | 92-3579 | COVER - front | 1 | |
| 6 | 41-5480 | FAN - pc board | 1 | |
| 7 | 92-3472 | FILTER - fan | 1 | |
| 8 | 92-3473 | COVER - fuse access | 1 | |
| 9 | 204-1101 | PULLER - fuse | 1 | |
| 10 | 40-1182 | KIT - fuse & decal | 1 | |
| 41-3080 | FUSE (2 amp, gray) | A/R | ||
| 41-4551 | FUSE (5 amp, tan) | A/R | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4552 | FUSE (7.5 amp, brown) | A/R | ||
| 30-41-4552 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4553 | FUSE (10 amp, red) | A/R | ||
| 41-4554 | FUSE (15 amp, blue) | A/R | ||
| 41-4555 | FUSE (20 amp, yellow) | A/R | ||
| 11 | 41-9109 | HARNESS - main (V-520 20/50, see 240C0) | 1 | |
| 12 | 41-8544 | HARNESS - evaporator (single temp units, see 241G6) | 1 | |
| 41-9216 | HARNESS - evaporator (multi temp units, see 241D7) | 1 | ||
| 41-9826 | HARNESS - evaporator (multi temp units, 4/10 & after) | 1 | ||
| 13 | 55-7340 | SCREW - ground | 1 | |
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7370 | LOCKWASHER (internal tooth) | 2 | ||
| 55-9826 | WASHER | 1 | ||
| 55-7367 | NUT | 2 | ||
| 203-454 | MASTIC - heat transfer | A/R | ||
| 14 | 92-7076 | PANEL - control box | 1 | |
| 55-7034 | NUT - panel | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 15 | 41-942 | SOCKET - fuse | 1 | |
| 16 | 41-3661 | FUSE (4 amp, early units) | 1 | |
| 41-5863 | FUSE (5 amp, current units) | 1 | ||
| 17 | 41-944 | COVER - connector | 1 | |
| 18 | 92-7337 | HINGE - cover | 1 | |
| 55-9898 | RIVET - hinge | 2 | ||
| 19 | 92-3854 | COVER - components | 1 | |
| 55-7089 | FLATWASHER | 2 | ||
| 55-9826 | LOCKWASHER | 2 | ||
| 55-7034 | NUT | 2 | ||
| 20 | 42-271 | CONTACTOR - compressor (12V) | 1 | |
| 41-9244 | CONTACTOR - compressor (24V) | 1 | ||
| 21 | 41-5788 | RELAY - standby & battery (12V) | 2 | |
| 41-5793 | RELAY - standby & battery (24V) | 2 | ||
| 22 | 41-895 | RELAY - switch (12V) | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY - switch (24V) | 1 | ||
| 23 | 41-901 | MODULE - control | 1 |
