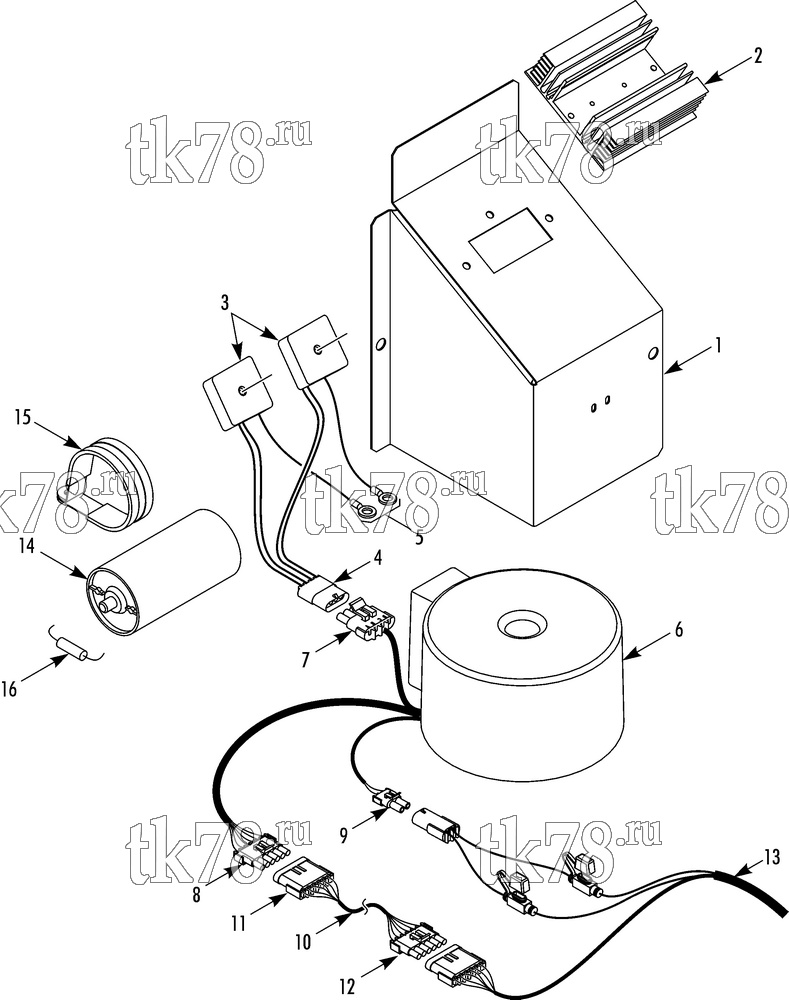

Установкa Thermo King V-520 SPECTRUM схема TRANSFORMER GROUP – 233C6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7561 | COVER - transformer | 1 | |
| 91-9989 | TAPE - sealant (gasket) | A/R | ||
| 55-7172 | SCREW - cover | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 2 | 41-977 | RADIATOR - diode | 1 | |
| 203-454 | MASTIC - heat transfer | A/R | ||
| 55-9452 | SCREW - radiator | 2 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7698 | NUT | 2 | ||
| 3 | 41-6030 | HARNESS - rectifier (12V) | 1 | |
| 41-6031 | HARNESS - rectifier (24V) | 1 | ||
| 41-363 | RECTIFIER | 2 | ||
| 4 | 41-6091 | CONNECTOR - male (4-pin) | 1 | |
| 41-7366 | TERMINAL - male | 4 | ||
| 41-7946 | SEAL - terminal | 4 | ||
| 5 | 44-2792 | TERMINAL - ring | 2 | |
| 6 | 41-7943 | TRANSFORMER | 1 | |
| 51-875 | SCREW - transformer | 1 | ||
| 51-799 | WASHER - special | 1 | ||
| 33-4393 | O-RING | 1 | ||
| 55-7085 | LOCKWASHER | 1 | ||
| 55-7339 | NUT | 1 | ||
| 7 | 41-6149 | CONNECTOR - female (4-pin) | 1 | |
| 41-7366 | TERMINAL - female | 4 | ||
| 41-7946 | SEAL - terminal | 4 | ||
| 8 | 44-7872 | CONNECTOR - tower (6-pin, see 11514) | 1 | |
| 9 | 44-5838 | CONNECTOR - 2-pin (male, see 115D14 for terminals) | 3 | |
| 10 | 41-8731 | HARNESS - transformer (3 phase) | 1 | |
| 11 | 44-8294 | CONNECTOR - shroud (6-pin, see 115D14) | 1 | |
| 12 | 44-7872 | CONNECTOR - tower (6-pin, see 115D14) | 1 | |
| 13 | 41-9109 | HARNESS - condenser (see 241D6) | 1 | |
| 14 | 41-4941 | CAPACITOR (68000 mf) | 1 | |
| 15 | 55-6808 | CLAMP - capacitor | 1 | |
| 55-7042 | NUT - clamp | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 16 | 44-9925 | RESISTOR (2200 ohm) | 1 |
