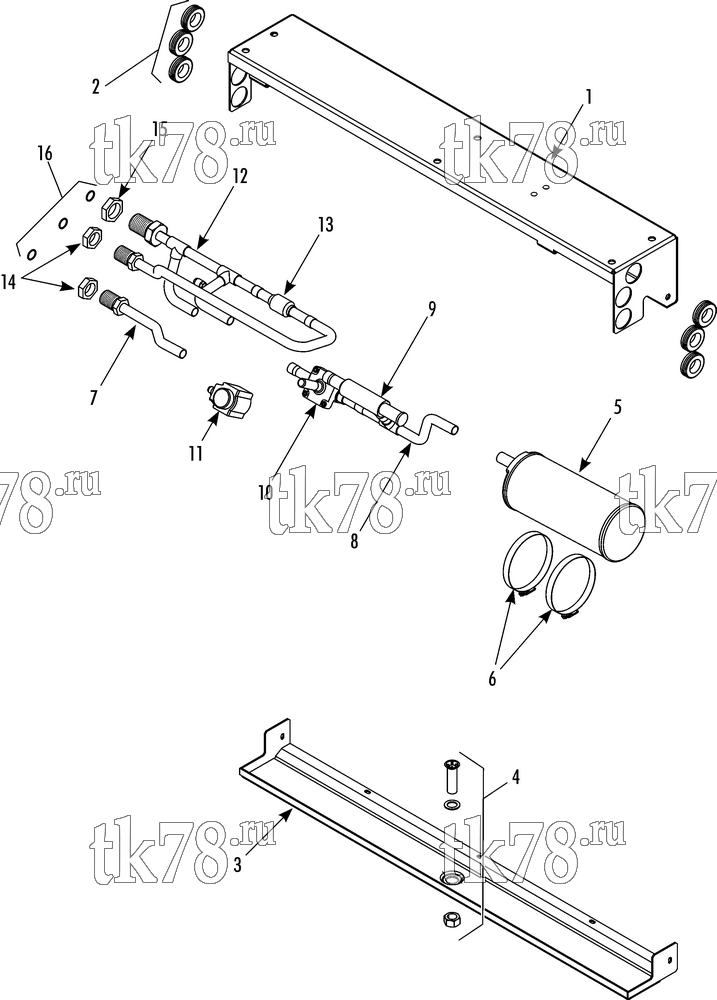

Установкa Thermo King V-520 RT SPECTRUM схема REFRIGERATION ACCUMULATOR MODULE – 259G1
Обновление от: 6/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9015 | COVER - accumulator | 1 | |
| 2 | 33-629 | GROMMET | 6 | |
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7354 | NUT | 6 | ||
| 3 | 98-9016 | PAN - drain | 1 | |
| 99-4976 | STRIP - gasket | A/R | ||
| 4 | 92-3466 | TUBE - drain | 1 | |
| 51-791 | WASHER - EPDM | 1 | ||
| 51-790 | NUT - drain tube | 1 | ||
| 55-9761 | SCREW - drain pan | 5 | ||
| 5 | 67-2725 | TANK - accumulator | 1 | |
| 6 | 51-1219 | CLAMP - accumulator | 1 | |
| 7 | 61-6169 | TUBE - inlet | 1 | |
| 8 | 61-6077 | TUBE - outlet (inc regulator & solenoid body) | 1 | |
| 9 | 08-254 | REGULATOR - suction pressure | 1 | |
| 10 | 61-4938 | SOLENOID - suction | 1 | |
| 11 | 41-5789 | COIL - solenoid | 1 | |
| 12 | 61-6078 | TUBE - solenoid to fittings | 1 | |
| 13 | 61-230 | VALVE - check | 1 | |
| 14 | 55-6811 | NUT - bulkhead (1-14) | 2 | |
| 15 | 55-6812 | NUT - bulkhead (1-3/16-12) | 1 | |
| 16 | 33-2115 | O-RING | 3 |
