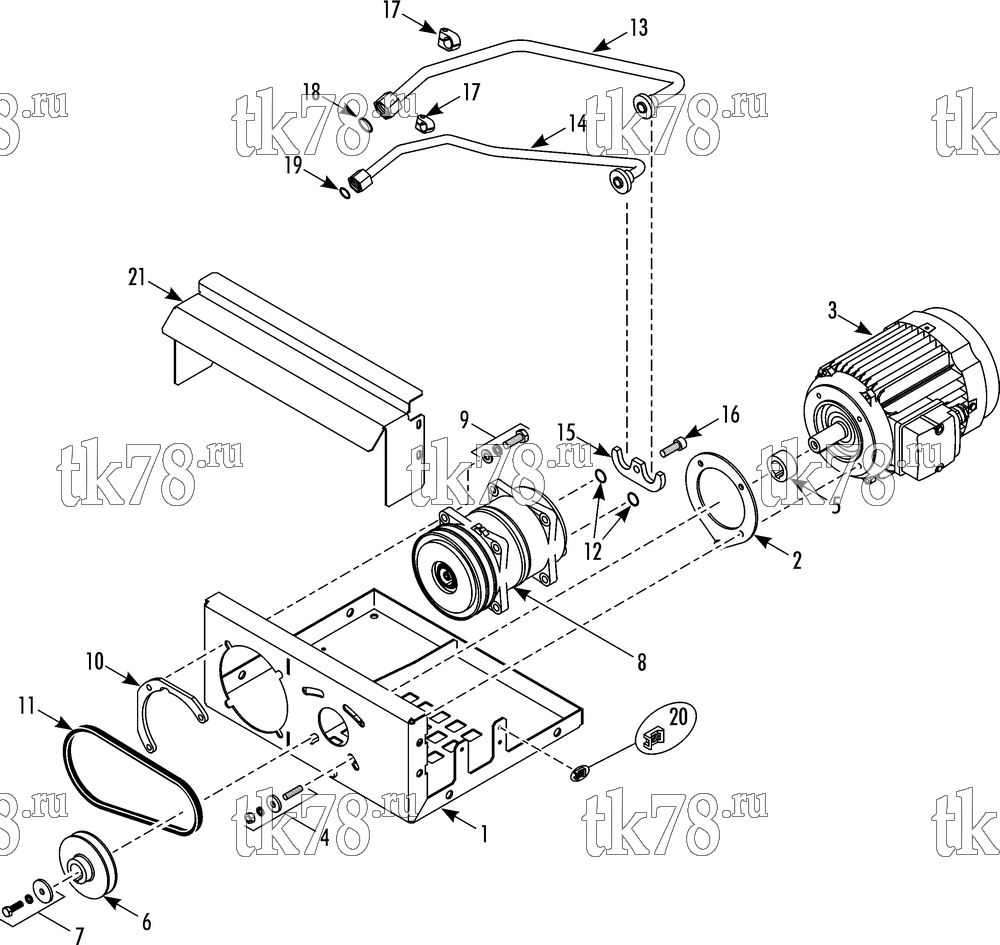

Установкa Thermo King V-520 RT SPECTRUM схема DRIVE MOTOR & COMPRESSOR – 255D8
Обновление от: 6/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9421 | BRACKET - motor | 1 | |
| 55-7412 | SCREW - bracket | 4 | ||
| 55-8537 | LOCKWASHER | 4 | ||
| 55-8536 | FLATWASHER | 4 | ||
| 2 | 77-2877 | PLATE - gyratory | 1 | |
| 3 | 104-769 | MOTOR (1.5 kW, 208-230/1/60) | 1 | |
| 104-799 | MOTOR (1.8kW, 208-230/3/60) | 1 | ||
| 4 | 55-4620 | STUD - motor | 4 | |
| 55-8577 | WASHER - special | 4 | ||
| 55-7066 | LOCKWASHER | 5 | ||
| 55-7825 | NUT | 4 | ||
| 5 | 77-2601 | SPACER - pulley | 1 | |
| 6 | 77-2590 | PULLEY | 1 | |
| 7 | 55-6993 | SCREW - pulley | 1 | |
| 55-8560 | WASHER - special | 1 | ||
| 8 | 102-1035 | COMPRESSOR (see 179A7) | 1 | |
| 9 | 55-7355 | SCREW - compressor | 3 | |
| 55-8536 | FLATWASHER | 3 | ||
| 55-8537 | LOCKWASHER | 3 | ||
| 10 | 92-588 | BRACKET - compressor | 1 | |
| 11 | 78-1206 | BELT | 1 | |
| 12 | 33-2882 | O-RING | 2 | |
| 13 | 61-5805 | TUBE - suction | 1 | |
| 14 | 61-5804 | TUBE - discharge | 1 | |
| 15 | 22-1120 | BRACKET - manifold hold down | 1 | |
| 16 | 55-9484 | SCREW - bracket | 1 | |
| 17 | 91-758 | CLAMP - tube (.625 id) | 1 | |
| 55-6389 | CLAMP - tube (.5 id) | 1 | ||
| 55-8316 | SCREW - clamp | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 18 | 33-2115 | O-RING (5/8 id) | 2 | |
| 19 | 33-566 | O-RING (1/2 id) | 9 | |
| 20 | 99-6093 | MOUNT - cable tie | 4 | |
| 55-3101 | RIVET - mount | 4 | ||
| 21 | 92-9422 | GUARD - belt | 1 |
