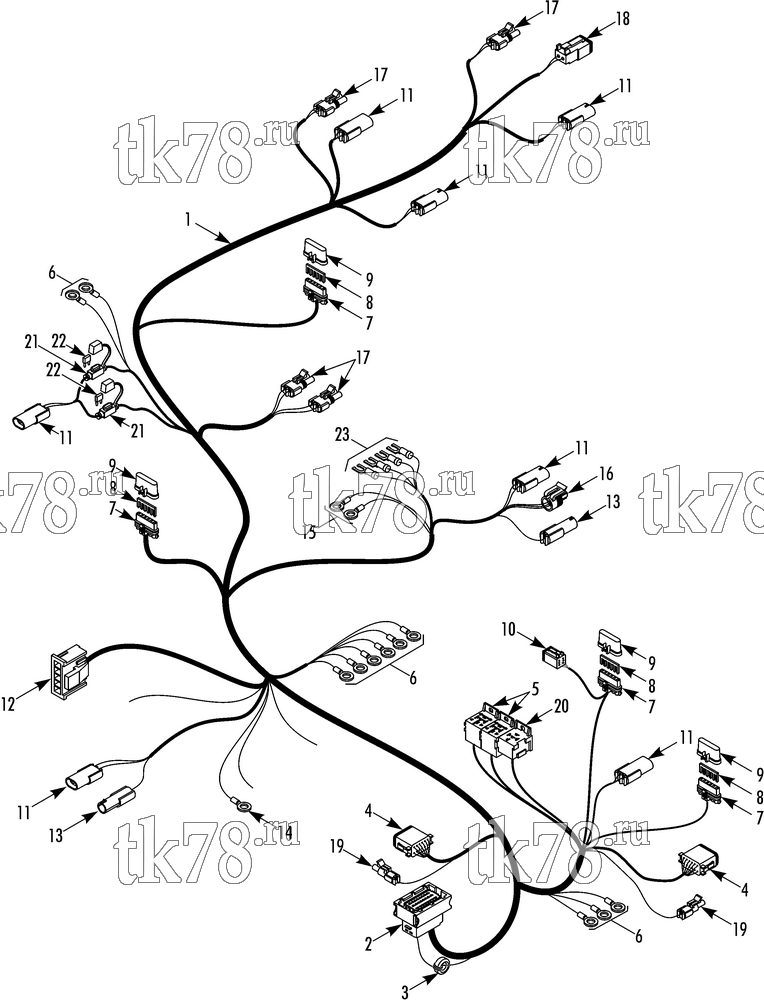

Установкa Thermo King V-520 RT SPECTRUM схема MAIN HARNESS V-520 RT 20 & 50 UNITS – 255D5
Обновление от: 4/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-298 | HARNESS - main (20 & 50 units) | 1 | |
| 2 | 41-5794 | CONNECTOR - 24-pin (female, uP1 - connection 1) | 1 | |
| 41-5792 | WEDGE - 24-pin | 1 | ||
| 41-6506 | TERMINAL - 1.5 MM | 12 | ||
| 41-6541 | TERMINAL - 2.8 MM | 3 | ||
| 41-6540 | TERMINAL - 1.5 MM | 1 | ||
| 3 | 41-8545 | FERRITE - torrid | 1 | |
| 4 | 44-9600 | PLUG - 12-pin (male, uP1 - connection 2) | 2 | |
| 44-9601 | WEDGE - 12-pin | 2 | ||
| 44-9587 | SOCKET - 18 ga | 6 | ||
| 44-9593 | SOCKET - 14-16 ga | 18 | ||
| 5 | 41-5800 | RELAY - holder | 2 | |
| 6 | 44-2793 | TERMINAL - ring (yellow 1/4, 10-22 ga) | 1 | |
| 41-9539 | TERMINAL - ring (blue #8-10, 6 ga), | 2 | ||
| 41-9494 | TERMINAL - ring (blue 1/4, 6 ga) | 2 | ||
| 44-2789 | TERMINAL - ring (blue 1/4,16-14 ga) | 5 | ||
| 44-7245 | TERMINAL - ring (red #10, 22-16 ga) | 2 | ||
| 44-2789 | TERMINAL - ring (red 1/4, 22-16 ga) | 1 | ||
| 7 | 41-1789 | CONNECTOR - 6-pin (see 115D14 for terminals) | 4 | |
| 41-1790 | LOCK - secondary | 4 | ||
| 8 | 41-1788 | BUSBAR | 4 | |
| 44-7812 | PLUG - cavity | 5 | ||
| 9 | 41-1787 | COVER | 4 | |
| 10 | 44-8920 | PLUG - 6-pin (for terminals see 112D9) | 1 | |
| 11 | 44-5835 | CONNECTOR - 2-pin (female) | 7 | |
| 44-5883 | TERMINAL - 20-18 ga | 14 | ||
| 12 | 41-5804 | CONNECTOR - 5-pin (cab controller) | 1 | |
| 41-5805 | RETAINER - 5-pin | 1 | ||
| 41-6451 | TERMINAL - 2.5 MM | 5 | ||
| 13 | 44-7330 | CONNECTOR - shroud (1-pin) | 2 | |
| 41-6558 | TERMINAL - fingrip | 2 | ||
| 14 | 41-6709 | TERMINAL - CH (ground lug, 3/8 8 ga) | 1 | |
| 41-9214 | TERMINAL - battery | 1 | ||
| 15 | 44-7245 | TERMINAL - ring (liquid inj solenoid, 10 22-16 ga) | 2 | |
| 16 | 41-5799 | CONNECTOR - transducer (3-pin female) | 1 | |
| 41-7747 | TERMINAL | 3 | ||
| 41-5799 | SEAL - terminal | 3 | ||
| 17 | 44-5838 | CONNECTOR - 2-pin (male, see 115D14 for terminals) | 4 | |
| 18 | 44-9585 | PLUG - 2-pin (see 112D9 for terminals) | 1 | |
| 19 | 44-7327 | CONNECTOR - tower (1-pin) | 2 | |
| 20 | 44-5537 | SOCKET - relay | 1 | |
| 21 | 41-3074 | HOLDER - fuse | 2 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 22 | 41-4551 | FUSE - mini (5 amp) | 2 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 23 | 44-2788 | TERMINAL - fork (red #8, 22-16 ga) | 4 |
