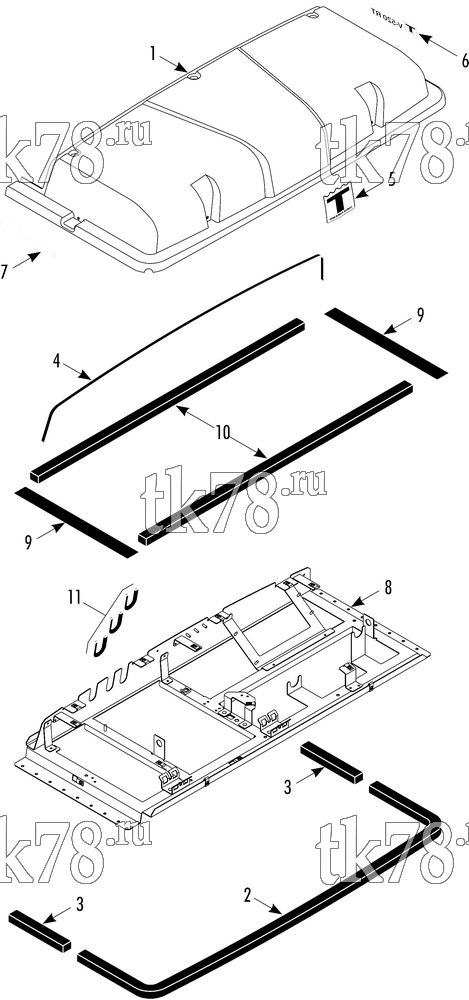

Установкa Thermo King V-520 RT SPECTRUM схема REFRIGERATION MODULE FRAME & COVER – 251F2
Обновление от: 4/18/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8759 | COVER | 1 | |
| 55-9761 | SCREW - cover | 7 | ||
| 2 | 33-4794 | GASKET - cover (1.25 x 1.25 x 63.5 in) | 1 | |
| 3 | 33-4794 | GASKET - cover (1.25 x 1.25 x 63.5 in cut to 8 in) | A/R | |
| 4 | 33-4795 | GASKET - cover | 1 | |
| 5 | 92-8668 | NAMEPLATE - TK | 1 | |
| 6 | 92-9089 | NAMEPLATE - V-520 RT | 1 | |
| 7 | 92-7367 | NAMEPLATE - IR Logo | 1 | |
| 8 | 98-8760 | FRAME - base (10 units) | 1 | |
| 98-8762 | FRAME - base (30 units) | 1 | ||
| 98-8824 | FRAME - base (20, 50 & SPECTRUM units) | 1 | ||
| 9 | 33-4796 | GASKET - frame | 2 | |
| 10 | 33-4794 | GASKET - frame (1.25 x 1.25 x 63.5 in cut to 39 in) | A/R | |
| 11 | 33-4797 | GASKET | 3 |
