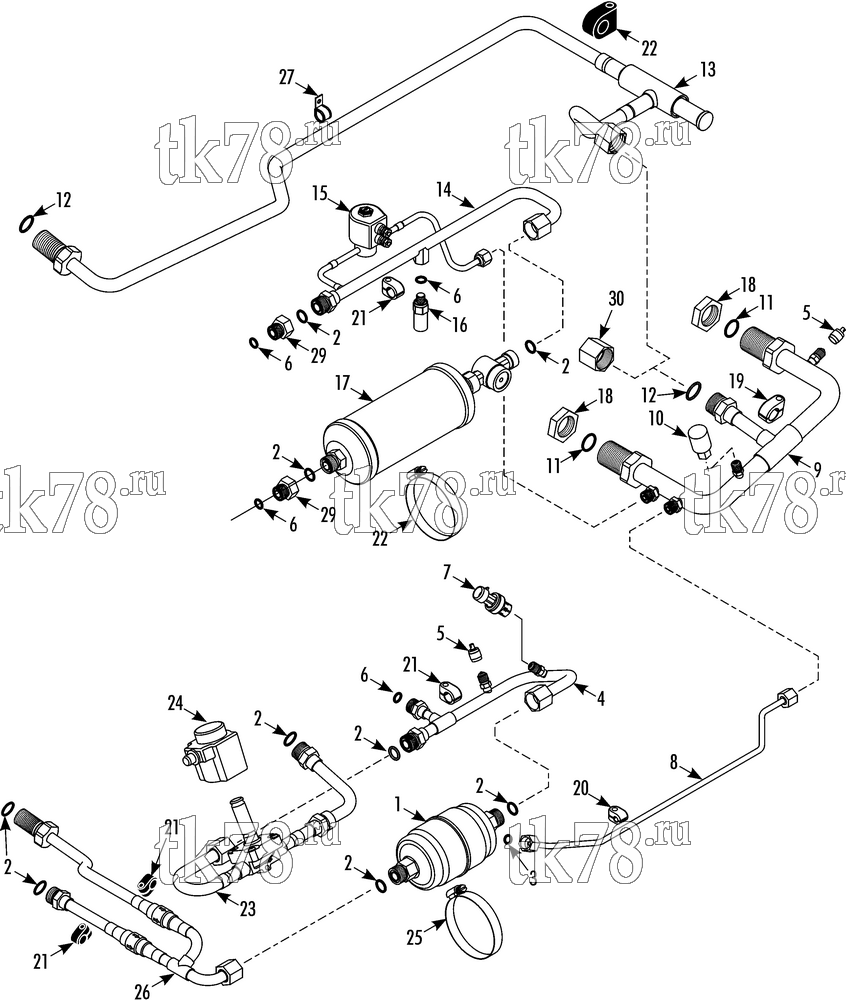

Установкa Thermo King V-520 RT SPECTRUM схема REFRIGERATION MODULE V-520 – 251F1
Обновление от: 8/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 2 | 33-566 | O-RING (1/2 id) | 10 | |
| 3 | 33-1461 | O-RING (5/16 id) | 2 | |
| 4 | 61-5641 | TUBE - oil suction | 1 | |
| 66-9842 | VALVE - service port (Schrader) | 2 | ||
| 5 | 61-468 | CAP - valve | 2 | |
| 6 | 33-1015 | O-RING (3/8 id, #6) | 4 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 8 | 61-5639 | TUBE - separator to suction tube (oil return) | 1 | |
| 9 | 61-5642 | TUBE - suction | 1 | |
| 61-403 | VALVE - service port (Schrader) | 2 | ||
| 10 | 44-8030 | SWITCH - lpco | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 11 | 33-1222 | O-RING (3/4 id) | 2 | |
| 12 | 33-2115 | O-RING (5/8 id) | 2 | |
| 13 | 61-5802 | TUBE - suction, standby (20 & 50 units) | 1 | |
| 08-254 | REGULATOR - suction pressure | 1 | ||
| 14 | 61-5640 | TUBE & SOLENOID VALVE (10 & 20 units) | 1 | |
| 61-5759 | TUBE & SOLENOID VALVE (w/ check valve, 30 & 50 units) | 1 | ||
| 15 | 66-5908 | SOLENOID - pilot (liquid injection, 12V) | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-5047 | COIL (12V) | 1 | ||
| 61-1235 | VALVE - check | 1 | ||
| 16 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 17 | 61-5212 | DEHYDRATOR (includes sight glass) | 1 | |
| 18 | 55-6812 | NUT - bulkhead | 2 | |
| 19 | 91-758 | CLAMP - tube (.625 id) | 1 | |
| 20 | 55-6544 | CLAMP - tube (.25 id) | 1 | |
| 21 | 55-6389 | CLAMP - tube (.50 id) | 4 | |
| 22 | 91-372 | CLAMP - tube (.75 id) | 1 | |
| 55-7372 | SCREW - clamp (30mm) | 1 | ||
| 55-8464 | SCREW - clamp (35mm) | 4 | ||
| 55-8316 | SCREW - clamp (40mm) | 1 | ||
| 55-7027 | SCREW - clamp (45mm) | 1 | ||
| 55-6996 | LOCKWASHER | 7 | ||
| 55-7075 | FLATWASHER | 7 | ||
| 51-2607 | NUT - speed (M6) | 7 | ||
| 23 | 61-5643 | TUBE - hot gas w/valve (30 & 50 units) | 1 | |
| 66-9032 | VALVE - solenoid (see 193A5) | 1 | ||
| 24 | 41-5789 | COIL - solenoid (30 & 50 units) | 1 | |
| 25 | 55-6225 | CLAMP | 2 | |
| 26 | 61-5803 | TUBE - discharge, standby (20 & 50 units) | 1 | |
| 61-1235 | VALVE - check | 2 | ||
| 55-6393 | NUT - bulkhead (13/16-16) | 1 | ||
| 55-6811 | NUT - bulkhead (1-14) | 1 | ||
| 27 | 51-663 | CLAMP - tube (.625 id) | 1 | |
| 29 | 61-6075 | ADAPTER - reducer | 2 | |
| 30 | 51-1655 | CAP - brass (used on 10 & 30 units) | 1 |
