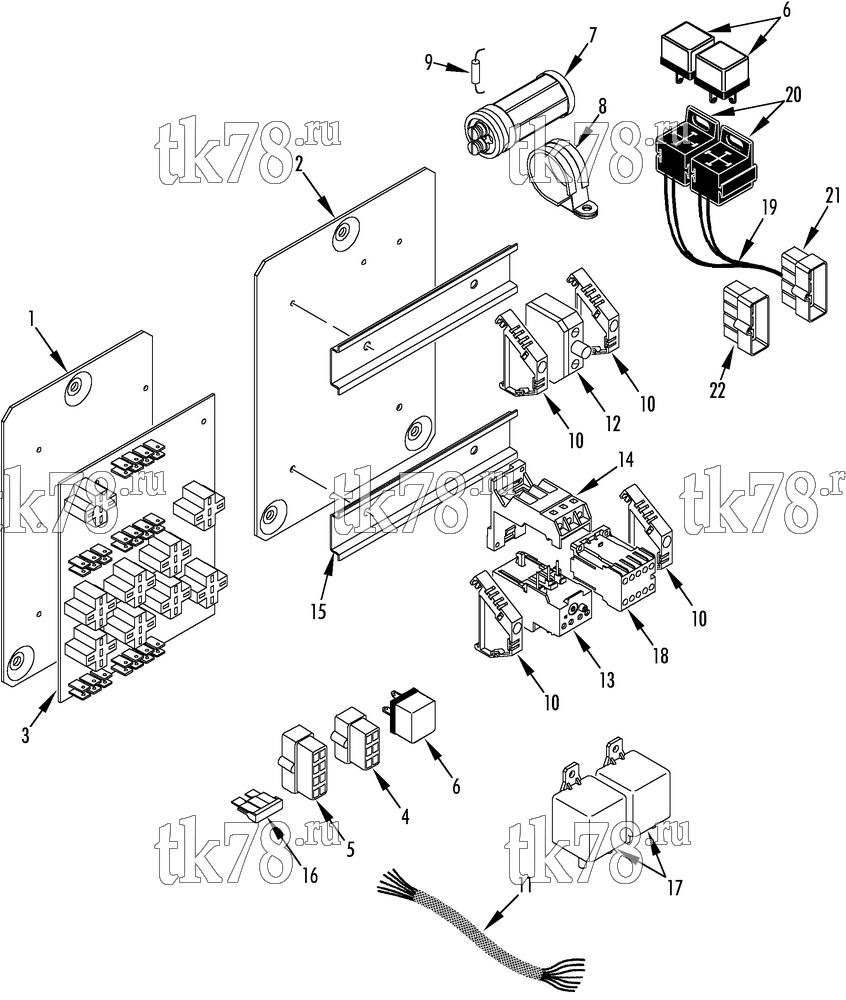

Установкa Thermo King V-500 & V-500 MAX схема CONTROL BOX (V-500/400 20) – 172H6
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-1899 | BRACKET - control box | 1 | |
| 2 | 92-2354 | BRACKET - control box | 1 | |
| 55-7089 | FLATWASHER | 6 | ||
| 55-7404 | LOCKWASHER | 6 | ||
| 55-7367 | NUT | 6 | ||
| 3 | 41-4372 | BOARD - printed circuit (N20.1) | 1 | |
| 55-9620 | SCREW - board | 8 | ||
| 4 | 41-876 | CONNECTOR (6-pin) | 4 | |
| 5 | 41-946 | CONNECTOR (8-pin) | 4 | |
| 6 | 41-895 | RELAY (12V) | 9 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 41-3707 | RELAY (24V) | 9 | ||
| 7 | 41-3787 | CAPACITOR (12V) | 2 | |
| 41-2992 | CAPACITOR (24V) | 2 | ||
| 41-3134 | JUMPER - capacitor | 1 | ||
| 8 | 55-9494 | CLAMP - capacitor | 1 | |
| 55-7075 | FLATWASHER | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 9 | 44-9925 | RESISTOR | 1 | |
| 10 | 41-898 | CONNECTOR - end | 2 | |
| 11 | 41-4616 | HARNESS - control box | 1 | |
| 41-4494 | TERMINAL (female) | A/R | ||
| 41-4496 | TERMINAL - socket (10 amp, 16 ga) | A/R | ||
| 44-2788 | TERMINAL - fork (16-22 ga) | A/R | ||
| 44-2792 | TERMINAL - ring (#10, yellow) | A/R | ||
| 44-2793 | TERMINAL - ring (1/4, yellow) | A/R | ||
| 12 | 41-942 | CONNECTOR - fuse | 1 | |
| 41-3661 | FUSE (4 amp) | 1 | ||
| 13 | 41-3091 | RELAY - overload (10 to 16 amp, 230/3/60) | 1 | |
| 41-3135 | RELAY - overload (5.5 to 8.5 amp, 380/3/50) | 1 | ||
| 14 | 41-3099 | SOCKET - circuit breaker | 1 | |
| 15 | 92-924 | CHANNEL - din | 1 | |
| 55-9495 | RIVET - channel | 2 | ||
| 16 | 44-9344 | FUSE (15 amp, 12V unit) | 6 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 44-9758 | FUSE (10 amp, 24V unit) | 6 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-4519 | FUSE (3 amp) | 1 | ||
| 17 | 41-4667 | RELAY - battery & standby power (12V) | 2 | |
| 41-4668 | RELAY - battery & standby power (24V) | 2 | ||
| 18 | 42-271 | CONTACTOR (12V) | 1 | |
| 41-1005 | CONTACTOR (24V) | 1 | ||
| 19 | 41-4632 | HARNESS - heat option | 1 | |
| 20 | 44-5537 | SOCKET - relay | 2 | |
| 21 | 41-4493 | CONNECTOR (8-pin) | 1 | |
| 22 | 41-4519 | CONNECTOR - bridge | 1 |
