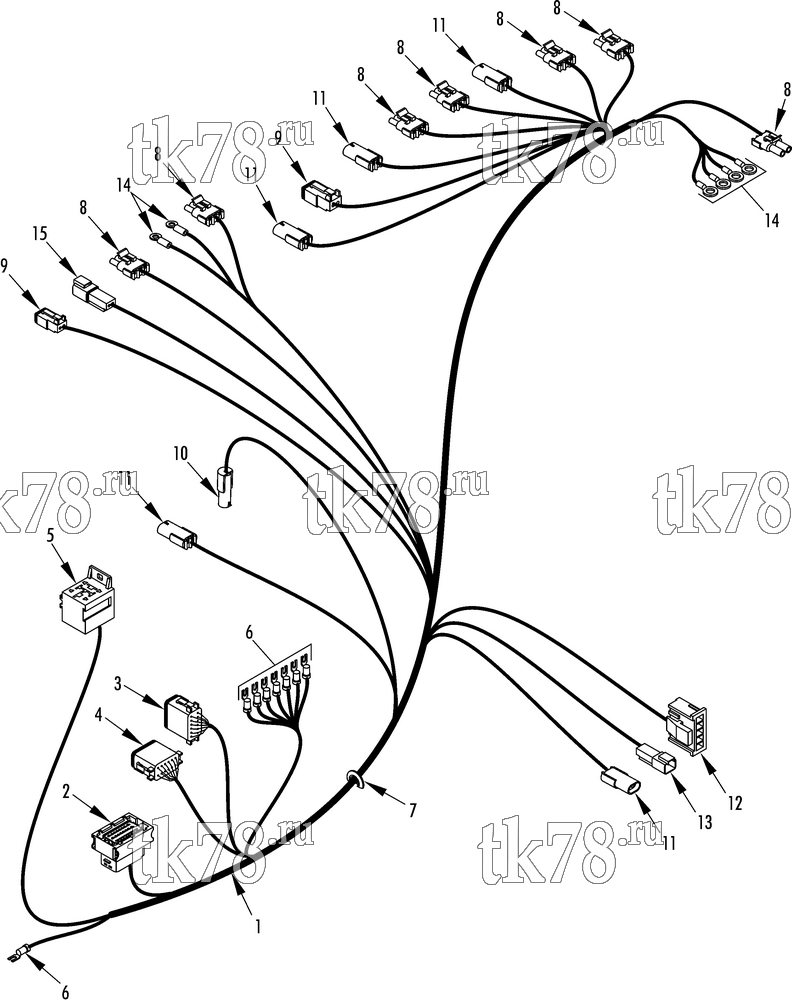

Установкa Thermo King V-500 Series DSR схема MAIN HARNESS V-400/500 10/30 – 238B0
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-6029 | HARNESS - condenser ( 400/500 10/30) | 1 | |
| 2 | 41-5794 | CONNECTOR - 24-pin (female, C-20) | 1 | |
| 41-5792 | WEDGE - 24-pin | 1 | ||
| 41-6506 | TERMINAL - 1.5 MM | 12 | ||
| 41-6541 | TERMINAL - 2.8 MM | 3 | ||
| 3 | 44-9600 | PLUG - 12-pin (male, C-19) | 1 | |
| 4 | 41-5858 | PLUG - 12-pin (male, C-21) | 1 | |
| 44-9601 | WEDGE - 12-pin | 2 | ||
| 44-9587 | SOCKET - 18 ga | 2 | ||
| 44-9593 | SOCKET - 14-16 ga | 15 | ||
| 5 | 41-5800 | HOLDER - relay | 1 | |
| 41-1760 | TERMINAL - fingrip (10-14 ga) | 1 | ||
| 41-6558 | TERMINAL - fingrip (6-10 ga) | 1 | ||
| 41-8931 | TERMINAL - fingrip (0.5-1 6.3) | 2 | ||
| 6 | 41-438 | TERMINAL - fork (16-14 ga) | 7 | |
| 7 | 33-3539 | GROMMET | 1 | |
| 8 | 44-5838 | CONNECTOR - tower (2-pin) | 7 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 6 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 4 | ||
| 9 | 44-9585 | PLUG - 2-pin | 2 | |
| 44-9586 | WEDGE - 2-pin | 2 | ||
| 44-9593 | SOCKET - 14-16 ga | 4 | ||
| 10 | 41-5799 | CONNECTOR - 3-pin (female) | 1 | |
| 41-7747 | TERMINAL | 3 | ||
| 41-5799 | SEAL - terminal | 3 | ||
| 11 | 44-5835 | CONNECTOR - 2-pin (female) | 5 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 10 | ||
| 12 | 41-5804 | CONNECTOR - 5-pin (cab controller) | 1 | |
| 41-5805 | RETAINER - 5-pin | 1 | ||
| 41-6451 | TERMINAL - 2.5 MM | 5 | ||
| 13 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 41-8931 | TERMINAL - fingrip (0.5-1 6.3) | 1 | ||
| 14 | 44-2793 | TERMINAL - ring (1/4, yellow) | 5 | |
| 41-8964 | TERMINAL - ring (1/4, red) | 2 | ||
| 15 | 44-9589 | RECEPTACLE - 2-pin | 1 | |
| 44-9590 | WEDGE - 2-pin | 1 | ||
| 44-9591 | TERMINAL - pin (16-18 ga) | 2 |
