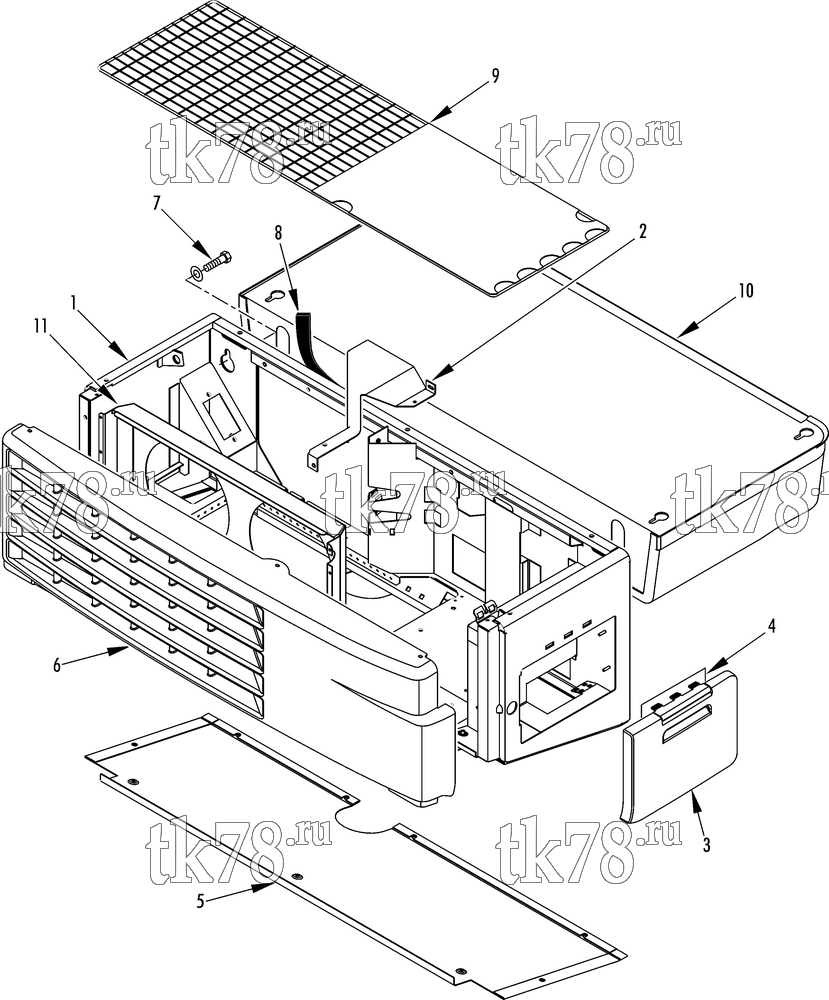

Установкa Thermo King V-500 Series DSR схема FRAME GROUP – 192H6
Обновление от: 11/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8808 | FRAME - condenser (before 5/09) | 1 | |
| 98-8270 | FRAME - condenser (5/09 & after) | 1 | ||
| 2 | 92-3848 | BRACKET - coil (before 5/09) | 1 | |
| 92-7928 | BRACKET - coil (5/09 & after) | 1 | ||
| 51-2010 | SCREW - bracket | 5 | ||
| 3 | 92-2352 | COVER - control box | 1 | |
| 4 | 92-2353 | NAMPLATE - cover instructions | 1 | |
| 5 | 98-6867 | COVER - bottom | 1 | |
| 51-2010 | SCREW - cover | 9 | ||
| 6 | 98-6357 | GRILLE - condenser | 1 | |
| 55-9964 | DRIVE - lock (cover) | 2 | ||
| 91-9991 | TAPE - sealant (3 x 10) | A/R | ||
| 91-9989 | TAPE - sealant (3 x 20) | A/R | ||
| 7 | 55-9919 | SCREW - unit to truck wall | 4 | |
| 51-793 | FLATWASHER | 4 | ||
| 55-8537 | LOCKWASHER | 4 | ||
| 55-7348 | NUT | 4 | ||
| 8 | 33-2660 | STRIP - seal | 3 | |
| 9 | 98-6866 | GRILLE - condenser (top) | 1 | |
| 55-9825 | CLAMP - grille | 6 | ||
| 51-2010 | SCREW - grille | 6 | ||
| 10 | NSS | EVAPORATOR (see 192H7) | 1 | |
| 11 | 98-8271 | HOUSING - fan (unit with micro channel coil, 5/09 & after) | 1 | |
| 55-8375 | NUT - captive | 8 |
