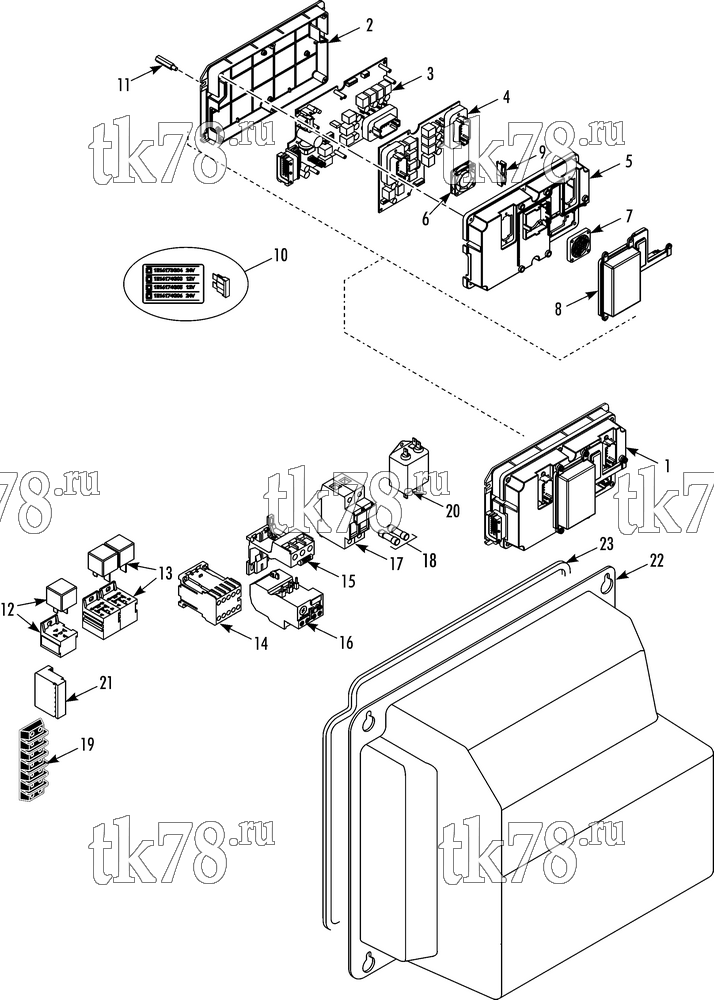

Установкa Thermo King V-500 Series DSR (Oct-2011 & after) схема CONTROL BOX DSR II – 256C5
Обновление от: 6/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2193 | MODULE - control box (requires kit 40-1182 for 24V units) | 1 | |
| 2 | 92-3470 | COVER - base | 1 | |
| 3 | NSS | BOARD - pc (platform #1) | 1 | |
| 4 | NSS | BOARD - pc (platform #2) | 1 | |
| 5 | 92-3579 | COVER - front | 1 | |
| 6 | 41-5480 | FAN - pc board | 1 | |
| 7 | 92-3472 | FILTER - fan | 1 | |
| 8 | 92-3473 | COVER - fuse access | 1 | |
| 9 | 204-1101 | PULLER - fuse | 1 | |
| 10 | 40-1182 | KIT - fuse & decal | 1 | |
| 41-3080 | FUSE (2 amp, gray) | A/R | ||
| 41-4551 | FUSE (5 amp, tan) | A/R | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4552 | FUSE (7.5 amp, brown) | A/R | ||
| 30-41-4552 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 41-4553 | FUSE (10 amp, red) | A/R | ||
| 41-4554 | FUSE (15 amp, blue) | A/R | ||
| 41-4555 | FUSE (20 amp, yellow) | A/R | ||
| 11 | 51-2165 | SPACER - panel | 4 | |
| 51-2012 | NUT - panel | 4 | ||
| 12 | 42-1148 | RELAY - C1R (12V) | 1 | |
| 42-1149 | RELAY - C1R (24V) | 1 | ||
| 44-5537 | HOLDER - relay (C1R, part of main harness) | 1 | ||
| 13 | 41-9313 | RELAY - battery & standby power (12V) | 2 | |
| 41-9314 | RELAY - battery & standby power (24V) | 2 | ||
| 41-5800 | HOLDER - relay (BART & STDBR, part of main harness) | 2 | ||
| 14 | 41-8483 | RELAY - overload (5.5-8A 400/3/50) | 1 | |
| 41-8484 | RELAY - overload (7-10A 380/3/60) | 1 | ||
| 41-8482 | RELAY - overload (12-18A 230/3/60, 230/1/50) | 1 | ||
| 41-3091 | RELAY - overload (10-16A 230/1/60) | 1 | ||
| 15 | 41-8485 | SOCKET - overload relay | 1 | |
| 16 | 42-271 | CONTACTOR (12V) | 1 | |
| 41-9244 | CONTACTOR (24V) | 1 | ||
| 17 | 41-9247 | HOLDER - fuse (2 pole) | 1 | |
| 18 | 41-9246 | FUSE (1 amp) | 2 | |
| 19 | 44-4543 | BOARD - terminal | 1 | |
| 44-2915 | STRIP - jumper | 4 | ||
| 20 | 41-9243 | FILTER | 1 | |
| 21 | 41-901 | MODULE - control | 1 | |
| 22 | 98-8769 | COVER - control box | 1 | |
| 23 | 33-4825 | GASKET - cover | 1 |
