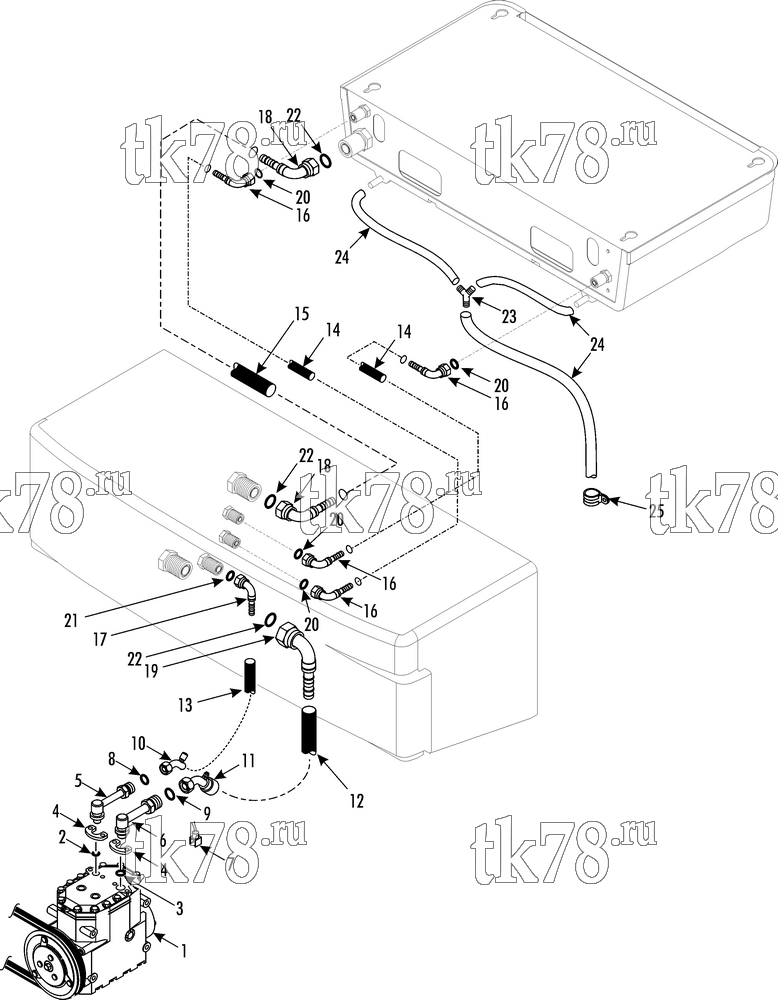

Установкa Thermo King V-500 Series DSR (Oct-2011 & after) схема HOSE GROUP V-500 MAX Plus – 256C2
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-799 | COMPRESSOR - TK 312R (12V, tube-O, see 200A7) | 1 | |
| 102-824 | COMPRESSOR - TK 312R (24V, tube-O, see 200A7) | 1 | ||
| 203-515 | OIL - compressor (solest 120, 1 liter) | A/R | ||
| 203-505 | OIL - compressor (8 oz) | A/R | ||
| 2 | 33-3721 | O-RING - discharge | 1 | |
| 3 | 33-3720 | O-RING - suction | 1 | |
| 4 | 22-1176 | FLANGE - compressor | 2 | |
| 51-376 | SCREW - flange | 4 | ||
| 5 | 22-1321 | CONNECTOR - discharge (tube-O) | 1 | |
| 6 | 22-1320 | CONNECTOR - suction (tube-O) | 1 | |
| 7 | 44-9020 | SWITCH - thermo | 1 | |
| 8 | 33-2350 | O-RING - discharge (7/16 id) | 1 | |
| 9 | 33-672 | O-RING - suction (9/16 id) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 10 | 51-2444 | FITTING - 45 deg (tube-O, w/ charging port, #10) | 1 | |
| 11 | 51-1781 | FITTING - hose (45 deg, #16) | 1 | |
| 12 | 61-3048 | HOSE - refrigeration (compressor suction, #16 x 30 ft) | 1 | |
| 67-2192 | HOSE - refrigeration (compressor suction, #16 x 300 ft) | A/R | ||
| 13 | 61-637 | HOSE - refrigeration (compressor discharge, #10) | 1 | |
| 14 | 67-1708 | HOSE - refrigeration (hot gas & liquid, #6, see 165D6) | 2 | |
| 15 | 67-1711 | HOSE - refrigeration (suction, #12) | 1 | |
| 16 | 51-2436 | FITTING - liquid & hot gas (90 deg, #6) | 4 | |
| 17 | 51-1807 | FITTING - discharge (90 deg, #10 hose, #8 fitting) | 1 | |
| 18 | 51-2433 | FITTING - suction (90 deg, #12) | 2 | |
| 19 | 51-1650 | FITTING - suction (90 deg, #16 hose, #12 fitting) | 1 | |
| 20 | 33-1015 | O-RING (3/8 id, #6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 21 | 33-566 | O-RING (1/2 id, #8) | 1 | |
| 22 | 33-1222 | O-RING (3/4 id, #12) | 3 | |
| 23 | 55-9258 | CONNECTOR - drain (Y, black) | 1 | |
| 92-3476 | CONNECTOR - drain (Y, white) | 1 | ||
| 24 | 92-3469 | HOSE - drain | A/R | |
| 25 | 92-3842 | CLAMP (30 mm) | 6 | |
| 92-1903 | CLAMP (22 mm) | 4 | ||
| 92-3841 | CLAMP (18 mm) | 3 | ||
| 51-792 | SCREW - clamp | 15 |
