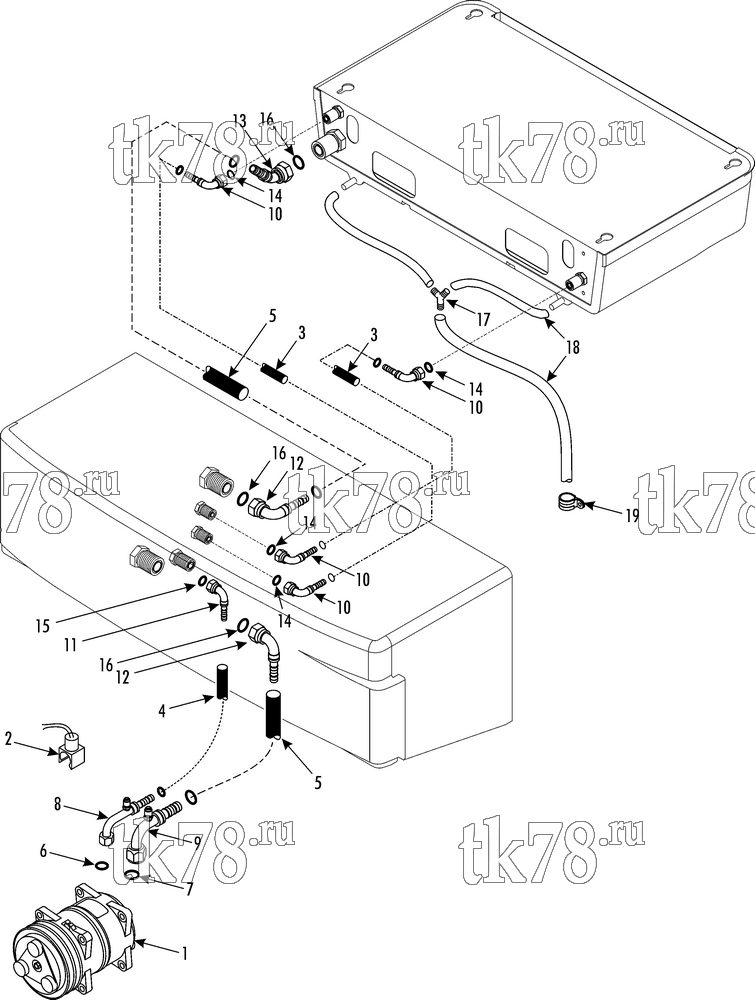

Установкa Thermo King V-500 Series DSR (Oct-2011 & after) схема HOSE GROUP V-500 & V-500 MAX – 256C1
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-842 | COMPRESSOR - TM16-XD (12V, see 133F14) | 1 | |
|
10-TM-16 | Компрессор, TM-16, 12V 2A, R134A/R404A | 22 740 ₽ |
|
| 107-241 | CLUTCH (12V, 2A groove) | 1 | ||
|
10-107-241 | Сцепление/муфта электромагнитная, 2A/12V | 6 470 ₽ |
|
| 102-843 | COMPRESSOR - TM16-XD (24V, see 133F14) | 1 | ||
|
10-TM-16-24 | Компрессор, TM-16, 24V 2A, R134A/R404A | 22 740 ₽ |
|
| 107-242 | CLUTCH (24V, 2A groove) | 1 | ||
|
10-107-242 | Сцепление/муфта электромагнитная, 2A/24V | 10 310 ₽ |
|
| 203-515 | OIL - compressor (solest 120,1 liter) | A/R | ||
| 203-505 | OIL - compressor (8 oz) | A/R | ||
| 2 | 44-9020 | SWITCH - thermo (MAX units) | 1 | |
| 3 | 67-1708 | HOSE - refrigeration (hot gas & liquid, #6, see 165D6) | A/R | |
| 4 | 67-1709 | HOSE - refrigeration (discharge, #8) | A/R | |
| 5 | 67-1711 | HOSE - refrigeration (suction, #12) | A/R | |
| 6 | 33-2350 | O-RING - discharge (7/16 id) | 1 | |
| 7 | 33-672 | O-RING - suction (9/16 id) | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 8 | 51-2432 | FITTING - discharge (tube-O, #8, see 165D6) | 1 | |
| 9 | 51-2462 | FITTING - suction (tube-O, #12, see 165D6) | 1 | |
| 10 | 51-2436 | FITTING - liquid & hot gas (90 deg, #6) | 3 | |
| 11 | 51-2423 | FITTING - discharge (90 deg, #8) | 1 | |
| 12 | 51-2433 | FITTING - suction (90 deg, #12) | 2 | |
| 13 | 55-9987 | FITTING - suction (45 deg, #12) | 1 | |
| 14 | 33-1015 | O-RING (3/8 id, #6) | 3 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 15 | 33-566 | O-RING (1/2 id, #8) | 1 | |
| 16 | 33-1222 | O-RING (3/4 id, #12) | 2 | |
| 17 | 55-9258 | CONNECTOR - drain (Y, black) | 1 | |
| 92-3476 | CONNECTOR - drain (Y, white) | 1 | ||
| 18 | 92-3469 | HOSE - drain | A/R | |
| 19 | 92-3842 | CLAMP (30 mm) | 6 | |
| 91-6690 | CLAMP (22 mm) | 4 | ||
| 92-3841 | CLAMP (18 mm) | 3 | ||
| 51-792 | SCREW - clamp | 13 |
