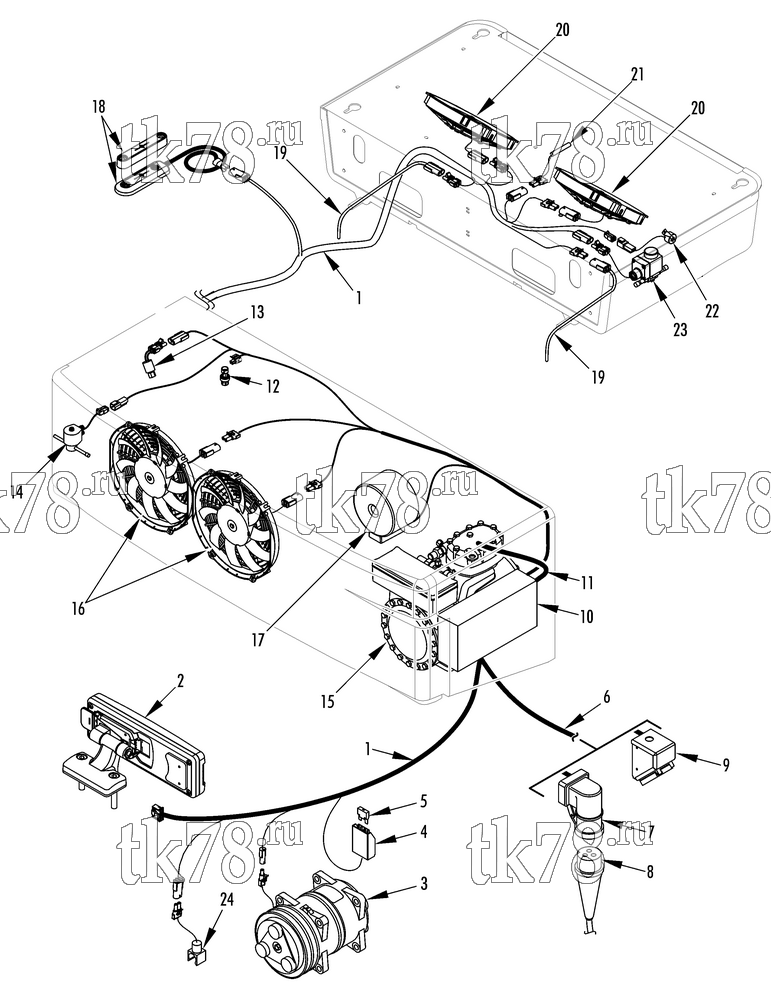

Установкa Thermo King V-500 Series DSR (Oct-2011 & after) схема ELECTRICAL COMPONENTS (V-400/500 20/50) – 256B6
Обновление от: 8/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-231 | HARNESS - condenser (DSR II, see 256B7) | 1 | |
| 42-1072 | HARNESS - condenser (DSR III, see 256B7) | 1 | ||
| 2 | 45-2072 | CONTROLLER - in-cab (see 191A6) | 1 | |
| 3 | NSS | COMPRESSOR - TM15-XD (V-400, see 169C2) | 1 | |
| NSS | COMPRESSOR - TM16-XD (V-500, see 133F14) | 1 | ||
| 4 | 41-5785 | HOLDER - fuse | 1 | |
| 44-2792 | TERMINAL (#10) | 2 | ||
| 5 | 41-7420 | FUSE (50 amp) | 1 | |
|
30-41-7420 | Предохранитель 50А | 840 ₽ |
|
| 6 | 41-6032 | CABLE - mains (power socket to unit, 3 phase) | 1 | |
| 7 | 41-978 | RECEPTACLE - power (380/3/50, mates w/ 41-2026) | 1 | |
| 41-8941 | RECEPTACLE - power (400/3/50 - 5 pole, mates w/ 41-8942) | 1 | ||
| 41-8278 | RECEPTACLE - power (230/1/50) | 1 | ||
| 55-9502 | SCREW - receptacle | 4 | ||
| 8 | 41-2026 | PLUG - power (380/3/50, mates w/ 41-978) | 1 | |
| 41-8942 | PLUG - power (400/3/50 - 5 pole, mates w/ 41-8941) | 1 | ||
| 41-8279 | PLUG - power (230/1/50) | 1 | ||
| 9 | NSS | BOX - receptacle (60 Hz units, see 200F4) | 1 | |
| 10 | NSS | BOX - control (see 256C5) | 1 | |
| 11 | 42-232 | CABLE - control box to compressor (230/1/50-60) | 1 | |
| 42-233 | CABLE - control box to compressor (400/3/50) | 1 | ||
| 92-6945 | NAMEPLATE - 400V/230V | 1 | ||
| 42-234 | CABLE - control box to compressor (230/380/3/60) | 1 | ||
| 12 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 13 | 44-8030 | SWITCH - low pressure cutout | 1 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 14 | 66-7636 | SOLENOID - liquid injection (12V) | 1 | |
|
10-66-7636 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 33 380 ₽ |
|
|
PP-61-8938 | Пилот соленоид с катушкой 12V, SB/SL/SLe/SLX/SLXe/SMX-II/V-Series | 13 390 ₽ |
|
| 41-1521 | COIL (12V) | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 61-2520 | SOLENOID - liquid injection (24V) | 1 | ||
|
61-2520 OEM | Клапан с катушкой 24V, V-Series | 28 690 ₽ |
|
| 44-6158 | COIL (24V) | 1 | ||
| 15 | 102-832 | COMPRESSOR (D 2 13 Y 3 ph 50 Hz, see 256B9) | 1 | |
| 16 | 78-1375 | FAN - condenser (12V) | 2 | |
| 10-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 10 220 ₽ |
|
|
| PP-78-1375 | Вентилятор конденсатора 12V, V/C-Series | 4 690 ₽ |
|
|
| 78-1376 | FAN - condenser (24V) | 2 | ||
|
10-78-1376 | Вентилятор конденсатора 24V, V-Series | 11 710 ₽ |
|
|
PP-78-1376 | Вентилятор конденсатора 24V, V-Series | 4 530 ₽ |
|
| 17 | 41-7943 | TRANSFORMER (see 193A0) | 1 | |
| 18 | 40-907 | SWITCH - door | 1 | |
| 51-792 | SCREW - switch | 4 | ||
| 19 | 41-9627 | HEATER - drain tube (12V) | 2 | |
| 41-3156 | HEATER - drain tube (24V) | 2 | ||
| 20 | 78-1373 | FAN - evaporator (12V, ES400 qty 2 - ES500 qty 3) | A/R | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
| 78-1374 | FAN - evaporator (24V, ES400 qty 2 - ES500 qty 3) | A/R | ||
| 10-78-1374 | Вентилятор испарителя 24V, V/C-Series | 9 820 ₽ |
|
|
|
PP-78-1374 | Вентилятор испарителя 24V, V/C-Series | 5 670 ₽ |
|
| 21 | 41-5784 | SENSOR - temperature | 1 | |
| 42-3067 OEM | Датчик температуры, V-Series | 12 360 ₽ |
|
|
| 10-42-3067 | Датчик температуры, V-Series | 9 420 ₽ |
|
|
| 22 | 41-3136 | SWITCH - defrost termination | 1 | |
| 51-2071 | SCREW - switch | 2 | ||
| 23 | 66-7878 | SOLENOID - base (hot gas) | 1 | |
| 41-5789 | COIL - hot gas valve (12V) | 1 | ||
| 41-5791 | COIL - hot gas valve (24V) | 1 | ||
|
10-41-5791 | Катушка соленоида 24V, V-Series | 4 760 ₽ |
|
| PP-41-5791 | Катушка соленоида 24V, V-Series | 1 830 ₽ |
|
|
| 61-6110 | VALVE - solenoid (after Jul 12, see 269A7) | 1 | ||
| 24 | 44-9020 | SWITCH - thermo | 1 |
